Dongfeng 8000l 130 Or 190hp Fire Water Tanker Truck With Fire Fun Jetting Range 55m
water tank fire truck modified by Dongfeng Tianjin series chassis. The whole vehicle is composed of two parts: firefighter cabin and body. The cabin is changed from single row to double row. 3+3 people, the car has a built-in tank structure, the front of the body is the equipment box, the middle is the water tank, and the rear is the pump room.
Description FEEDBACK
Dongfeng 8000l 130 Or 190hp Fire Water Tanker Truck With Fire Fun Jetting Range 55m

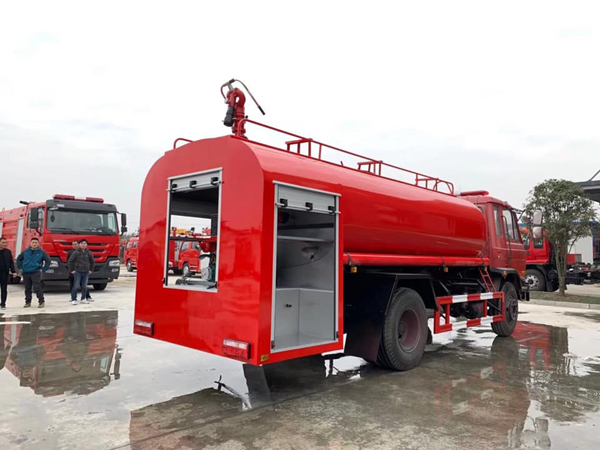

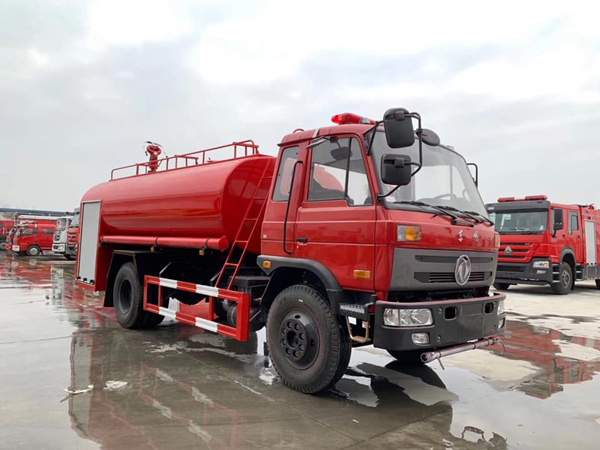

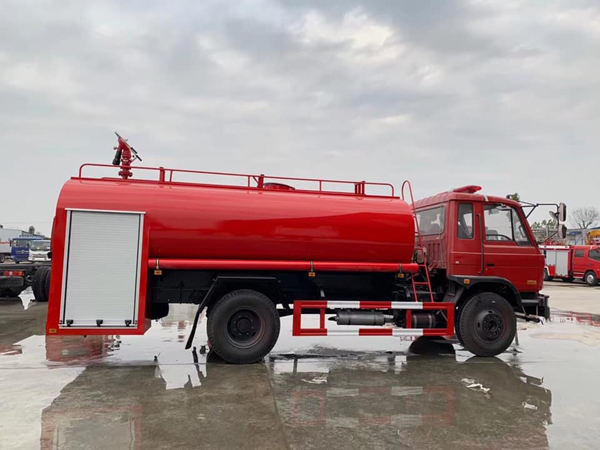

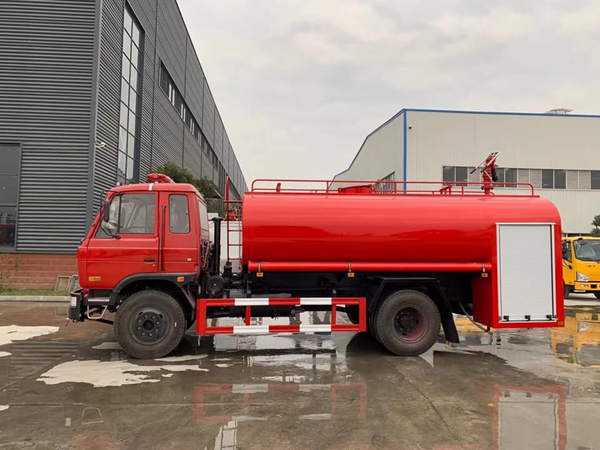

 is a water tank fire truck modified by Dongfeng Tianjin series chassis. The whole vehicle is composed of two parts: firefighter cabin and body. The cabin is changed from single row to double row. 3+3 people, the car has a built-in tank structure, the front of the body is the equipment box, the middle is the water tank, and the rear is the pump room.
The liquid-carrying tank is made of high-quality carbon steel, and is elastically connected to the chassis. It carries 8000 to 10000kg of water. It is equipped with CB10/40 low-pressure fire pump produced by Shanghai Rongshen Fire Equipment Co., Ltd., with a rated flow of 40L/S. The roof is installed on Chengdu West PS40W vehicle fire monitor produced by Fire Fighting Machinery Co., Ltd. The biggest feature of this car is its large liquid carrying capacity, good handling and easy maintenance. It can be widely used in public security fire brigade, factories and mines, communities, docks and other places to fight large-scale general material fires.


General Technical Parameters



Overall Dimension

7700*2500*3200(mm)



Gross Vehicle Weight

15800(Kg)



Curb Weight

6750(Kg)



Chassis Specification



Chassis Brand

Dongfeng



Drive model

4*2



Cabin

Single, Left Hand Driving



Number of Passengers

3 (2 in cabin, 1 in working platform)



Engine

Model

ISB190, 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling



Power

140KW/190HP



Emission standard

EURO 2



Displacement

5900(ml)



Fuel type

Diesel



Gearbox

5Forwards & 1Reverse



Brake System

Air break



Wheel Base

4500(mm)



Front/Rear Axle Loading

4500/9000(Kg)



Tire

9.00R20, 6pcs + 1 spare tire



Max Driving Speed

90(km/h)



Superstructure Specification

Water Tanker

Dimension

4200*2200*1500(mm)

Material

Q235B carbon steel

Tanker volume

10000Liter

Thickness of Tanker

4mm

Water Pump Material

carbon steel

Vertical suction

10m

Sprinkling width

25m

Range of Water Gun

60m

Pump Flow

20m³/h

Range of Water Pump

90m

Other Configuration

High quality vacuum pump, power take off, ball valves, filter screen, water hoses, sprinkler device, manhole, fense&ladder, vice-beams, anti-wave clapboard, metering tube, etc.

Options

Caution light, inlet valve, medicine tray, pneumatic valve, cylinder, sprayer, etc.
