Dongfeng DFAC Cummins Engine 5cbm Foam Tank Fire Fighting Special Equipment Truck
The fire engine is also called fire engine, fire truck, fire fighting truck, fire fighting water pump truck, pump fire truck, etc. As a professional fire engine truck manufacturer in China,the fire truck for sale are water tanker fire truck, foam fire truck, emergency rescue fire truck,etc.
Description
Get quotation

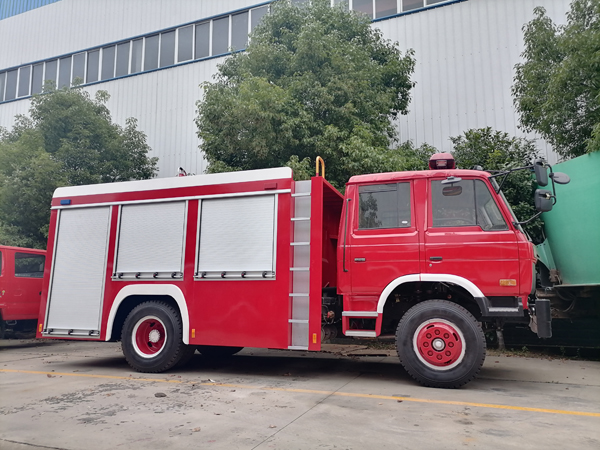

Dongfeng DFAC Cummins Engine 5cbm Foam Tank Fire Fighting Special Equipment Truck
The fire engine is also called fire engine, fire truck, fire fighting truck, fire fighting water pump truck, pump fire truck, etc. As a professional fire engine truck manufacturer in China,
the fire truck for sale are water tanker fire truck, foam fire truck, emergency rescue fire
truck,etc.
The fire truck are how fire fighting truck, Dongfeng fire fighting truck, JAC fire fighting truck, etc. It is max. keeping the original capability of chassis and have the advantage of the
advanced technology,reliable capability, easily operate and so on. The fire truck is the perfect
fire fighting equipment for special fire team.
The fire fighting tanker truck is consisted of truck chassis, water tank, fire pump, fire monitor,
pipeline system, sandwich power take off, storage compartment, electric system,etc. We have
mini fire engine truck, heavy duty fire engine truck.
Dongfeng DFAC Cummins Engine 5cbm Foam Tank Fire Fighting Special Equipment Truck
1.The special part of fire fighting truck include Liquid tanker, pump compartment, equipment compartment, pipe system, electrical system and so on.
2.The fire truck is double integral structure, broad view, 5 to 6 passengers, the fire fighting truck
can be put the fire during driving, long range, fire fighting force.
3.The tank inner is with anti-wave plate and tank top is anti-skid checkered plate. Also, the
manhole is with fast lock setup and open device.
4.optional: normal fire pressure pump, middle-low pressure fire pump, high-low pressure fire
pump.
5.The compartment using high-quality steel, high strength aluminum alloy profiles, inner and
outside using corrugated aluminum, multi-channel inside of tanker body.
6.Perfect electrical equipment:cab top alarm lamp, courtesy lamp, both sides flashing light, 100wsiren, vacuum gage, pressure gage, content gage, etc.
Dongfeng DFAC Cummins Engine 5cbm Foam Tank Fire Fighting Special Equipment Truck
| Product name | Fire fighting truck | |
| Brand | CLW | |
| Model | CLW5140GXFSG50 | |
| Overall dimension | 8030*2490*3250mm | |
| Tank specification | ||
| Tank material | Q235 High Stength Carbon Steel | |
| Transmitter | Water | Foam |
| Tank capacity | 3500L | 1500L |
| Tank dimension | 2340*1600*1400mm | |
| Tank thickness | 4.5mm | |
| Chassis specification | ||
| Chassis brand | Dongfeng | |
| Chassis model | Dongfeng 145/Dongfeng 153 | |
| Engine model | ISD190 40 | |
| Gearbox | 5 forward, 1 reverse | |
| Driving mode | Left Hand Drive/Right Hand Drive | |
| Fuel type | Diesel | |
| Dimension | 2340X1600X1400mmm | |
| Wheel base | 3950mm | |

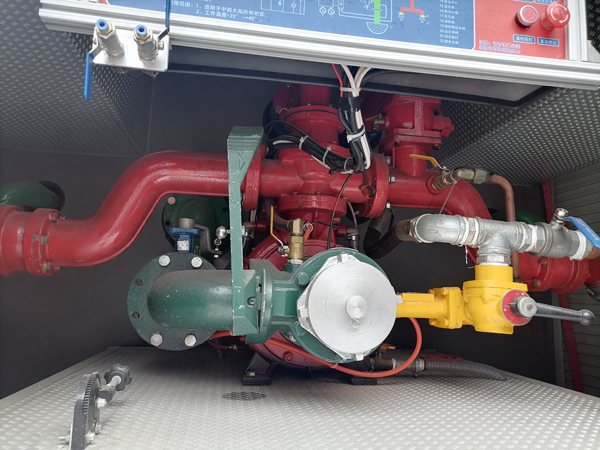

| Fire pump | ||
| Model | CB10/40 | |
| Flow (L/s) | Low pressure | 40L/S (3190r/min) |
| Medium pressure | 20L/S(3200r/min) | |
| Outlet pressure | Low pressure | ≥1.0Mpa |
| Medium pressure | ≥2.0Mpa | |
| Water intake device | water pump type | Double piston vacuum pump |
| Water intake time | ≤50s | |
| Water depth | 7m | |
| Maximum vacuum degree | ≥85kPa | |

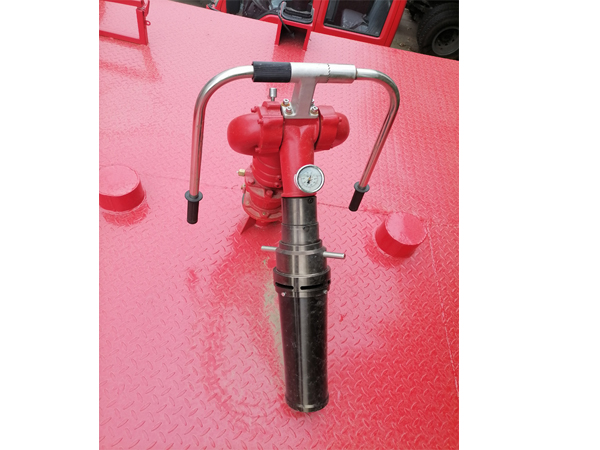

| Fire gun | Model | Water cannon PS40 |
| Work pressure | ≤1.2Mpa | |
| Flow(L/S) | Water:≥40 Foam:≥32 | |
| rated range (m) | Water:≥65 Foam:≥55 | |
