25cbm 25000 Liters Sinotruk HOWO Fuel Tank Truck Oil Truck Oil Tank Truck
Fuel tank truck: according to the different types of transport medium, configuration and different places called, there are many different titles, such as tank car, tank truck, oil truck, oil supply car, oil puller, flow refueling car, tax control refueling car, computer tanker, diesel transporter, gasoline transporter, coal tar carrier, Lubricating oil transporters, edible oil transport vehicles, crude oil transporters, heavy oil transporters, oil tanker and so on.
Description FEEDBACK

6x4 25cbm 25000 Liters Sinotruk HOWO Fuel Tank Truck Oil Truck Oil Tank Truck

Fuel tank truck: according to the different types of transport medium, configuration and different places called, there are many different titles, such as tank car, tank truck, oil truck, oil supply car, oil puller, flow refueling car, tax control refueling car, computer tanker, diesel transporter, gasoline transporter, coal tar carrier, Lubricating oil transporters, edible oil transport vehicles, crude oil transporters, heavy oil transporters, oil tanker and so on.

All the tank trucks can be designed as chemical vehicles, all kinds of heating and insulation tanks; all the tank cars can be equipped with computer tankers; wide range of tonnage selection to meet the user‘s needs; the tank has multiple anti wave baffles. High pressure gas leakage test is used to make the tank body with high strength, stable center of gravity and safe and stable transportation of vehicles.

1. Sinotruck Chassis, with advanced technology and reliable performance.
2, Two options, elliptical or circular rectangular structure, through three-dimensional design, the use of advanced processing technology to complete.
3. The tank body is made of high quality carbon structural steel plate rolled and welded. The standard ends are used at both ends, and the optimized variable cross-section longitudinal beams are below the tank body.
4. The series of oil trucks are used by the company‘s mature semi trailer technology, choose the full bearing, half bearing and other structures, and add the pipeline system and pipe box to the outside of the tank. It is suitable for the transportation of large and medium tonnage oil.


ITEM

UNIT

PARAMETER

Vehicle



Fuel tank truck

Overall dimension

mm

9800x2500x3300

GVW

kg

Appro×33170

Curb weight



Appro×12170

Payload



Appro×21000

Wheel base

mm

4600+1350

F/R track base



2022/1830

Approach/departure angle

°

12/14

Suspension

mm

1500/2905

Max speed

km/h

95

Drive system

6x4

Steel

Power, sino

Front axle

HF7

Rear axle

ST16

Tire specification

12.00-20

Number of axles

3

Engine model

Manufacturer

China National Heavy Duty Truck Group Co ., Ltd



Model

WD615.69



Emission/kw

9726ml/247Kw, 336hp



Gear box

10F&2R

Introduce

1, Tank made make of 4mm or 5mm high-quality carbon steel sheet.

2, Tank is equipped with multi-channel anti-wave partitions. igh-pressure gas leak detection, make sure the tank has a high strength, the center of gravity is stable, safe and stable vehicle delivery and so on.

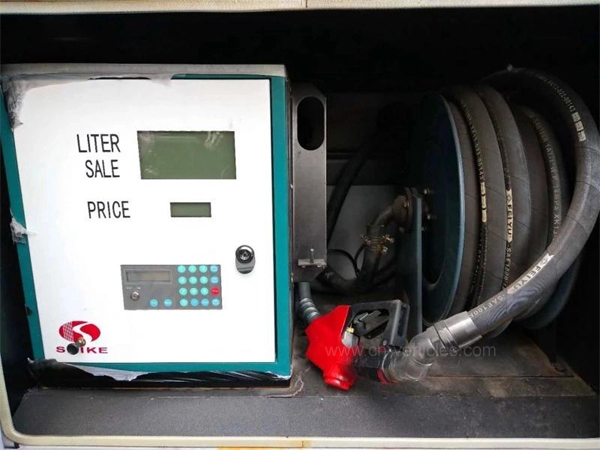

3, Fuel tank truck build by PTO, drive shaft, gear pump, tank, pipe network system. Pipe network system consists of oil pump, three-way four-ball valve, two-way ball valve, filter, pipe composition.
