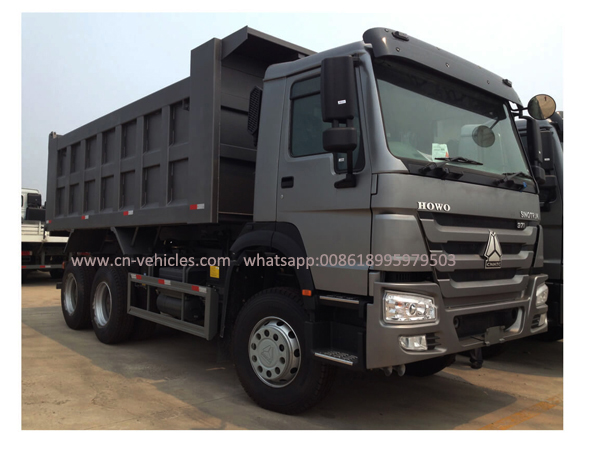

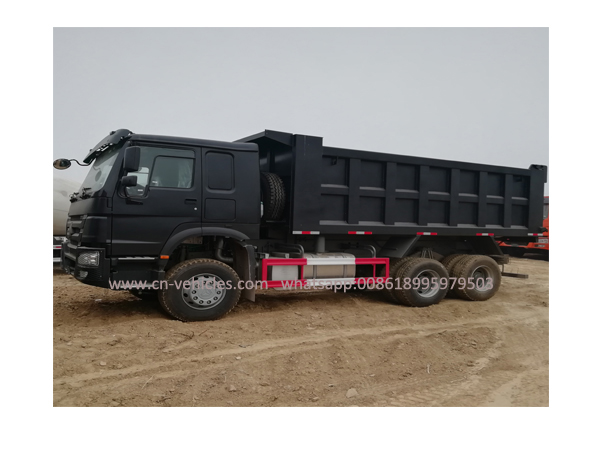

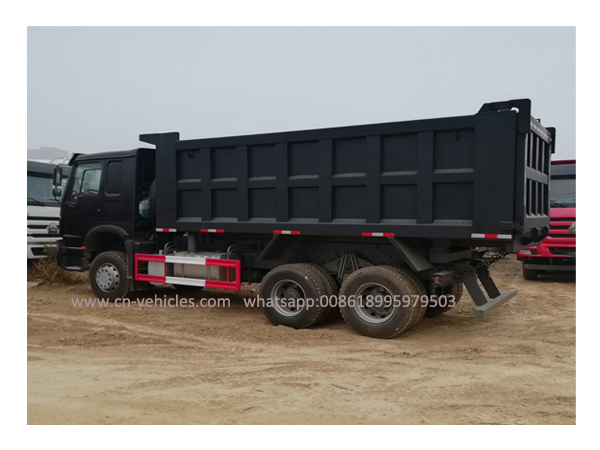

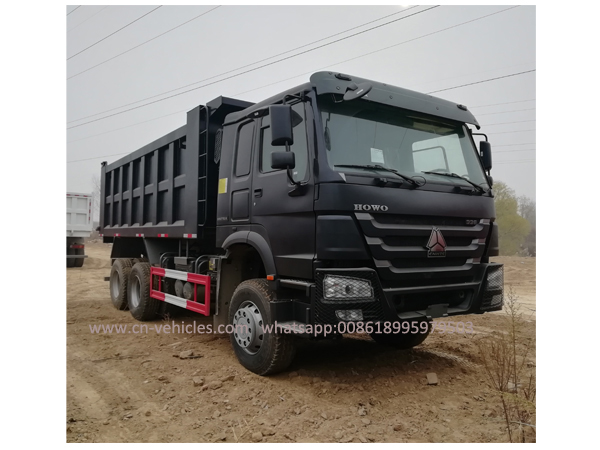

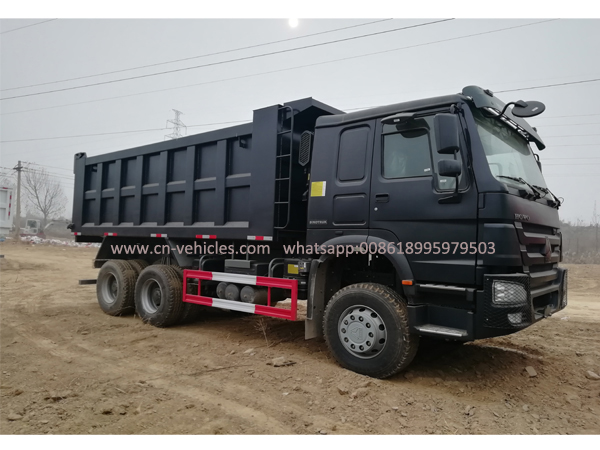

HOWO Sinotruck 371hp or 336hp Dumper Truck for Transport Quarry and Sand
A dump truck (or, UK, dumper tipper truck) is a truck used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery. In the UK and Australia the term applies to off-road construction plant only, and the road vehicle is known as a tipper, tipper lorry (UK) or tip truck (AU).
​​​​​​​
Description Get quotation

HOWO Sinotruck 371hp or 336hp Dumper Truck for Transport Quarry and Sand


A dump truck (or, UK, dumper tipper truck) is a truck used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery. In the UK and Australia the term applies to off-road construction plant only, and the road vehicle is known as a tipper, tipper lorry (UK) or tip truck (AU).
HOWO    6x4 Dump Truck
Driving Type Left Hand Driving
Cabin HW76
Engine Make: SINOTRUK
wd615.47
Transmission HW19712, 12F & 2R, with PTO
Steering ZF power steering, model ZF8118, hydraulic steering with power assitance
Front Axle HF9 SSteering with doubleT-cross section beam
Rear Axle AC16, 2x16000 KGSPressed axle housing, central single reduction with hub
 reduction and with differential locks between wheels and axles.Ratio:5.73
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Chassis Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced
sub-frame all cold riveted cross members  Front suspension:10 semi-elliptic leaf
springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear
suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake Service brake: dual circuit compressed air brakeParking brake (emergency brake):
 spring energy, compressed air operating on front shaft and rear wheelsAuxiliary
brake: engine exhaust brake
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah   Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires 12.00r20, radial tires with one spare tire.
Fuel Tank 300 L
Cargo Body 5600*2300*1500 mm, Floor 8 mm and side 6  mm,
Overall Dimension 8200*2550*3500 mm
