ISUZU 700P 190hp 6CBM Compactor Refuse Rubbish Waste Truck

Japanese Engine ISUZU 190HP 3TON 3CBM Rear Loaded Waste Garbage Collection Garbage Truck

Isuzu 600P Compressed Sanitation Rubbish Collector Dust Cart Roll Off Waste Compactor Garbage Truck

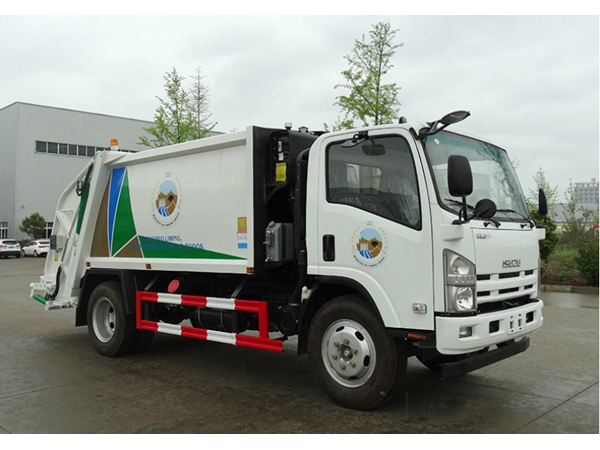

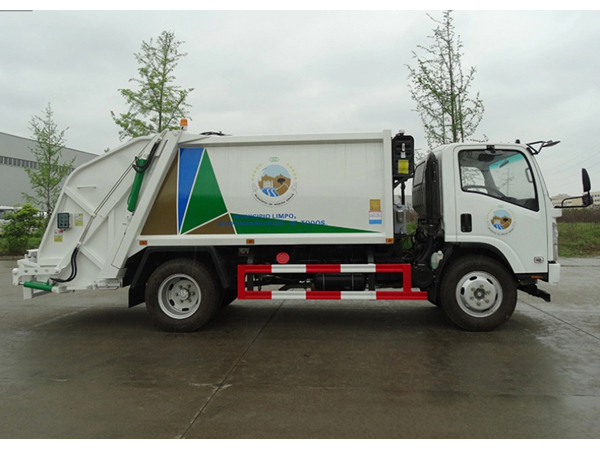

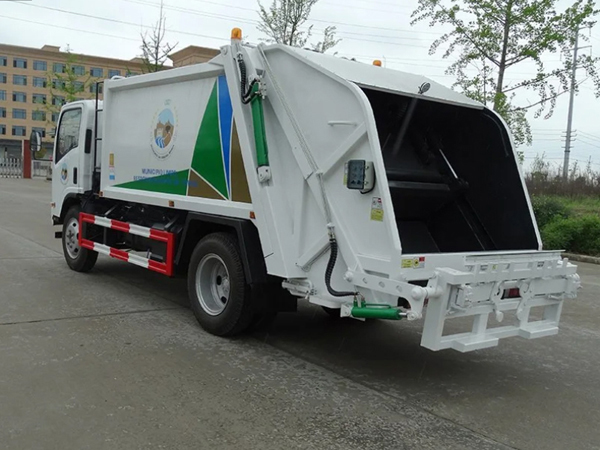

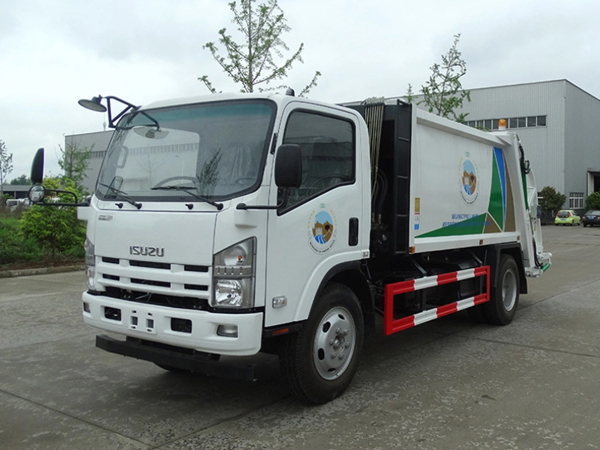

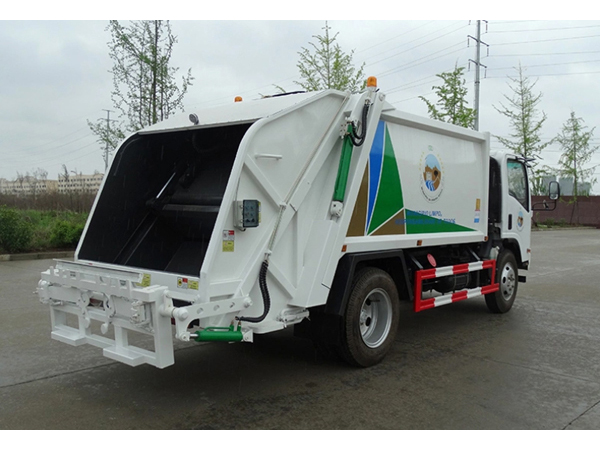

ISUZU 4*2 190HP Rear Load Refuse Garbage Compactor Truck

Mian Technology Parameter

Model Name

Isuzu 600p garbage compactor truck

Driving Type

 4×2,left hand drive

Color

White,yellow,box can choose

Weights

Rated payload weight(kg)

6000

Curb weight(kg)

4550

Dimensions

Wheelbase(mm)

3815(also can choose 3360mm wheelbase)

Overall Dimension(mm)

6710×1880×2600

Box dimension

6 m3

 Max speed(km/h)

98

Engine

 Engine model

4KH1-TCG4O(120HP)

Engine type

4 stroke water-cooled,inter-cooling

No. of cylinders

straight-4 cylinders

Displacement(L)

2.999L

Max. output (kw)

88kw

Emissions standard

Euro 5

Drive Line

Transmission

MSB 5 speeds ,5 forwards,1 reverse gear,manual operation

Steering

Power steering

Brake

Oil brake with vacuum pump

Cab

Air container

Have

Standard configuration

Sound,,parking sensors

Axle

Front axle

2.5tons

Rear axle

 4.8 tons

Tire specification

Tire specification

7.00-16 standard tire,6 tires+1 spare tire

6m3 garbage compactor truck

Box valume

6m3

Box material

Side 4mm,bottom 5mm

Sewage tanker

200L

Fill volume

1.2cbm

Loading time

8-10S

The cycle time of the loading

50-60S/per turn

Unloading model

Dump

Unloading time

30-40S

Hydraulic system pressure

16Mpa
