Cement Factory Road Sweeper Truck Isuzu 5m3
Cement factory use road sweeper Isuzu (also called Industrial road sweeper, runway sweeper truck, vacuum street sweeper, road cleaning sweeper truck, dustbin road sweeper truck, road waste sweeping truck) is a new road cleaning machine developed through refitting the Isuzu truck chassis which is excellent in performance and conforms to the European emission standard.
Description FEEDBACK

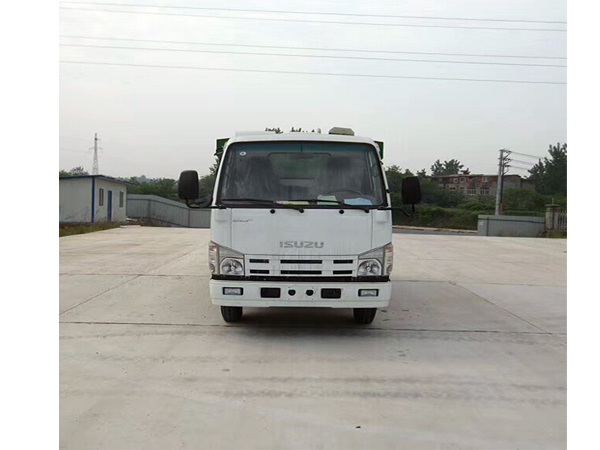

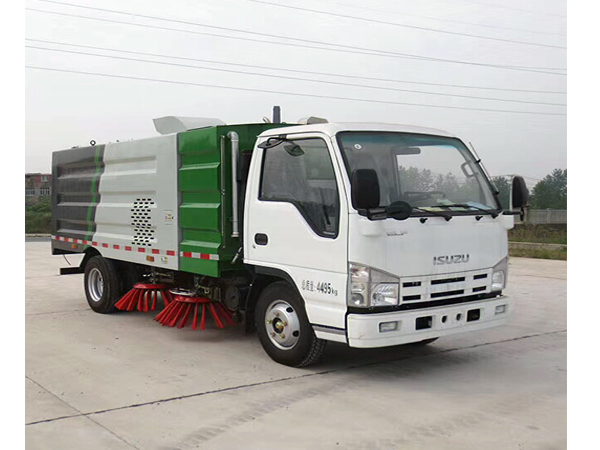

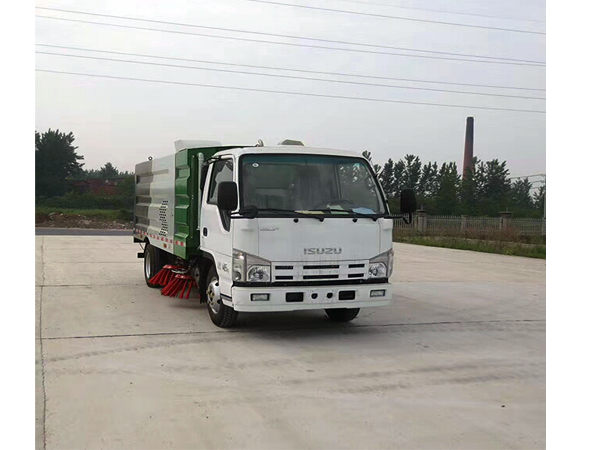

Cement factory road Sweeper Truck Isuzu 5m3

Cement factory use road sweeper Isuzu (also called Industrial road sweeper, runway sweeper truck, vacuum street sweeper, road cleaning sweeper truck, dustbin road sweeper truck, road waste sweeping truck) is a new road cleaning machine developed through refitting the Isuzu truck chassis which is excellent in performance and conforms to the European emission standard.

This Isuzu street sweeping vehicle has a proper and practical structure with four sweeping brushes in the middle while the suction port at the back part of the vehicle chassis. The sweeping brushes can avoid obstacles automatically. With low-noise suction system and famous-brand hydraulic components, our street sweeping vehicle are more stable and reliable in performance.

The Sweeper truck also adopts the way of vacuum suction and sweeping combination, wet dust removal, electro-hydraulic control and hydraulic dumping unloading to clean the road.

Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin tank body capacity from 3 to 10 Cublic Meter.
---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.


 Specifications:

Hydraulic road sweeper truck Isuzu (5 cbm)
General Vehicle Brand Weiyu
Chassis Brand ISUZU
Overall Dimension 5850 * 2000 * 2530 mm
GVW / Kerb Weight 7,000kg / 4,150kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Heating/cooling air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU
Power 120 HP (88 KW)
Displacement 2999ml
Emission Standard Euro IV or V
Chassis Drive Type 4X2, (left hand drive)
Transmission ISUZU MSB 5 speed levers with 1 reverse
Wheelbase/No. of axle 3360 mm / 2
Tire Specification 7.00-16
Tire Number 6 tires and 1 spare tire
Max Speed 95 km/h
Paint Metallic paint
Superstructure Dustbin tank 5 cbm
Water tank 1,000 liters
Sweeping width 3-20 km/h
Working speed  20~25 s
Max sweeping 65000 m2/h
Control system Electrically Hydraulic control
Control panel English or Your language
All standard accessories: Auxiliary engine,  dust control system, fire extinguisher, basic tool kit, English manual...
Optional ** Back alarm and Camera can be equipped.
** Water jetting system can be choose.
** Paint color or LOGO.

---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
