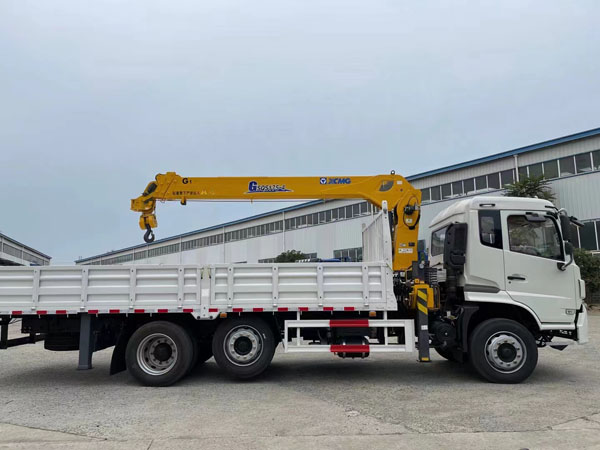

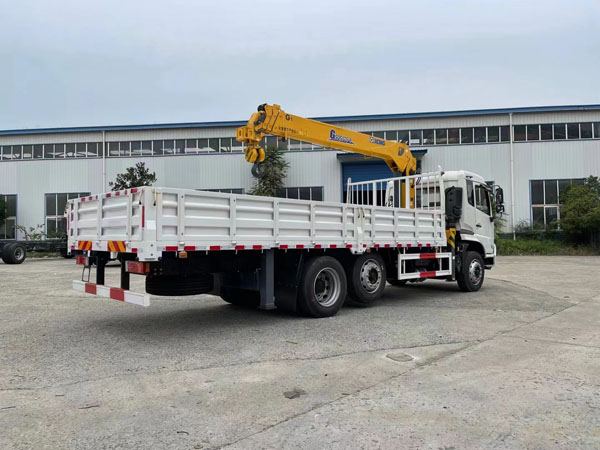

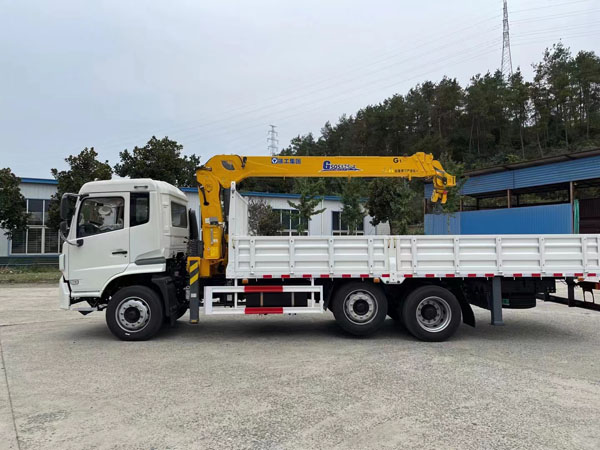

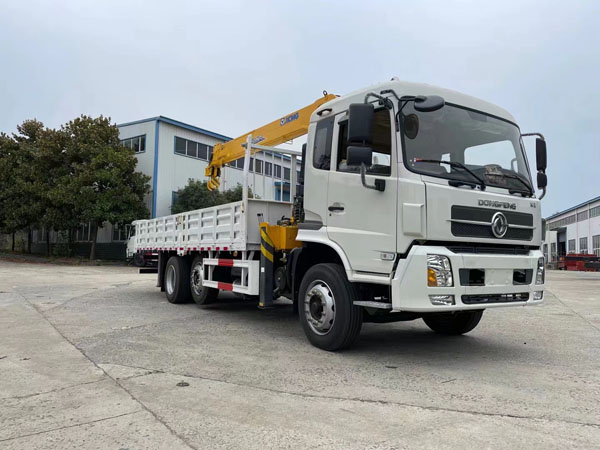

Dongfeng Kr XCMG 6.3tons Hydraulic Telescopic Boom Mounted Crane Cargo Lift Axle Truck

Vehicle description

Overall dimension

8430*2550*3050mm

GVW

16000kg

Curb weight

7930kg

Chassis brand

DONGFENG KR

Traction type

6*6, left hand drive

Chassis description

Chassis model

EQ2160BX5DJ

Cab

Kingrun D530 one and a half row cab, forward control type, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver seat, air conditioner, manual windows, manual lock.

Wheelbase

4100+1300mm

Tire specification

365/80R20 14PR

Tire quantity

6+1 units

Engine

Engine model

ISD245 50

Emission level

Euro V

Displacement/output

6700ml/180kw

Horse power

245hp

Gear box

Model

FAST 8MT

Number of gears

8 forward gears& 2 reverse, synchronize

Brake system

Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake.

Axle

Front

6T -Hub reduction

Rear

10T-Hub reduction

Suspension

Front

Leaf spring

Rear

Leaf spring

Fuel tanker

Type

Steel fuel tank, with lockable cap

Capacity

200L

Up-parts description

Crane

Type

SQS157

Stage

4 stages

Lifting capacity

6.3T

Rotating angle

360°

Cargo box

Dimension

5000*2300*800mm

Material

Carbon steel

Thickness

Side 3mm, bottom 4mm
