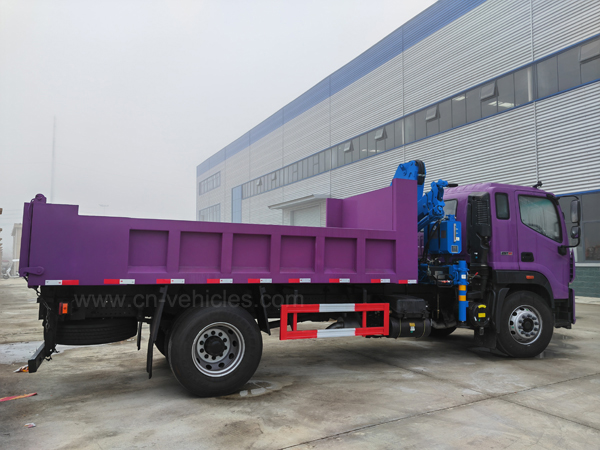

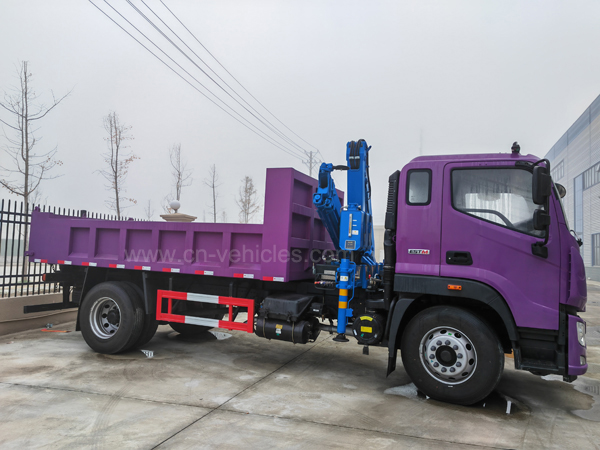

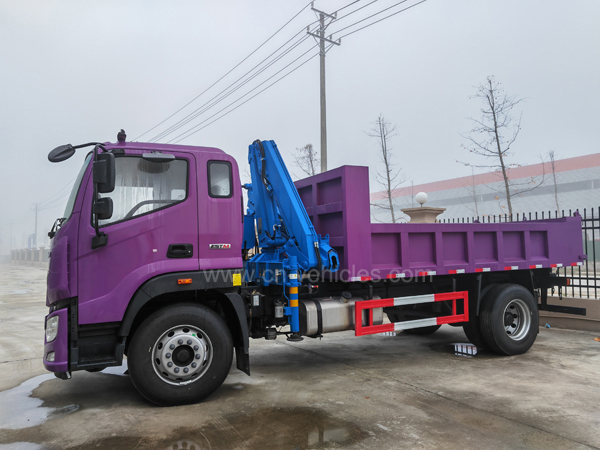

Foton Truck 3.2Ton Crane XCMG Telescoping Boom Truck Mounted Fold Crane
  • Foton Truck 3.2Ton Crane XCMG Telescoping Boom Truck Mounted Fold Crane
  • Foton Truck 3.2Ton Crane XCMG Telescoping Boom Truck Mounted Fold Crane
  • Foton Truck 3.2Ton Crane XCMG Telescoping Boom Truck Mounted Fold Crane
  • Foton Truck 3.2Ton Crane XCMG Telescoping Boom Truck Mounted Fold Crane
  • Foton Truck 3.2Ton Crane XCMG Telescoping Boom Truck Mounted Fold Crane
  • Foton Truck 3.2Ton Crane XCMG Telescoping Boom Truck Mounted Fold Crane
Foton Truck 3.2Ton Crane XCMG Telescoping Boom Truck Mounted Fold Crane
1. It is equipped with high-power engine with comfortable seat and low fuel consumption.
2. It is equipped anti-lock braking system with good driving stability.
3. Double-sided linkage operation, one-key operation of winch, support arm and flat plate
4. Explosion-proof performance: The old chassis is equipped with hydraulic drive winch, which has overload protection, impact protection and explosion-proof performance.
5. Stable and reliable: baffle plate is set on each side of the front end of the flat plate, which can prevent the vehicle from moving forward effectively.
Description Get quotation

Foton Truck 3.2Ton Crane XCMG Telescoping Boom Truck Mounted Fold Crane



1. Crane Brand: Foton 4X2 left hand driving with 240hp
2. 6 ton 3 section straight arm crane
3. 360° all hydraulic rotation
4. Crane capacity of truck mounted: 6-8ton
5. Using H type support leg, Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability.


Product advantages:
1. It is equipped with high-power engine with comfortable seat and low fuel consumption.
2. It is equipped anti-lock braking system with good driving stability.
3. Double-sided linkage operation, one-key operation of winch, support arm and flat plate
4. Explosion-proof performance: The old chassis is equipped with hydraulic drive winch, which has overload protection, impact protection and explosion-proof performance.
5. Stable and reliable: baffle plate is set on each side of the front end of the flat plate, which can prevent the vehicle from moving forward effectively.

Application Range:
Landscaping, power construction, high-speed rail, wind power bridges, plant relocation, material transportation, equipment relocation, road rescue etc.

Cabin
Left rudder/half row
Whole vehicle main dimensions
Overall dimensions (LxWxH)mm
9000×2550×3750
Wheel base(mm)
5150
Weight data
Curb weight(kg)
5470
Gross vehicle weight(kg)
22000
Persons in cab (persons)
2
Engine
Model
YC6A240-33
Emissions standards
Euro III
Displacement(L)
7.255L
Rated Power
177
Max torque
900
Gearbox
Model
8JS105TA
Clutch
Type
Single dry diaphragm spring
Front axle
Type
5.5.T
Rear axle
Type/Mainreducetion ratio
10T/4.875
Suspension
Front suspension/Leaf spring number
Non-independent suspension longitudinal plate spring /10
Rear suspension/Leaf spring number
Non-independent suspension longitudinal plate spring /10+8
Brake system
Service brake
Drum-type pneumatic brake
Parking brake
Barely able to brake
Basic equipment
Hydraulic Turnover/Cruise + 135A.H Battery/Manual Air Conditioners/Tuberless Tire (Inch) 11R22.5/ Manual Doors, Windows and Rearview Mirrors /MP3/ Power Steering/Knit Shock Absorber Seat (Spring)
