FAW 12 Wheels 20cbm J6P WATER TANKER Truck
  • FAW 12 Wheels 20cbm J6P WATER TANKER Truck
  • FAW 12 Wheels 20cbm J6P WATER TANKER Truck
FAW 12 Wheels 20cbm J6P WATER TANKER Truck

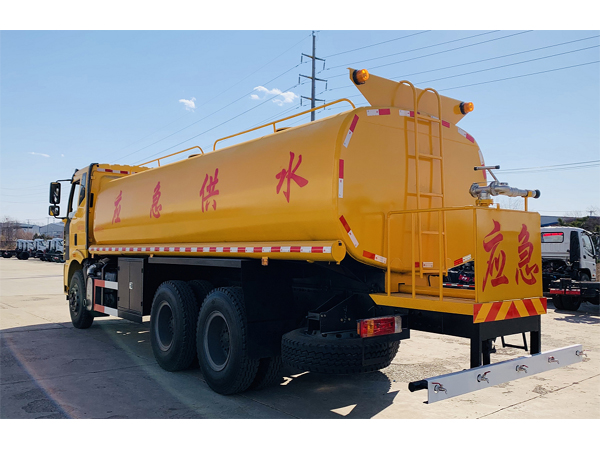

The water tanker truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water tank truck is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also , the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain,  moderate rain, heavy rain, etc. The spraying width of chengli water tank truck is more than 15m and the cannon range is more than 25m.
Description Get quotation

FAW 12 Wheels 20cbm J6P WATER TANKER Truck

The water tanker truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water tank truck is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also , the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain,  moderate rain, heavy rain, etc. The spraying width of chengli water tank truck is more than 15m and the cannon range is more than 25m.
Automatic air conditioning, the front of the protective device, 400L steel tank, iron bumper, efficient single air filter, the cab after the two-point screw spring suspension, manual hydraulic lifting device, suspension for the former more / after more
FAW 12 Wheels 20cbm J6P WATER TANKER Truck Technical Date:

Overall (length*width*height)

10770*2495*3530

Gross weight(kg)

25000

Kerb weight  kg

10280

Rate load weight kg

14590

Engine Model

CA6DL2-35E5

Power

350 hp

Displacement

8.6 L

Torque

1400N.m

Wheel base

5800+1350mm

Transmission Model

CA10TA130M 10 speed

Clutch

ф430

Cab

J6P Full-floating high-top big row of semi-cab, LCD instrument, electric glass movements, manual rearview mirror, driver‘s seat for the mechanical vibration damping seat

Rear Axle

ф457

Gear ratio

4.111

Frame

270×75×(7+5)mm

Tire

12R22.5  16

About tank

20m3,Single warehouse, with pump, 2.0-inch outlet,  with platform water cannon
