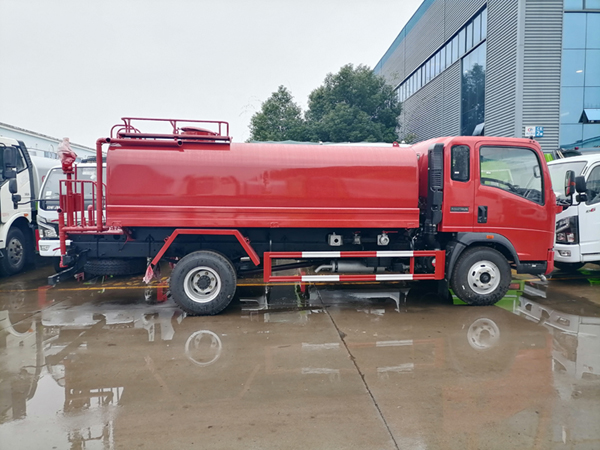

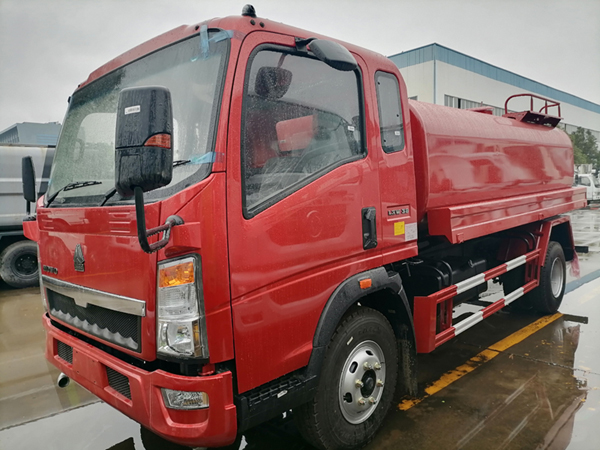

Sinotruck HOWO 8000Liter Pesticide Spraying Vehicle

These customized truck designs are a sample of our capabilities when it comes to creating and building sprayer vehicles for our customers, especially in the roadside, landscape, lawn and tree care industries. Please contact us for a quote and to discuss with one of our industry experts how we can create exactly what you need to transport liquid fertilizers, herbicides, and other chemicals to best serve your customers.

Description FEEDBACK

Sinotruck HOWO 8000Liter Pesticide Spraying Vehicle

These customized truck designs are a sample of our capabilities when it comes to creating and building sprayer vehicles for our customers, especially in the roadside, landscape, lawn and tree care industries. Please contact us for a quote and to discuss with one of our industry experts how we can create exactly what you need to transport liquid fertilizers, herbicides, and other chemicals to best serve your customers.

Sprinkler Parameters

Tank Volume

5m³

Sprinkler width

15m

Water Cannon Range

30m

Vertical suction

7m

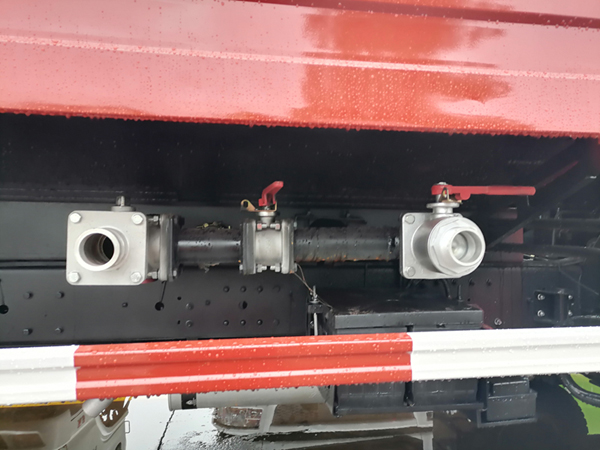

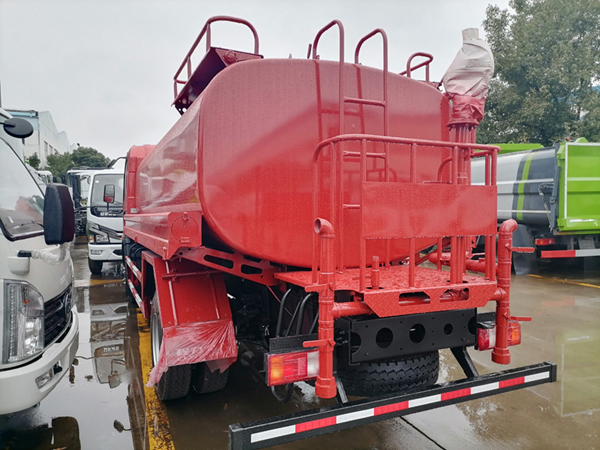

Tank material is 4mm carbon steel.Equipped with front rinsing, rear sprinkling,and tail working platform with high-pressure mist cannon(30m range). Tail working platform mounted green sprinkler gun (adjustable jet shape), adjustable straight at shape, heavy rain, moderate rain, drizzle, can adjust continuously, With fire interface, self - flow valve, self - suction and self - discharge.

Chassis Parameters

Gross Weight

8995kg

Chassis Brand

Sinotruck

Curb Weight

6000kg

Chassis Model

CLW5090TDYBEV

Dimension

6743*2150*2930mm

Wheelbase

3300,3800

Engine Model



Engine Power

145kw

Tire Model

8.25R16LT 14PR

Max. Speed

90km/h

Mist Cannon Parameters

Fan Power



Spray Range

30m

Generator Power

80kW/145kW

Paint

Customized



Pump Type

Three cylinder plunger pump



Mist Flow Rate



18-50L/M

Control Type

Manual

Working Pressure

0-3.5Mpa

Remote Control Distance

30m

Mist Spectrum

10-200um

Pitching Angle

-5°-90°

Rotation Angle

21°-12°




























































:
