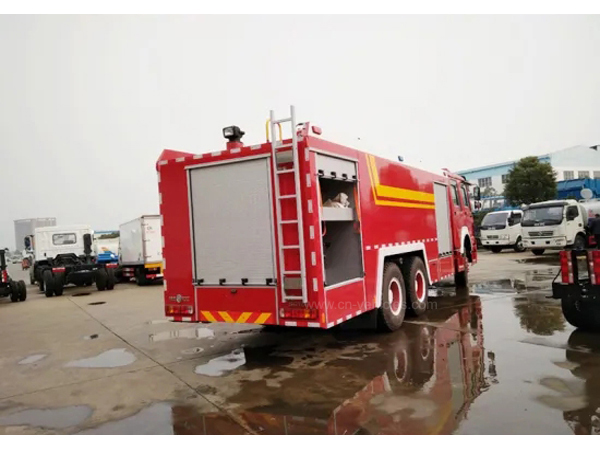

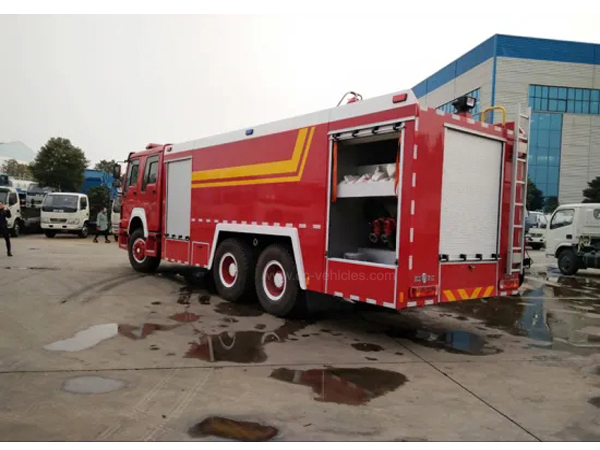

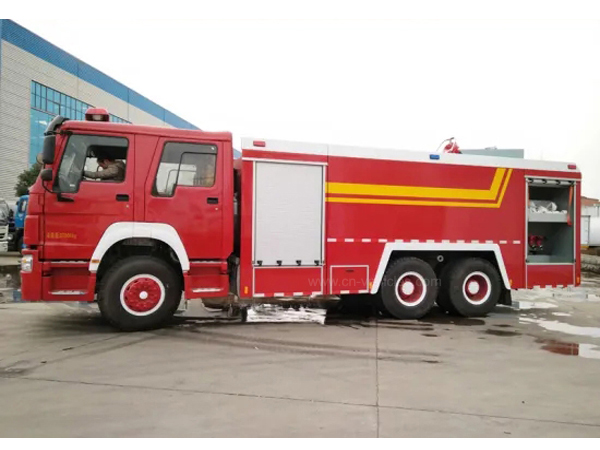

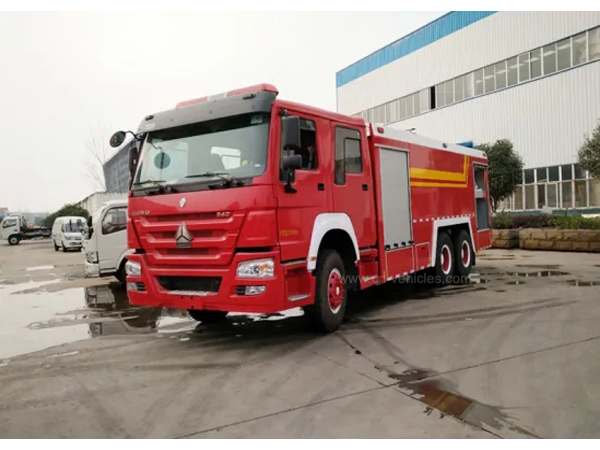

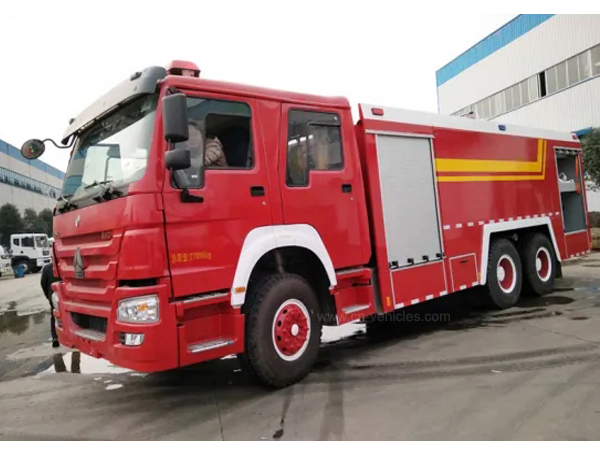

16tons Howo 10 wheel Fire Engine 13000Liters Water 3000liters foam Tanker Fire Fighting Truck
  • 16tons Howo 10 wheel Fire Engine 13000Liters Water 3000liters foam Tanker Fire Fighting Truck
  • 16tons Howo 10 wheel Fire Engine 13000Liters Water 3000liters foam Tanker Fire Fighting Truck
  • 16tons Howo 10 wheel Fire Engine 13000Liters Water 3000liters foam Tanker Fire Fighting Truck
  • 16tons Howo 10 wheel Fire Engine 13000Liters Water 3000liters foam Tanker Fire Fighting Truck
  • 16tons Howo 10 wheel Fire Engine 13000Liters Water 3000liters foam Tanker Fire Fighting Truck
  • 16tons Howo 10 wheel Fire Engine 13000Liters Water 3000liters foam Tanker Fire Fighting Truck
16tons Howo 10 wheel Fire Engine 13000Liters Water 3000liters foam Tanker Fire Fighting Truck
Fire Fighting Truck ,which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck  is a special vehicle designed primarily for fire fighting operations  and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Description Get quotation

16tons Howo 10 wheel Fire Engine 13000Liters Water 3000liters foam Tanker Fire Fighting Truck



Fire Fighting Truck ,which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck  is a special vehicle designed primarily for fire fighting operations  and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire Fighting Truck  can be divided into several types:
1--According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2--According to chassis drive type, there are 4X2 or 6-wheel  fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3--According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck,  Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4--According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-There are also fire rescue truck with special purpose as follows,
--Foam supply fire truck;
--Compressed air supply fire fighting truck;
--Water tower fire truck ;
--Earthquake rescue fire truck;

Features of howo Fire Fighting Truck :
---- Optional for different siz,strong enough for all road conditions.
---- powderful engin; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump
---- Massive, durable, long service life.



Spec. of 16tons Howo 10-wheel Fire Engine 13000Liters Water 3000liters foam Tanker Fire Fighting Truck

Condition

New condition/Left or Right hand drive/6x4

Chassis

Brand

SINOTRUK

Model

HOWO

Curb weight(kg)

15750

Wheelbase(mm)

4300+1350 mm

Dimensions(mm)

10650*2500*3540 mm

Overhang (front/rear) (mm)

1500/2500 mm

Wheel track (front/rear) (mm)

2110/1830/1830 mm

Approach/Departure angle(°)

15/11°

Axle Load(kg)

7000/13000/13000

Max. driving speed(km/h)

95 km/h

Clutch

Reinforced diaphragm clutch

Brakes

Service brake: dual circuit compressed air brake                      Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Number

10pcs with one spare tire

Specifications

12R22.5

Gear box

HW13710, Manual type, 10 Forwards & 2 Reverses

Cabin

Four doors and it can hold 8 fire fighter and 1 driver. With Air conditioner

Engine

Brand

SINOTRUK

Model

HOWO

Fuel type

Diesel

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Displacement(ml)

9726 ml

Power(kw)

247kw

Horsepower(HP)

336 HP

Emission standard

Euro 2

Torque(N.m)

1500 N.m

Upper & Fire Fighting System

Water tank

Volume(CBM)

13.0 CBM

Tank Material

Q235 Carbon steel

Foam tank

Volume(CBM)

3.0 CBM

Tank Material

Q235 Carbon steel

Proportion control system

Foam vessel , proportioned equipment, water - entering pipe and liquid - out pipe etc

Fire pump

Type

Centrifugal pump

Model

CB20.10/30.60

Flow(L/s)

60

Pressure(Mpa)

1.0


Fire fighting pump Suction depth

≥ 7 m

Fire fighting pump Suction Time

≤45 s


Fire cannon

Model

PL48

Flow(L/s)

48 L/s

Water Range(m)

≥55 m

Foam Range(m)

≥50 m

Swing angle

Horizontal

360 °

Tilt angle

-30°~80°
