Fuel Tank Truck / TrailerYou are here:HOME >> PRODUCTS >> Fuel Tank Truck...

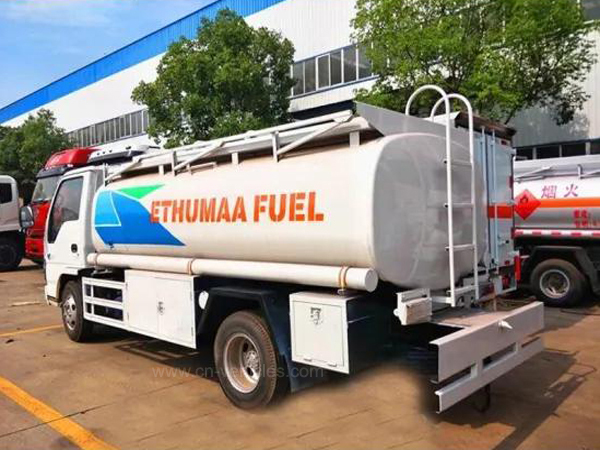

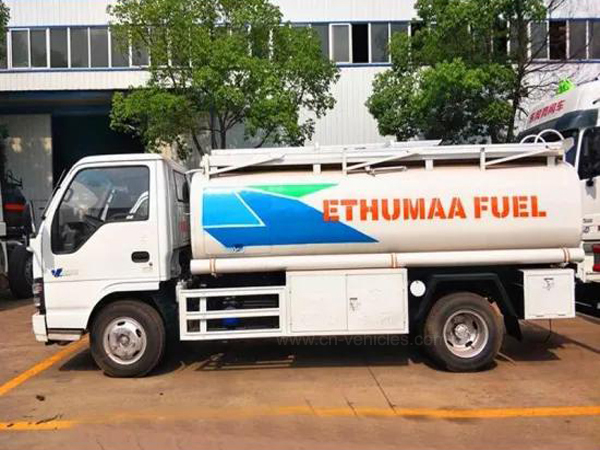

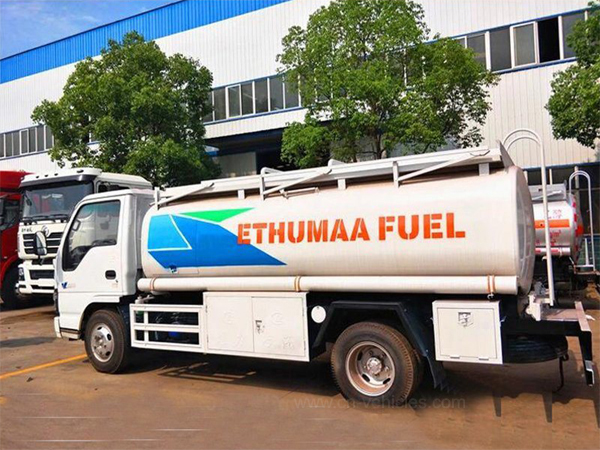

Brand New Isuzu 120HP 5cbm Fuel Dispenser Truck 5t Diesel Refueller Tanker Haiti for Sale
Fuel tank truck: according to the different types of transport medium, configuration and different places called, there are many different titles, such as tank car, tank truck, oil truck, oil supply car, oil puller, flow refueling car, tax control refueling car, computer tanker, diesel transporter, gasoline transporter, coal tar carrier, Lubricating oil transporters, edible oil transport vehicles, crude oil transporters, heavy oil transporters, oil tanker and so on.
Description FEEDBACK

Brand New Isuzu 120HP 5cbm Fuel Dispenser Truck 5t Diesel Refueller Tanker Haiti for Sale

Fuel tank truck: according to the different types of transport medium, configuration and different places called, there are many different titles, such as tank car, tank truck, oil truck, oil supply car, oil puller, flow refueling car, tax control refueling car, computer tanker, diesel transporter, gasoline transporter, coal tar carrier, Lubricating oil transporters, edible oil transport vehicles, crude oil transporters, heavy oil transporters, oil tanker and so on.

All the tank trucks can be designed as chemical vehicles, all kinds of heating and insulation tanks; all the tank cars can be equipped with computer tankers; wide range of tonnage selection to meet the user‘s needs; the tank has multiple anti wave baffles. High pressure gas leakage test is used to make the tank body with high strength, stable center of gravity and safe and stable transportation of vehicles.

Description:

1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil pump: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round ,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controlled oiling machine with accurate figure of volume, sum of money ,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.


Condition

New condition/LHD/4X2

Chassis

Brand

isuzu

Curb weight(kg)

5260kg

Wheelbase(mm)

3360 mm

Dimensions(mm)

5300X1900X2200 mm

Front/Rear Axle loading(kg)

2500/4800 kg

Wheel track (front/rear) (mm)

1880/1800 mm

Front/Rear overhang(mm)

1430/2370 mm

Approach/Departure angle(°)

26/20

Max. driving speed(km/h)

95 km/h

Clutch

Reinforced diaphragm clutch


Brakes

Service brake: dual circuit compressed air brake                                                    Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Quantity

6 pcs with one spare tire

Specifications

9.00R20

Transmission

Manual type, 6 Forwards and 1 reverse

Cab

It can accommodate three people. With Air Conditioner


Engine

Brand

isuzu engine

Model

4KH1-TCG40

Fuel type

Diesel

Displacement(ml)

2999 ml

Power(kw)

88kw

Horsepower(HP)

120HP

Cylinder number

4

Emission standard

Euro V

Fuel Tank

Fuel tank

Capacity(cbm/liters)

4~5cbm/4000~5000Liters

Tank material

Tank material:Q235 high tensile strength steel.

Thickness(mm)

5mm of tank and 6mm of end plate

Compartment No.

1

Baffle

1 No,4 mm carbon steel

Manhole cover

1 manhole cover, 500mm 1 set with breather valve

Bottom Valve

1 set of API Pneumatic Bottom Valve

Discharging valve

1 set discharging valve

Handrail

Two sides

Ladder

At rear of tank

Painting

Color and design as customer‘s requirement
