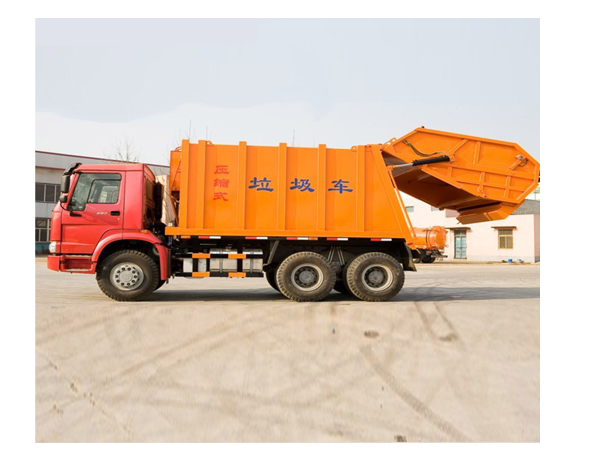

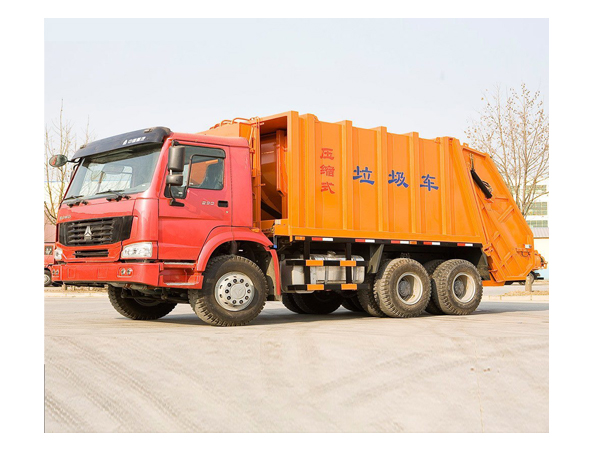

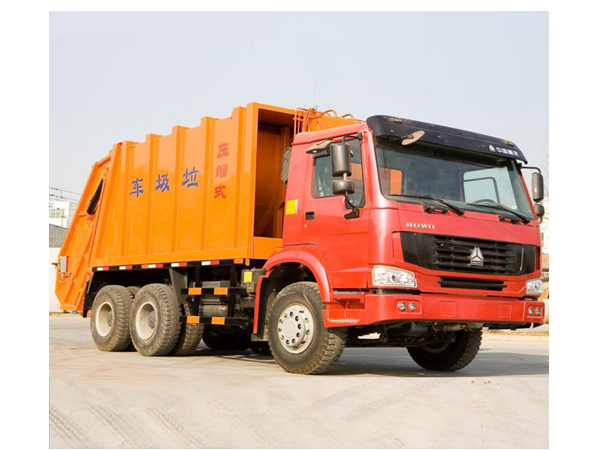

12cbm HOWO Refuse Compactor Truck for Sale
  • 12cbm HOWO Refuse Compactor Truck for Sale
  • 12cbm HOWO Refuse Compactor Truck for Sale
  • 12cbm HOWO Refuse Compactor Truck for Sale
  • 12cbm HOWO Refuse Compactor Truck for Sale
12cbm HOWO Refuse Compactor Truck for Sale
Garbage Compactor is the machinery of choice for door to door collection of waste. The collected waste is simultaneously compacted and eventually transported to the dumping site.

Compactors have multiple benefits over conventional waste trolleys namely:
Waste is covered and there is no chance of "spillage" of waste during transportation.
Continuous compaction allows more waste to be stuffed onto a truck which reduces the number of round trips to the dumping site. This results in significant fuel saving.
Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate.
Two men are required to perform the entire functionality of the compactor namely, driver and operator.
Hubei Weiyu manufactures compactors with various capacities depending on the type of truck chassis and user requirement.
Description Get quotation

12CBM Howo Refuse Compactor Truck for sale


Garbage Compactor is the machinery of choice for door to door collection of waste. The collected waste is simultaneously compacted and eventually transported to the dumping site.

Compactors have multiple benefits over conventional waste trolleys namely:
Waste is covered and there is no chance of "spillage" of waste during transportation.
Continuous compaction allows more waste to be stuffed onto a truck which reduces the number of round trips to the dumping site. This results in significant fuel saving.
Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate.
Two men are required to perform the entire functionality of the compactor namely, driver and operator.
Hubei Weiyu manufactures compactors with various capacities depending on the type of truck chassis and user requirement.

Chassic
CNHTC , Beiben trucks , Shacman trucks , FAW trucks , ISUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks

Technical date :
Model WU487 WU287 WU244 WU487 WU148 WNI184 WU148 WNI68
Body capacity (m3) 4.3 5.2 6.0 8.6 10.2 12.0 15.3 20.0
Hopper capacity (m3) 0.6 0.7 1.1 1.0 (1.1) 2.2
Plate thickness (mm) Body Roof*1 2.1 2.3
Side*2 2.7 2.3 2.7
Floor*1 2.7 3.2
Discharge plate*1 2.1 2.1
Hopper Bottom*3 6.0 8.0
Side(upper)*3 4.5 4.5
Side(lower)*3 4.5 4.5
Press plate*3 4.5 4.5
Loading time [one cycle] (sec) 10-11 13-20 26-28
Gate width (mm) 1,430 1,680 1,700 1,600 2,000
Sewage Scatter Prevention Rubber Equipped
Hopper Alarm (rising/descending) Equipped
Discharge time (sec) 10-20 10-25 15-25 45 55
Sewage Tank (L) 80 95 120 80 140
Anti-rust paint Electro-Deposition paint Anti-rust paint
Emergency Stop Button Hopper Both Sides
The above mentioned figures are approximate.
  • Optional equipments are included in these photographs
  • Specifications and dimensions are subject to change without notice.
  • Material : Anti-corrosion Steel
  • Material : Anti-corrosion Steel or High-tensile Steel
  • Material : High-tensile Steel
