Isuzu P3 Screen Outdoor LED Mobile Billboard Advertising Truck
LED display, also called led screen, led video wall, or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution, high brightness and full colour!
Description FEEDBACK

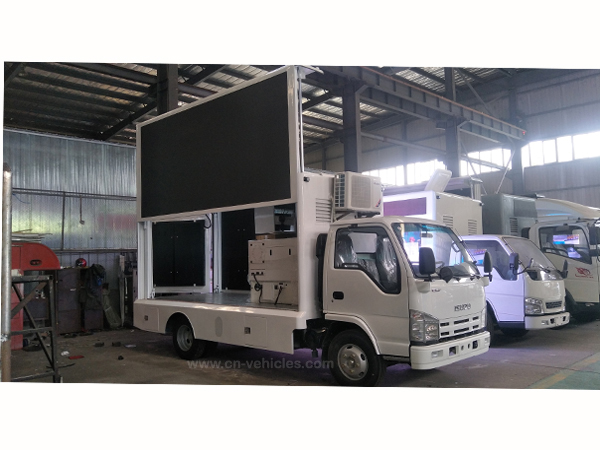

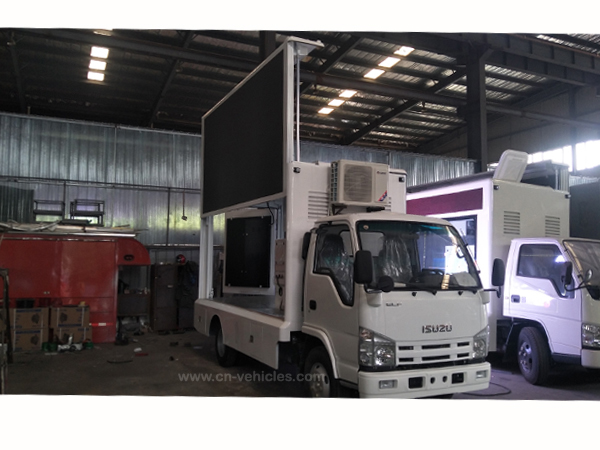

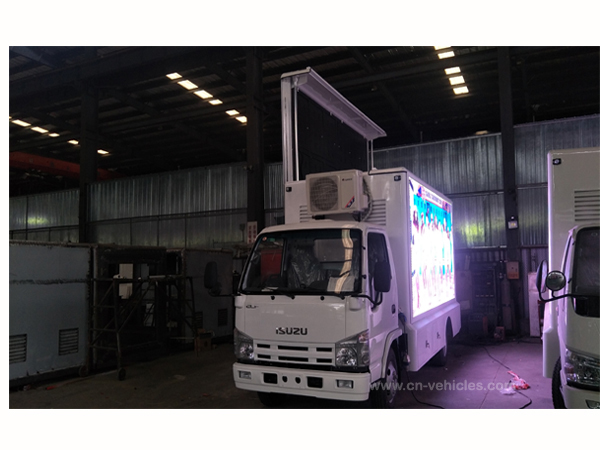

ISUZU P3 Screen Outdoor LED Mobile Billboard Advertising Truck


LED display, also called led screen, led video wall, or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution, high brightness and full colour!

LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.Led display screen now are widely applied in media advertising, transportation, Security,Real estate and Stage show background.


Product Description
1. Purpose: For mobile advertising, products promotion, branding, draft activities, concerts, and sport events, etc.
2. Main parts: LED screen, Generator set, Computer, Control system etc.


Technical Date
Chassis Specification
Item No. Parameters
Drive model 4x2, 6 Wheels
Overall Dimension 5995×2040×2990(mm)
Chassis Brand ISUZU 100P
Cabin Single, Left Hand Driving, with ABS
Engine Model 4JB1CN, 4 Cylinders
Power 72KW/98HP
Emission standard EUROIV
Displacement 2771(ml)
Fuel type Diesel
Gearbox 5 Forward & 1 Reverse Gear
Brake System Pneumatic
Steering Gear Power Assistant
Wheel Base 3360(mm)
Front/Rear Axle Loading 2000/4800(Kg)
Approach/Departure Angle 24/16(°)
Tire 7.00-16
Max Driving Speed 100(km/h)
Upper Structure

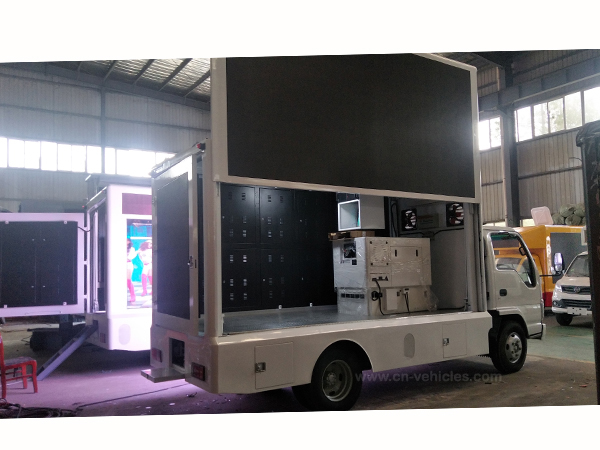

LED Screen Right LED Screen 3840mm(L)×1728mm(H)=6.63m2 P6 full-color Screen
Left LED Screen 3840mm(L)×1728mm(H)=6.63m2 P6 full-color Screen
Rear LED Screen 1280mm(L)×1440mm(H)=1.84m2 P6 full-color Screen
P6 full-color outdoor LED display, waterproof, shake-proof, high brightness, long life

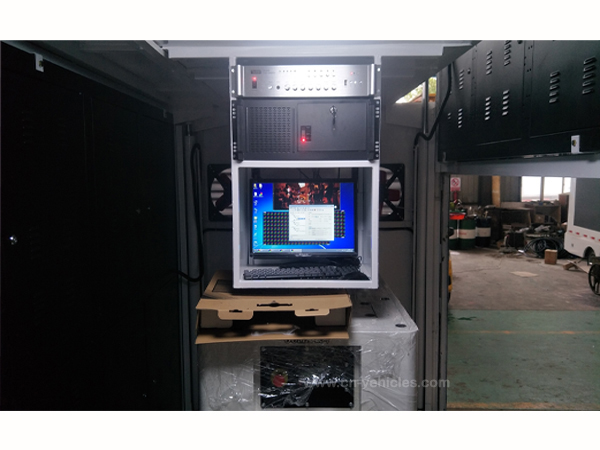

Multi-media system 1.1 unit computer
2.Sound system including 4 units waterproof loudspeaker 1 unit power amplifiers
Generator Set 1.OUMA brand, Silent diesel generator
2.220V domestic power supply
Security system Overheat protection
Remarks 1.Circulating ventilation and cooling systems
2.Aluminum patterned floor
3.Internal and external electrical distribution box
Optional Items 1.Mobile stage
2.Scrolling light box
