Sinotruk HOWO 5Ton to 30 Ton Freezer Refrigerated Fridge Van Truck For Transport
Refrigerator truck (also called refrigerator wagon , refrigerated truck , refrigerated box car , freezer vehicle , freezer wagon , temperature controlled truck , refrigerator car , preservation vehicle ) is used to carry perishable stuff at specific temperatures .
Description FEEDBACK
Sinotruk HOWO 4X2 Freezer Refrigerated Fridge Van Truck For Transport

Refrigerator truck (also called refrigerator wagon , refrigerated truck , refrigerated box car , freezer vehicle , freezer wagon , temperature controlled truck , refrigerator car , preservation vehicle ) is used to carry perishable stuff at specific temperatures .

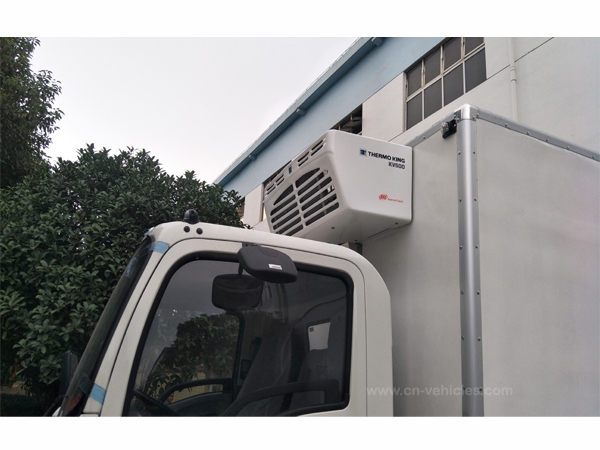

The cooling device could be of famous brand such as carrier , Thermoking , There are two types of power driving ways , one is powered by vehicle engine through PTO , The other is driven by a separately carried power unit . According to the transport stuff category ( Fresh or Frozen ), There are two main lowest temperature unit (-5º or -16º) for your option .

We use high quality van body for temperature reservation , The box surface material could be fiberglass , Aluminum or stainless steel , The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options .


Chassis brand

CNHTC , Beiben trucks , Shacman trucks , FAW trucks , ISUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks

Gross weight(Kg)

4495

Drive type

4x2

Payload(Kg)

1090

Overall dimension(mm)

5995X2350X3350mm

Curb weight(Kg)

3210

Cab seats


3

Approach/departure angle(°)

18/18

Front/rear hang(mm)

1210/2090

Axle No.

2

Wheelbase(mm)


3360

Axle load(Kg)

1705/2790

Max speed(Km/h)

90

Chassis specification

Chassis model

ZZ147

Manufacturer

Sinotruk Howo

Brand name

Howo

Emission standard

Euro 3

Tyre specification

7.00R16

Tyre No.

6

Fuel type

Diesel

Transmission

5 forward gear,1 reverse gear

Cab

Single row, luxurious interiors and seats with power steering. Air condition is optional.

Engine model

Engine manufacturer

Power(hp)

JE493ZLQ3A

ISUZU

102hp

Performance

Van body size(mm)

4100×21505×2150

Load capacity(m3)

18-20

Lowest refrigeration temperature(ºC)


-15 centigrade

Feature and Application

The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed.
