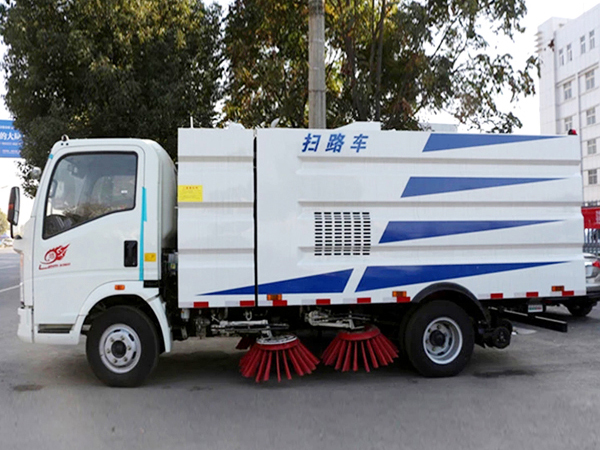

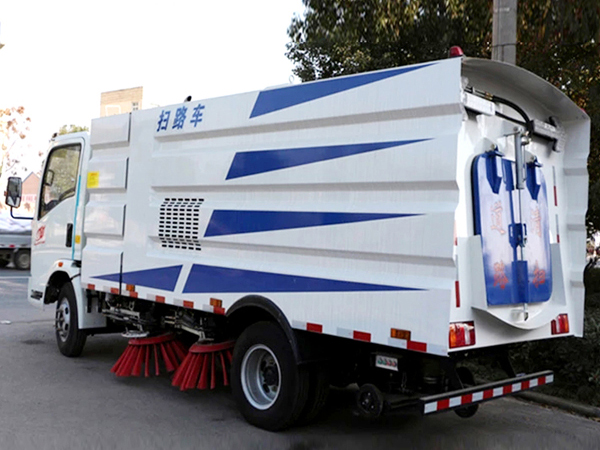

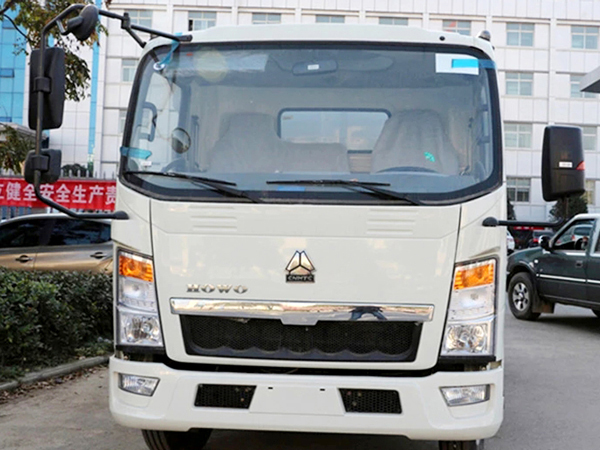

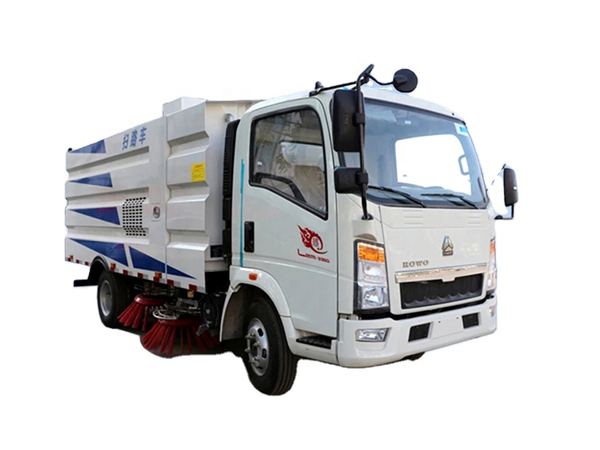

HOWO 6 Wheels Mobile Street Clean Sweeper For Urban Use

HOWO 6 Wheels Mobile Street Clean Sweeper For Urban Use for export are equipped with sweeping and cleaning systems such as special sanitation vehicles, mainly for large and medium-sized city sanitation sector cleaning operations.

Sweepers greatly liberated the work of sanitation workers, improve work efficiency, reduce dust and other secondary pollution.

Description FEEDBACK

HOWO 6 Wheels Mobile Street Clean Sweeper For Urban Use



HOWO 6 Wheels Mobile Street Clean Sweeper For Urban Use for export are equipped with sweeping and cleaning systems such as special sanitation vehicles, mainly for large and medium-sized city sanitation sector cleaning operations.

Sweepers greatly liberated the work of sanitation workers, improve work efficiency, reduce dust and other secondary pollution.



1,Hghly wear-resistant automatic clutch drives the special fan to control the starting and stopping of the engine.

2,The imported  hydraulic components were intergrated folded and conveniently controlled by the electrical and hydraulic system in the cab.

3,stainless steel water tank and material tank are combined and no remained water in the water tank when working .

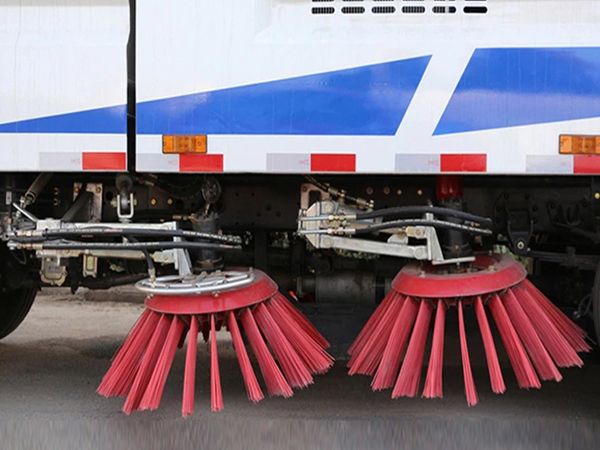

4,The sweeping device are hydraulic controlled and can  avoid  inter collision. Automaticlly.

5,the postposition floating type  suction nozzle have self-adjustment function to  adapt to the bad road condition .And it is easy to debug and maintain..

6,the adjustable mist spray device can eliminate the second pollution as well as saving water.

7,streamline appearance ,low oil consumption,low noise.

Vehicle parameters

Vehicle Model

EHY5087TSLZ

Vehicle Brand

HUAYI

Overall dimensions

6700X2290X2500mm

Curb weight

5705kg

Dust tank volume

4500L

Water tank volume

2000L



Chassis parameters

Chassis model

ZZ1087D3814C180

Chassis brand

SINOTRUK

Overall dimensions

6810X2104X2350mm

Wheel base

3800mm

Front/rear wheel track

1589/1599mm

Front/rear suspension

1160/1850mm

Approach/departure angle

20/21°

Maximum speed

95km/h

Chassis Manufacturer

China National Heavy Duty Truck Group Co.,Ltd

Cab

Configuration

1880 a single row cab.

Color

White, other color is optional

Engine

Model

YN38PE-1

Emission

Euro 3

Type

4 cylinders, in-line, turbo inter-cooling

Rated power

115hp, rated power speed 3000rpm

Displacement

3760ml

Max.torque

320N.m

Bore x stroke

102X115mm

Manufacturer

Kunming Yunnei Power Co.,Ltd

Tire

Size

7.50R16 steel wire tire

Number

6+1 nos

Fuel tank

120L iron oil tank

Front axle

3.2 tons

Rear axle

7.2 tons

Drive form

4X2

Suspension

Multi leaf springs

Rated voltage

24V, DC

Transmissions

6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration



If there is a slight change in the chassis parameters above, please take the actual product as the standard



Road sweeper structure parameters

Dust tank volume

4500L

Water tank volume

2000L

Sweep width

3000m

Cleaning speed

3-20km/h

Cleaning ability

9000-60000 m2/h

Cleaning efficiency

98%

Maximum suction particle

120mm

Min. clearance of suction nozzle

200mm

Unloading angle

45°

Unloading height

970mm





Color and Logo

Optional

Standard configuration

Chassis, sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.
