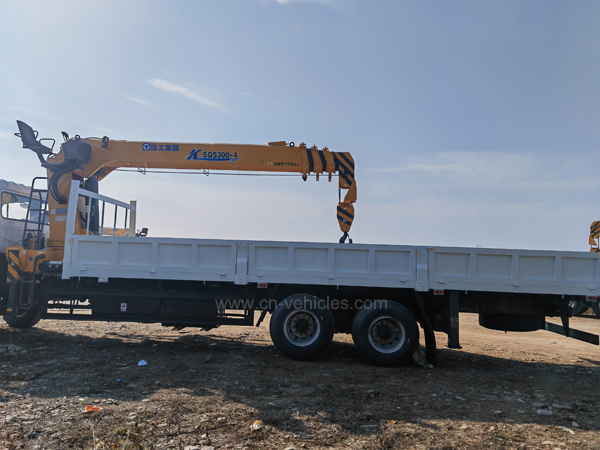

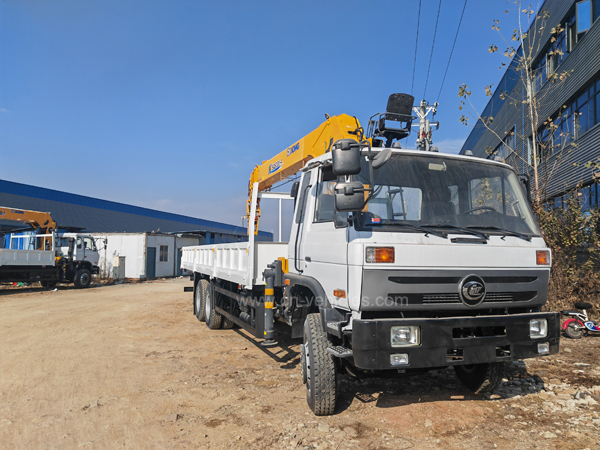

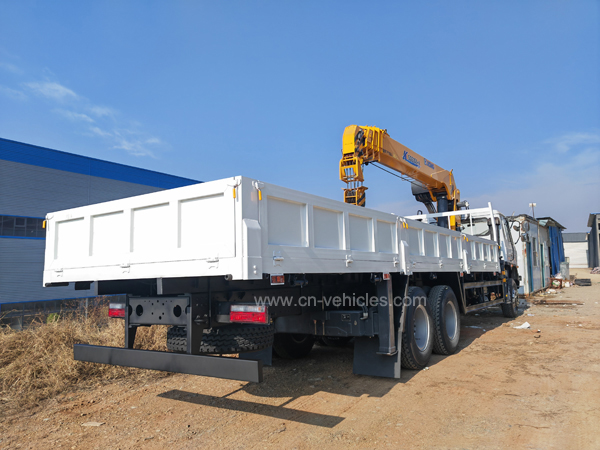

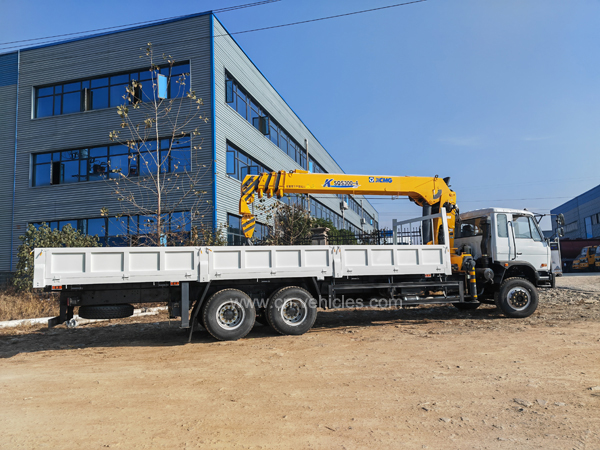

12 Tons Truck Mounted Straight 4 Arm Telescopic Crane China CLW 10 Wheels Hoisting Truck with Cranes
  • 12 Tons Truck Mounted Straight 4 Arm Telescopic Crane China CLW 10 Wheels Hoisting Truck with Cranes
  • 12 Tons Truck Mounted Straight 4 Arm Telescopic Crane China CLW 10 Wheels Hoisting Truck with Cranes
  • 12 Tons Truck Mounted Straight 4 Arm Telescopic Crane China CLW 10 Wheels Hoisting Truck with Cranes
  • 12 Tons Truck Mounted Straight 4 Arm Telescopic Crane China CLW 10 Wheels Hoisting Truck with Cranes
  • 12 Tons Truck Mounted Straight 4 Arm Telescopic Crane China CLW 10 Wheels Hoisting Truck with Cranes
  • 12 Tons Truck Mounted Straight 4 Arm Telescopic Crane China CLW 10 Wheels Hoisting Truck with Cranes
12 Tons Truck Mounted Straight 4 Arm Telescopic Crane China CLW 10 Wheels Hoisting Truck with Cranes
Truck mounted crane is the crane truck which equipped with the crane mounted on the cargo truck or dump truck for goods transporting and lifting at meanwhile.


The truck with crane could be equipped with telescopic boom crane or knuckle boom crane, which brand could be Chinese brand or imported brand on the different brand of the chassis. The van body could be customized due to your requirement.
Description Get quotation

12 Tons Truck Mounted Straight 4 Arm Telescopic Crane China CLW 10 Wheels Hoisting Truck with Cranes

Truck mounted crane is the crane truck which equipped with the crane mounted on the cargo truck or dump truck for goods transporting and lifting at meanwhile.

The truck with crane could be equipped with telescopic boom crane or knuckle boom crane, which brand could be Chinese brand or imported brand on the different brand of the chassis. The van body could be customized due to your requirement.

General Technical Parameters

Overall Dimension

11950X2500X3850 (mm)

Gross Vehicle Weight

25000(Kg)

Curb Weight

14110(Kg)

Chassis Specification

Chassis Brand

CLW Brand

Drive model

6*4

Cabin

Single, Left Hand Driving, with air conditional

Number of Passengers

3

Engine

Model

YC6A260, 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR

Power

191KW/260HP

Emission standard

EURO 3

Displacement

7250(ml)

Fuel type

Diesel

Gearbox

Fast, 8Forwards & 1Reverse

Brake System

Air break

Wheel Base

4350mm+1300mm

Front/Rear Axle Loading

5000/10000(Kg)

Approach/Departure Angle

23/12(°)

Overhang

1250/3545(mm)

Tire

11.00-20,

Max Driving Speed

85(km/h)



Upperstructure Specification

Cargo Body

Dimension

8500×2290×550(mm)

Material

Q235 carbon steel

Cargo Thickness

Side 1.5mm, Bottom 2.5mm

Volume

10m³

Working System

Boom Type

Straight 4-Arm telescopic boom

Crane

Crane Brand

SQS300-4(XCMG)

Range of Sprayer

30m

Max Lifting Moment

25(T.M)

Max Lifting Capacity

10000(kg)

Max lifting height

12(m)

Rotation angle

360(°)

Installation space

1150(mm)

Recommented power

30(kw)

Maximum working pressure

26(Mpa)

Max Flow

63(l/min)

Crane weight

3800(kg)

Oil tank capacity

160(L)

Leg

Leg type

H type

Leg Span

2.28-5.9(m)

Hydraulic system

Pressure

18(M pa)

Capacity

70(l)

Other Configuration

Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.

Options

Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
