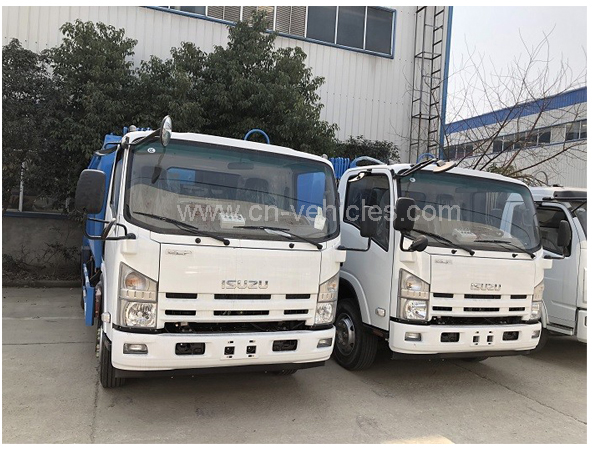

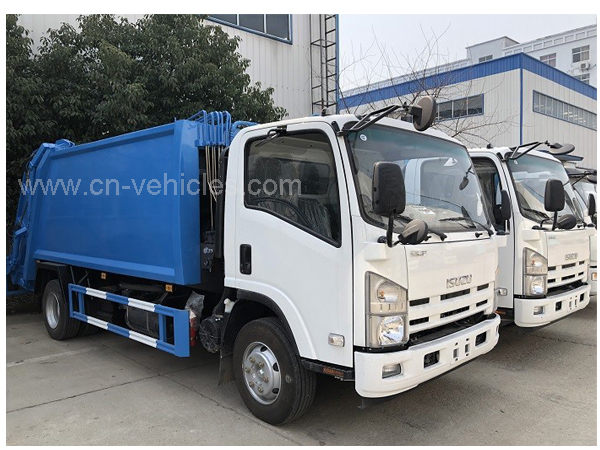

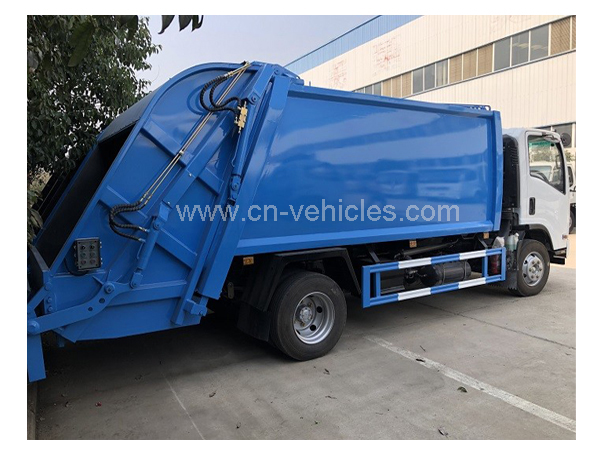

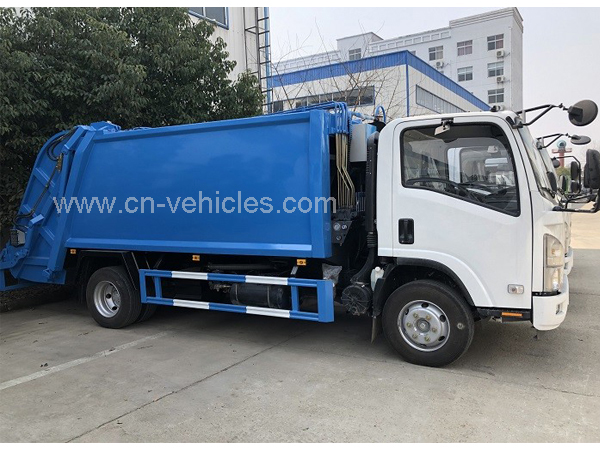

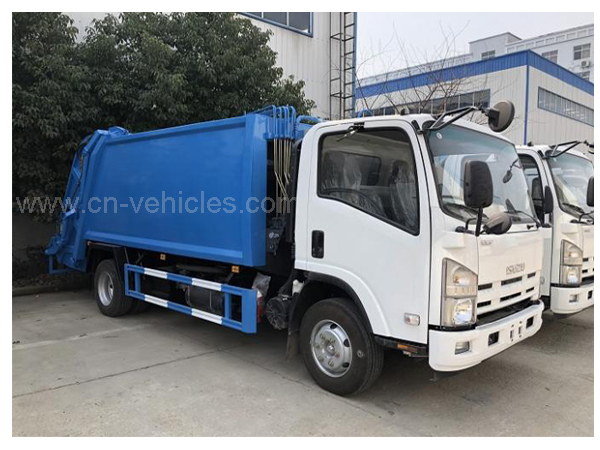

Isuzu 100p 98HP 4 Tons 4cbm Rear Loading Refuse Waste Compactor Truck for Export
Self Compressed with Rear Loading with different mechanism: Barrel, Steel Container, etc
Leakage Proof Container Design to avoid the pollution.
Hydraulic Control Loading & Unloading System
Automatic Key Control & Hydraulic Handle Control
Best Choice for Garbage Transportation Inside City.
Description FEEDBACK
ISUZU 100P 98hp 4 Tons 4Cbm Rear Loading Refuse Waste Compactor Truck For Export


Self Compressed with Rear Loading with different mechanism: Barrel, Steel Container, etc
Leakage Proof Container Design to avoid the pollution.
Hydraulic Control Loading & Unloading System
Automatic Key Control & Hydraulic Handle Control
Best Choice for Garbage Transportation Inside City.


Tank Material: Carbon Steel Q235B Truck Engine: ISUZU Diesel 130HP
Truck Brand: ISUZU Tire: 6 Pcs With One Spare
Cabin: With A/C Painting: Customized
Steering: Lhd,left Hand Drive Gearbox: 5 Forward & 1 Reverse



Technical date :
I. Vehicle Parameter
Model/name ISUZU 100P 98hp 4 Tons 4Cbm Rear Loading Refuse Waste Compactor Truck For Export
Gross weight(Kg) 7300 Overall size(mm) 6520×2100×2600
Payload(Kg) 200 Tank size(mm) /
Curb weight(Kg) 5050 Wheelbase(mm) 3360
Cab seats 2 Max speed(Km/h) 110
II. Chassis parameter
Chassis model QL1070 Brand name ISUZU
Manufacturer Isuzu Motors (Group) Co., Ltd.
Drive type 4 x2 Steering Wheel Left hand drive
Tyre number 6+1(spare Tyre) Tire specification 7.00-16
Fuel Type Diesel Emission Standard Euro III/Euro IV/ Euro V
III. Engine parameter
Engine model Engine manufacturer Displacement Power
4KH1-TCG51 Isuzu Engine Co. Ltd. (Chongqing) 2999ml 88kw
IV. Performance
Body capacity 4 m³ Hopper capacity 0.8 m³
Compression cycle time 30s Unload garbage time 40s
Control system Manual + Automatic Gear box 5 forward


The above mentioned figures are approximate.
  • Optional equipments are included in these photographs
  • Specifications and dimensions are subject to change without notice.
  • Material : Anti-corrosion Steel
  • Material : Anti-corrosion Steel or High-tensile Steel
  • Material : High-tensile Steel
