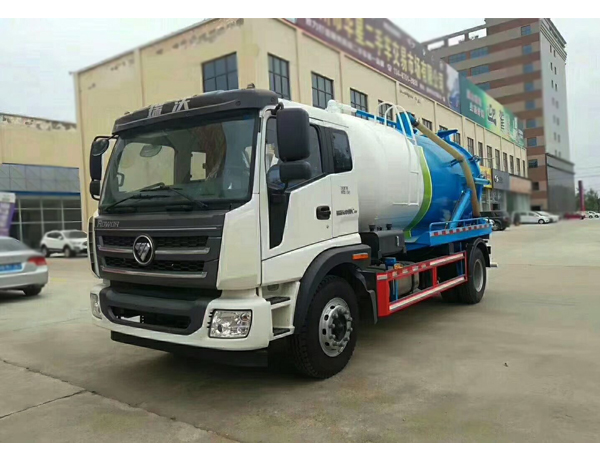

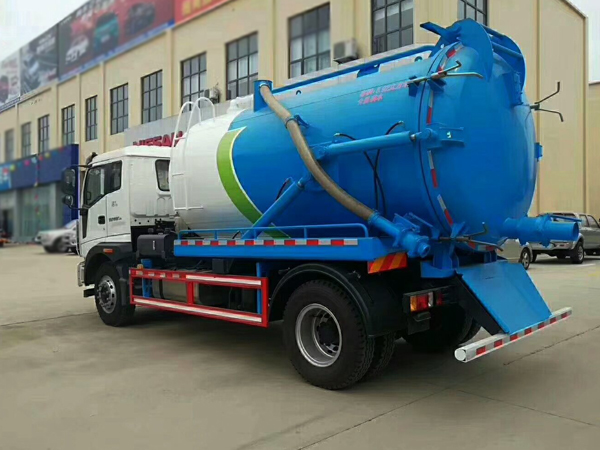

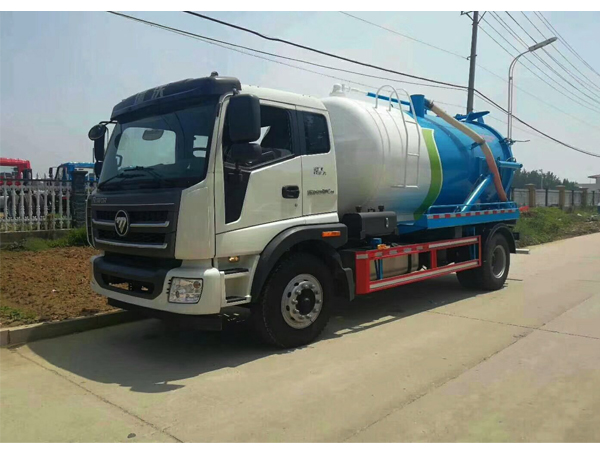

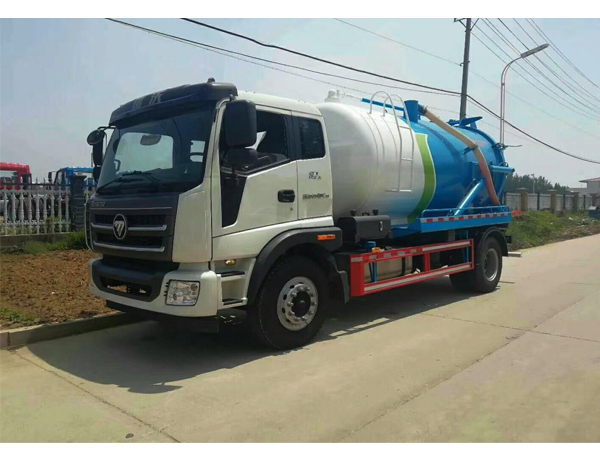

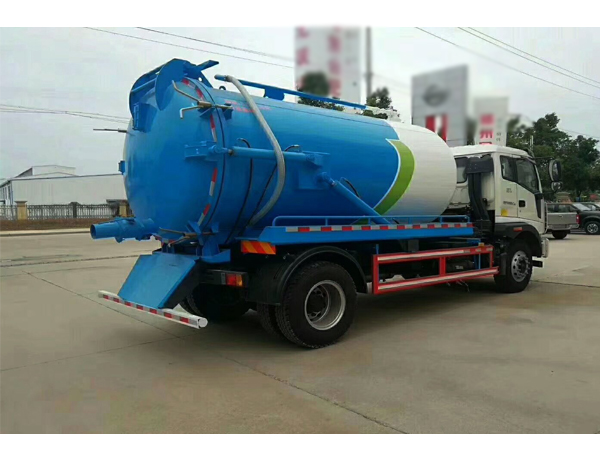

Vacuum Trucks consist of Chassis, PTO, shaft, vacuum pump, pressure tank, hydraulic parts, pipe network system, vacuum gauge, and other components. High quality vacuum pump and hydraulic systems equipped on truck. The vacuum tank seal pressed at one time and which can open from rear tailgate and dumping. Its function has high vacuum degree, large tonnage capacity, high efficiency,ect, which can be used at wider fields, such as urban, water collection well, manholes,ect. Sewage inner tank can be shipped and exhaust discharged directly. New FOTON

Engine
Model	Phaser180Ti-30
Rated power / horsepower	134kw/180kw
Displacement	5,990L
Transmission
Model	8JS
Brand	FAST
Gears	8gears+1reverse
Dimension
Overall size (LxWxH)	7,850x2,450x3,250mm
Wheelbase	4500mm
Tire size / tire numbers	9.00-20/6+1spare tires
Chassis
Model	BJ5163
Brand	FOTON
Total mass / curb mass	15,800/7,005kg
Driving type	4x2
Max. speed	90km/h
Main Vacuum Tank Assembly Parts
Vacuum tank cubage	8,000L
Vacuum tank material	Carbon steel
Valid suction distance	<8m
Vacuum pump model	68/7000
Vacuum pump brand	China Weilong double pumps
Vacuum pump flow	5.3m3/min
