Sinotruck HOWO 16 Cubic Meter Vacuum Suction Sewage Truck
Sewage Tanker Truck,Sewage Suction Truck Jetting Truck Septic Tank Truck Vacuum Sewage Suction Tank Trucks also named septic truck, Vacuum suction truck.

Mainly used to suction, transport and discharge the sewage, dirty water, fecal within the sewer, rain water, inspection wells, septic tanks and various channels and excrement or petrochemical plant waste water.
The vacuum pump can self-priming, self-discharge.
The Jetting Truck can be hydraulic self-dumping, the rear cover can be opened.
Sewage suction truck is high vacuum suction well.

Description FEEDBACK

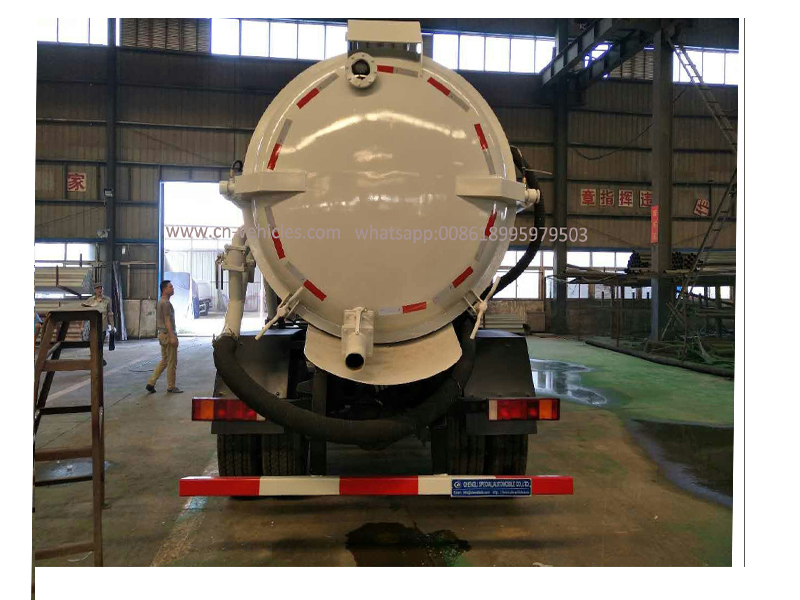

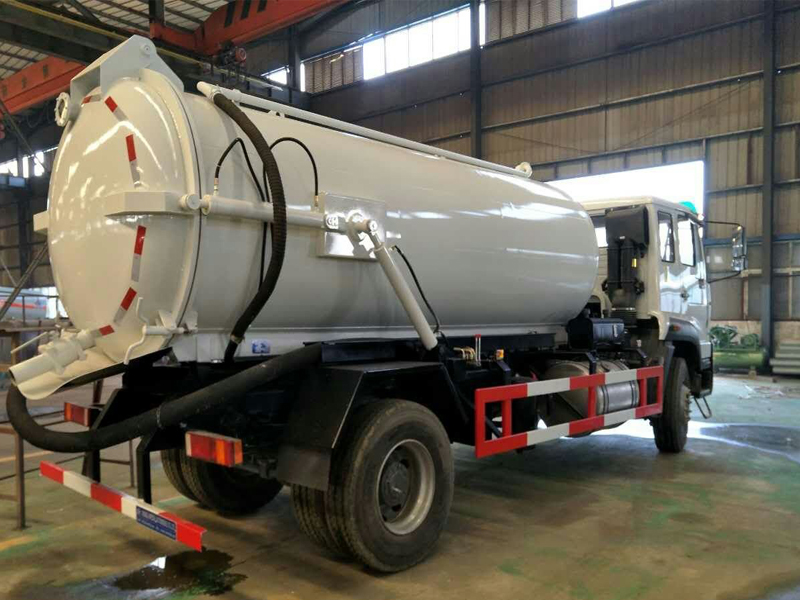

Sinotruck HOWO 16 Cubic Meter  Vacuum Suction Sewage Truck

Sewage Tanker Truck,Sewage Suction Truck Jetting Truck Septic Tank Truck Vacuum Sewage Suction Tank Trucks also named septic truck, Vacuum suction truck.

Mainly used to suction, transport and discharge the sewage, dirty water, fecal within the sewer, rain water, inspection wells, septic tanks and various channels and excrement or petrochemical plant waste water.
The vacuum pump can self-priming, self-discharge.
The Jetting Truck can be hydraulic self-dumping, the rear cover can be opened.
Sewage suction truck is high vacuum suction well.

Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design


sewage Suction Tanker Truck
Chassis type ZZ1164H3615C
Cubage(m3) 10
Parameters Overall dimension length/width/height (mm) 7850*2490*3200
Total Mass(kg) 16000
Payload(kg) 6000
Kerb Mass(kg) 8510
Approach angle/ Departure angle(mm) 24.5/41
Front suspension/rear suspension(mm)  1250/1460
Fuel Type diesel
Fuel Consumption/100 km
Max Speed 99
Engine Type YC6J190-33, YC6J220-33
Displacement/Power(kw) 5900cc/140(190hp), 6494cc/162kw
Manufacturer Guangxi Yuchai Diesel Engine Co.,Ltd
Type
Chassis Drive type 4×2
Wheelbase(mm) 3800,3600
Tread(front/rear) 2020/1850
Front axle 5 Ton
Rear axle 10 Ton
Steering gear Duel-armed steering wheel, power steering
Transmission 9 gear mechanical drive transmission
Clutch Diaphragm clutch, hydraulic remote control, pneumatic servo
Braking system Split air braking system, spring braking, exhaust braking
Cab Non-longheaded, one and a half row cab,whole metal-enclosed
Number of spring axle(front/rear) 11/10+10
Tire Type 10.00-20,10.00R20, 11.00-20, 11.00R20
Air-condition Choose to fix
Sucking system Sucking pump Sliding-vane rotary vacuum pump
Special performance parameters Vertical suction range ≥8
Absolute pressure 8500Pa
Rotation speed 500
Theory pumping speed 98L/S
Axis power 5.5kw
Vent dia 50mm
Suction Time 5s
Drain time 4s


Application:
