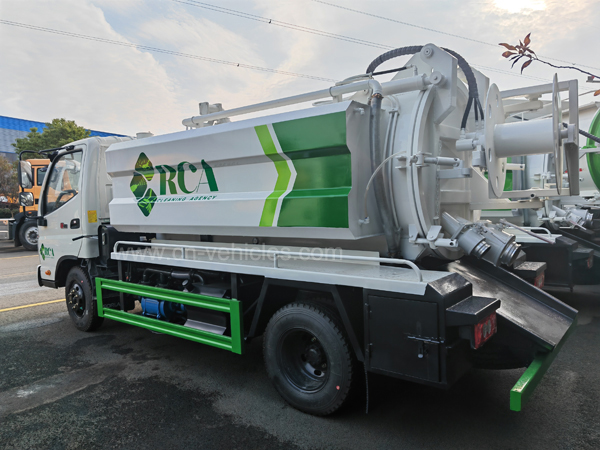

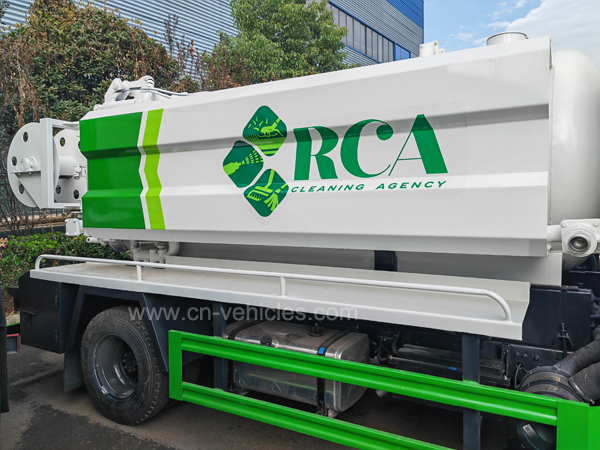

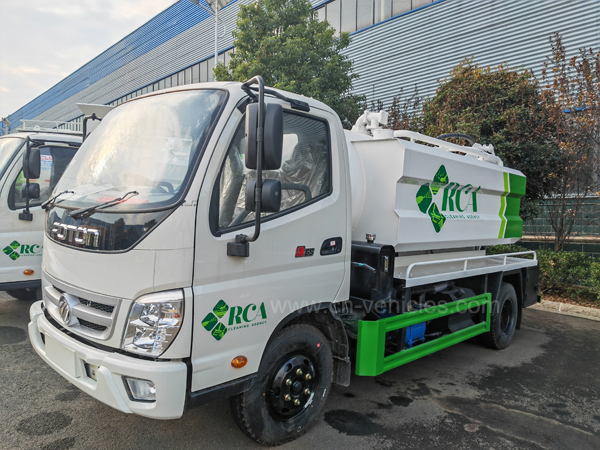

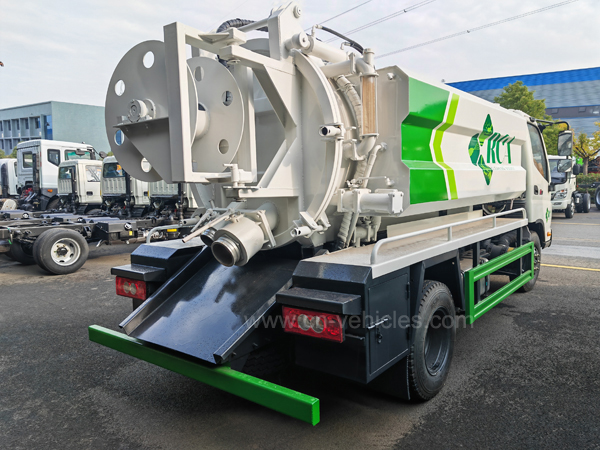

Foton RHD 6CBM High Pressure Combined Suction and Jetting Sewage Cleaner Truck

Truck Chassis Advantage:

-High Quality Chassis Series-FOTON Aumark;

-Good Quality Yuchai or Cummins Engine in 180HP ~220HP;

-FAST Gearbox Suppling large powe Output in Big Speed Ratio;

-High Speed Gear with Low Fuel Consumption.

Description Get quotation

Foton RHD 6CBM High Pressure Combined Suction and Jetting Sewage Cleaner Truck

Truck Chassis Advantage:

-High Quality Chassis Series-FOTON Aumark;

-Good Quality Yuchai or Cummins Engine in 180HP ~220HP;

-FAST Gearbox Suppling large powe Output in Big Speed Ratio;

-High Speed Gear with Low Fuel Consumption.

Sewage System Advantage:

-Large volume sewage tank 6000L with High Pressure Design;

-2000L Wate with Side Installed Design Low Gravity Center;

-Famous Italian Jurop &BP, American Moro Vacuum Pump in 2400L/Min;

-High Pressure Chinese Brand Water Pump 300L/min, 18Bar Pressure;

-Hydraulic Arm for easier sewage hose handling;

-Remote control system.

Cabin		Left rudder/half row
Whole vehicle main dimensions	Overall dimensions (LxWxH)mm	8255×2460×2820
Whole vehicle main dimensions	Wheel base(mm)	43360
Weight data	Curb weight(kg)	5440
	Gross vehicle weight(kg)	22000
	Persons in cab (persons)	2
Engine	Model	YC6A240-33
	Emissions standards	Euro III
	Displacement(L)	7.255L
	Rated Power	177
	Max torque	900
Gearbox	Model	8JS105TA
Clutch	Type	Single dry diaphragm spring
Front axle	Type	5.5.T
Rear axle	Type/Mainreducetion ratio	10T/4.875
Suspension	Front suspension/Leaf spring number	Non-independent suspension longitudinal plate spring /10
Suspension	Rear suspension/Leaf spring number	Non-independent suspension longitudinal plate spring /10+8
Brake system	Service brake	Drum-type pneumatic brake
Brake system	Parking brake	Barely able to brake
Basic equipment		Hydraulic Turnover/Cruise + 135A.H Battery/Manual Air Conditioners/Tuberless Tire (Inch) 11R22.5/ Manual Doors, Windows and Rearview Mirrors /MP3 / Power Steering/Knit Shock Absorber Seat (Spring)
