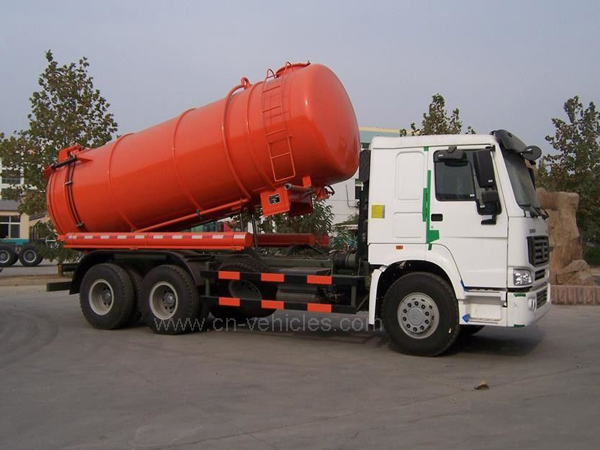

Sinotruk HOWO Vacuum Suction Truck With Jetting Cleaning KEG Pipe Nozzle 12m3 Tanker
Sewage Vacuum truck  (also called Suction vacuum truck, vacuum vehicle, Japanese sewage tank truck, Sewage disposal tank trucks, vacuum tank trucks) is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.
Description Get quotation

Sinotruk HOWO Vacuum Suction Truck With Jetting Cleaning KEG Pipe Nozzle 12m3 Tanker

Sewage Vacuum truck  (also called Suction vacuum truck, vacuum vehicle, Japanese sewage tank truck, Sewage disposal tank trucks, vacuum tank trucks) is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.

Vacuum Tank truck made by Power star Trucks is necessary for city sanitation department, waste processing company, big factory..., it can help to clean the sewer pipe underground, clean the sludge in the river around city, it also can help big factory to clean the greasy dirt and waste water.More specification about the vacuum tank please kindly refer to following information.

Product Description
1. Vacuum Sewage Suction Truck for off road use.
2. High quality truck chassis, as well as famous chinese brand Sinotruk, JAC, Dongfeng, etc
3. Full Wheel Driving with 11R22.5 Tire or 12R22.5, special design for off road.
4. Long last wind cooling vacuum pump in Word Best Brand Italian Jurop pump.
4. 12,000liter tank capacity which can carry about 8Ton to 10ton sewage.
5. Self Tipping system with rear openning door, With rubber pipe for rust resistant.

Sinotruk HOWO Sewage Suction Truck

Overall Dimension

9300 x 2500 x 3500 mm

Wheel Base

4300+1350mm

Curb Weight

9500kg

Loading Weight

10,000kg

Cabin

HW76 Standard Cabin, RHD, 1 Sleeper, Air Conditioner, 3 Passengers,

Engine

SINO Truck Diesel WD615.46, Euro II, 371HP

Watering Cooling, Four Stroke, 6 Cylinder in Line, Direct Injection

Gearbox

HW13710, 10 forwards & 2 reverse

Clutch

Reinforced diaphragm clutch, diameter 430mm

Steering Gear

ZF 8118,power steering, hydraulic steering with power assistance

Tire

11R22.5, all tubeless tires with one spare , 6 pieces with 1 spare

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on

rear wheels, Auxiliary brake: engine exhaust valve brake

Sewage Suction System

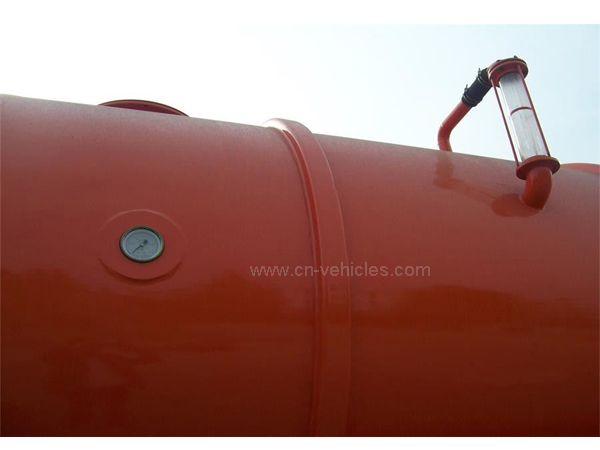

Sewage Tanker

Capacity

12 cubic meter

Material

Q235 high tension steel, 5mm Tank body and End Plate,

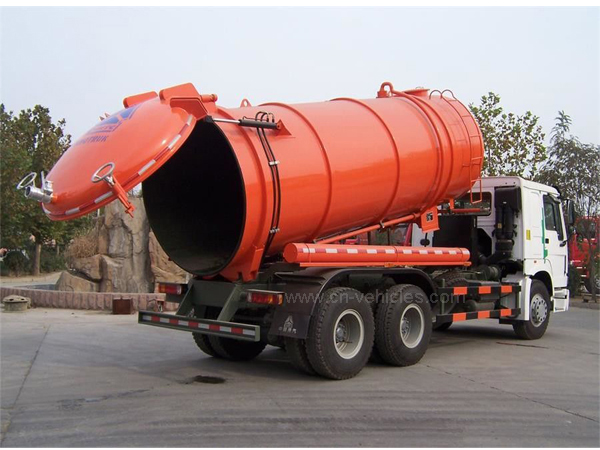

Dumping System

Middle Tipper

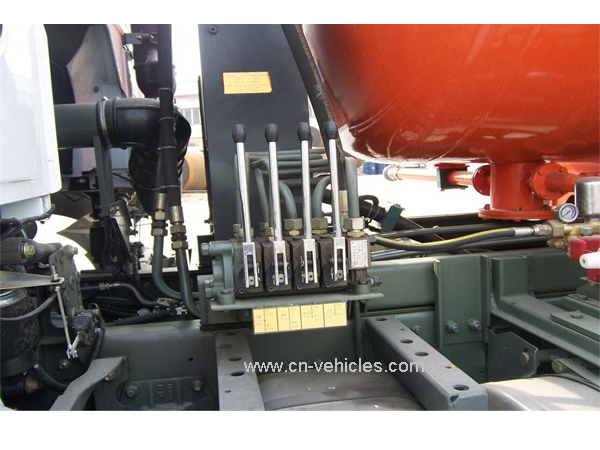

Hydraulic Controlled Rear Door and Middle lifting.

Rear Door

Hydraulic controlled with sewage drain pipe

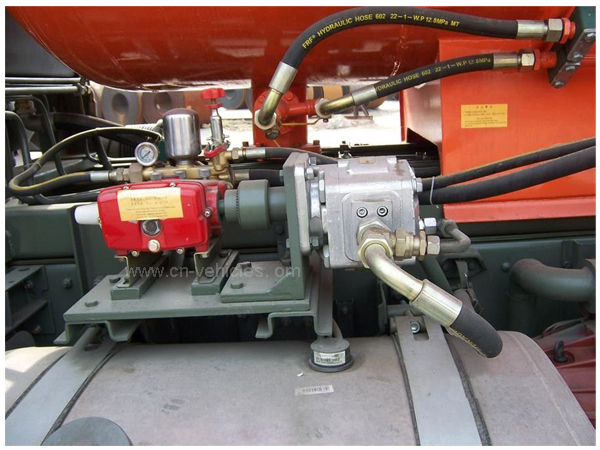

Pump

High Efficiency Italian Brand Jurop PN84D Vacuum Suction Pump

Vacuum Pressure

-0.092Mpa

Sewage Pipe

5 meters Rubber Pipe

Other Parts

Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device
