| Brand Name: | CLW |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

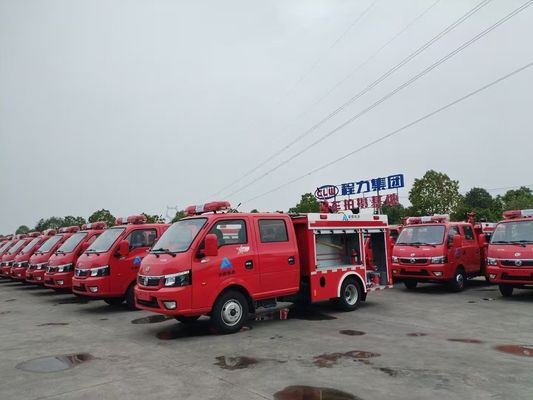

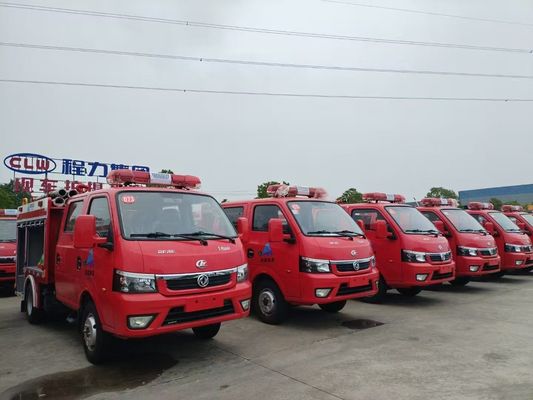

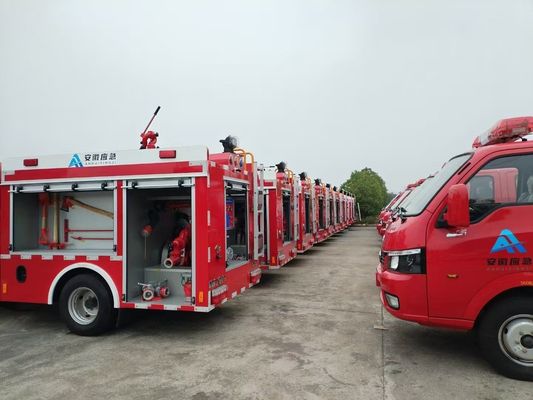

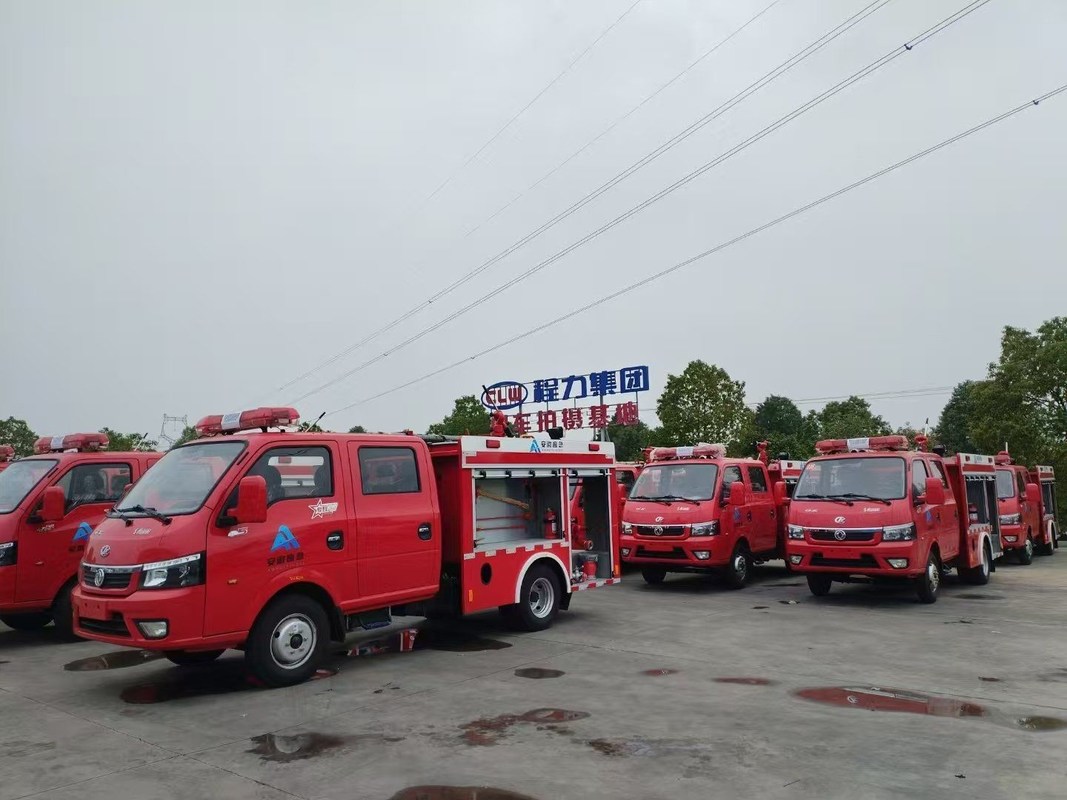

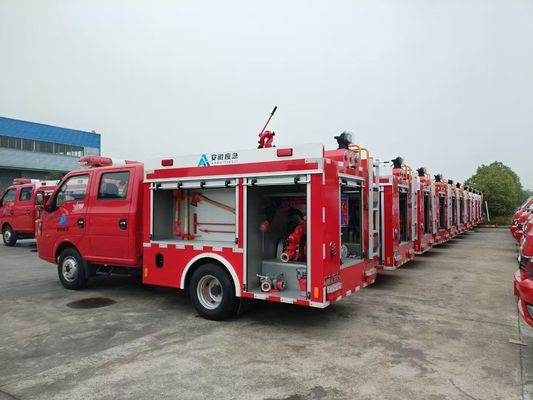

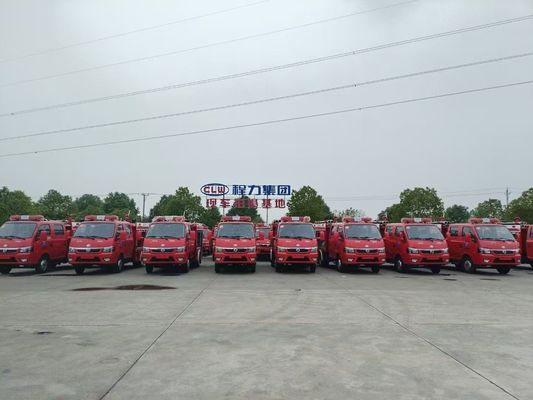

This Dongfeng fire fighting truck is manufactured by Chengli Special Automobile Co., Ltd. It is configured with a 1,000-liter water tank and designed for rapid first-response firefighting in urban, rural and industrial areas.
The Dongfeng 6-Wheel 1,000-Liter Water Tank Fire Fighting Truck is a compact diesel fire rescue vehicle manufactured by Chengli Special Automobile Co., Ltd. in China. Built on a Dongfeng 4×2 chassis with six wheels, the truck is designed for rapid first-response firefighting in urban communities, villages, industrial facilities and areas with narrow roads. Its 1,000-liter water tank provides an onboard water supply for initial fire suppression, while the fire pump and water monitor can be configured according to the customer's required flow rate, pressure and operating conditions. Chengli Special Automobile supports customized specifications and export orders for international fire departments, contractors, municipalities and industrial users.
| Key Specifications (Approximate) | |
|---|---|
| Component | Detail |
| Chassis | Dongfeng (various light-duty models like EQ1040) |
| Drive Type | 4x2 (6 wheels, 4 driving wheels—though small trucks often have 4 wheels with a dual rear axle to make 6 total) |
| Water Tank Capacity | 1,000 Liters (1 Tonne) or close variations (e.g., 2,000L/2 Tonnes) |
| Water Tank Material | High-quality Carbon Steel (often with anti-corrosion treatment), or optional Stainless Steel/PP |
| Cab Type | Double-row, four-door passenger compartment (allows for 4-6 crew members) |
| Engine | Diesel engine (e.g., in the 100-130 horsepower range) |
| G.V.W. (Gross Vehicle Weight) | Approximately 4,000 kg to 6,600 kg (4 to 6.6 tonnes) |
| Max Speed | Approx. 90 km/h to 100 km/h |
| Fire Fighting Capabilities | |
| Component | Specification |
| Fire Pump Model | CB10/20 (Normal Pressure Pump) or similar |
| Fire Pump Flow Rate | Typically 20 L/s at 1.0 MPa |
| Fire Monitor (Water Cannon) | Model PS20 or similar |
| Water Jet Range | ≥45 meters |
| Suction Depth | ≥7 meters |
| Piping System | Equipped with a sandwich Power Take-Off (PTO), full pipeline system, inlets, and outlets. |
| Model | Parameters | others | |||||
|---|---|---|---|---|---|---|---|
| Overall Dimension | 7660×2500×3460 | ||||||
| GVW | 15560kg | ||||||
| Engine Model | Dongfeng | ||||||
| Engine Power | 177kW | ||||||
| Wheelbase | 4500mm | ||||||
| Driving Type | 4X2 | ||||||
| Max.speed | 90km/h | ||||||
| Emission Standard | 7790 ml | Euro2 | |||||
| Passengers | 1+1+4 | ||||||
| Fire pump rated flow | 60L/S@1.0Mpa;30L/S@2.0Mpa | Vacuum pump | |||||
| water monitor rated flow | 48-64L/s | Adjustable | |||||
| Water monitor range | Water range≥60m,foam≥55m | ||||||
| Approach angle | ≥16° | ||||||
| Departure angle | ≥23° | ||||||
| Item Parameters | Parameters | others | |||||
| 1 | Water tank capacity | water | 3000 | Built-in type | |||
| Foam tank capacity | foam | 2000 | |||||
| 2 | Fire pump model | CB20·10/30·60 | Shanghai rongshen | ||||
| 3 | Fire pump performance | condition | Pressure1:1.0Mpa flow:60L/S Pressure2:2.0Mpa flow:30L/S |
Use vacuum pump to priming water | |||
| 4 | the installation site of fire pump | rear | |||||
| 5 | The quantity of fire pump water outlet | 6 | |||||
| 6 | Pressure gauge | 0-1.6 Mpa, 0-2.5 MPa | 2.6 level | ||||
| 7 | Vacuum gauge | -0.1- -1 MPa | 2.6 level | ||||
| 8 | Water monitor (PL48-64YZ) |
water | Flow: 48- 64L/S |
Range:60m | Shandong zhangqiu | ||
| foam | Range:55m | ||||||
| Depression/Elevation angle | -30-+70° | ||||||
| Turning angle 360° | |||||||
| 9 | PTO Model | YTQ590K type full power sandwich , pneumatic | |||||
A 1,000-liter (approx. 264-gallon) fire truck is a light-duty, fast-response vehicle designed for scenarios where speed and compact sizing are priority over bulk water capacity:
Narrow Urban Streets & Old Towns: Navigates tight alleyways, congested residential zones, and historic centers inaccessible to full-sized municipal fire engines.
Industrial Parks & Warehouses: Serves as an immediate inside-facility response vehicle to contain localized chemical or electrical fires before major systems arrive.
Rural Villages & Small Farms: Ideal for rapid intervention on unpaved or tight country roads, preventing grass, brush, or small structure fires from spreading.
Commercial Properties & Resorts: Deployed for initial fire protection at large hotel complexes, construction sites, and remote infrastructure setups.
Municipalities & Town Councils: Local fire departments needing a quick-response "first-out" unit to suppress fires during the critical initial minutes.
Private Enterprises & Factories: Manufacturing plants, chemical sites, and logistic hubs looking for on-site fire compliance and rapid incident response.
Property Developers & HOA Boards: Gated communities, golf courses, and resort managers requiring dedicated on-property emergency equipment.
Government & Forestry Agencies: Used as light patrol vehicles for early-stage wildfire and brush containment.
Yes, it is highly suitable.
A 6-wheel (4×2 dual rear wheel) Dongfeng light-duty fire truck is built specifically for high maneuverability:
Compact Footprint: Typical dimensions measure around 5.7m (L) × 1.8m (W) × 2.4m (H), keeping the overall width under 2 meters so it easily passes through tight access points.
Tight Turning Radius: Built on a short wheelbase (~3,000 mm), allowing sharp turns around narrow intersections and tight street corners.
Agile Handling: The lightweight chassis makes it much faster to park, turn around, and position in crowded environments compared to heavy 3-axle fire tenders.
Liquid Tank Capacity: 1,000 Liters (1 Ton / ~264 Gallons).
Configuration Options:
Pure Water Tanker: 1,000L water capacity.
Water/Foam Combination (Custom): Split configuration (e.g., 800L water + 200L foam tank).
Firefighting Output Performance: Paired with standard medium/high-pressure pumps (e.g., CB10/20 rated at 20 L/s flow), the onboard 1,000L tank provides ~1 to 2 minutes of continuous high-pressure discharge via the roof monitor (throw range ≥45 meters) or longer operational time using regulated handline hose nozzles.
Fire trucks built on commercial chassis (such as Dongfeng) offer extensive customization options to match international destination standards and local fire authority requirements:
Drive Orientation: Available in both Left-Hand Drive (LHD) and Right-Hand Drive (RHD) configurations.
Engine & Emission Compliance: Tailored to destination market requirements ranging from Euro 2/3 up to Euro 5/6 emission standards.
Tank & Body Material: Options for 304 Stainless Steel, Carbon Steel, or Polypropylene (PP) anti-corrosion tanks depending on local water quality and chemical requirements.
Equipment & Fittings: Outfitted with local coupling standards (e.g., Storz, BS336, NH/NST Thread, or Camlock), along with custom tool storage layouts, English/bilingual control labels, and regional lighting/siren packages.
The Dongfeng "6 Wheels 1 Ton" Fire Fighting Truck is a compact, customized vehicle, typically with a 1,000 Liter (1 Ton) water capacity, built on a light-duty Dongfeng commercial chassis.
The "6 wheels" refers to the dual rear tires on a single axle, making it a standard 4x2 drive configuration but with six total tires/wheels.
Here are the detailed production and technical specifics for this type of vehicle, often designated with a model number like EQ1040D16DC for the chassis.
The Dongfeng 6-Wheel 1-Ton Fire Fighter Vehicle with a water tank (often categorized as a light or mini fire truck with a 1,000-liter capacity) is primarily designed for rapid first response and operations in environments where larger fire trucks have difficulty maneuvering.
Its key applications include:
Chengli Special Automobile Co., Ltd. is a major, large-scale manufacturer in China's special-purpose vehicle industry. It is a core enterprise of the CLW Group and is recognized as one of the top private enterprises in China.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Chengli Special Automobile Co., Ltd. has a significant and expanding presence in the global special vehicle market, with its products exported to a large number of countries across multiple continents. The company actively seeks to align with international development initiatives, such as the "Belt and Road" construction.
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.
