| Brand Name: | Shacman X3000 |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

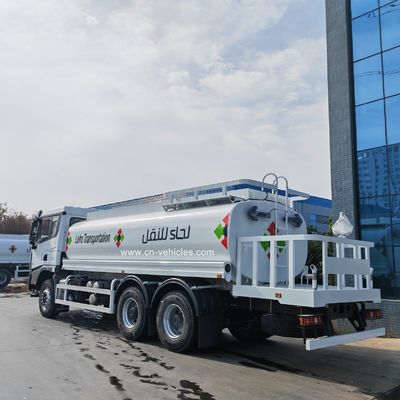

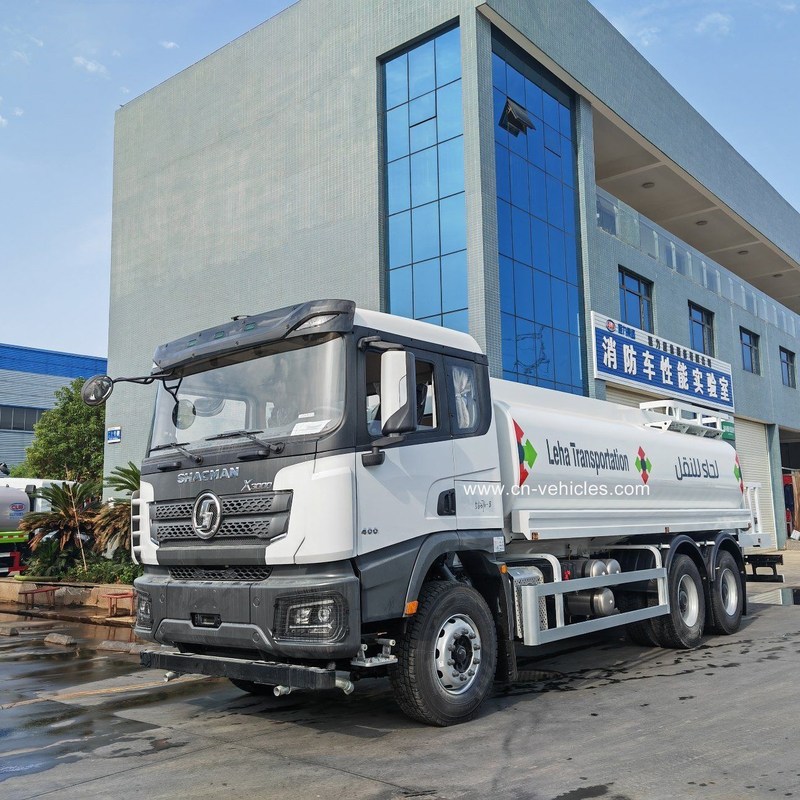

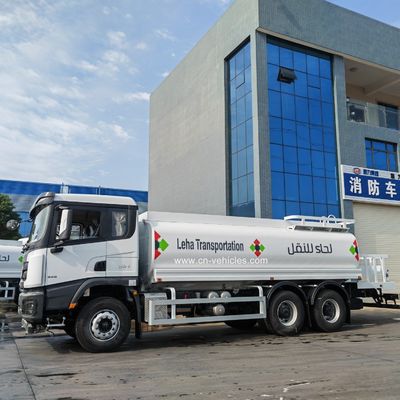

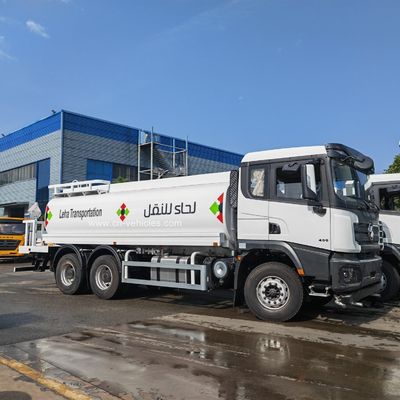

Shacman X3000 400HP 20000liter 10 Wheels Heavy Road Sprinkler Sanitation Water Tanker Truck
Water Pump: Equipped with a powerful self-priming pump for high-efficiency loading and discharging.
Sprinkler Nozzles:

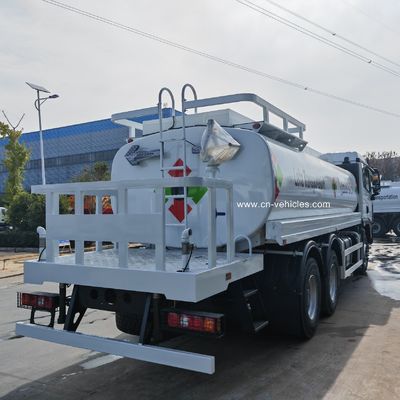

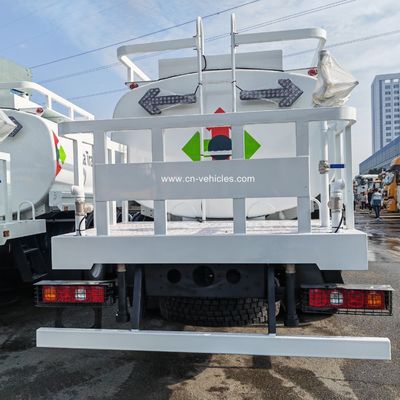

Safety & Access: Includes a rear working platform with a ladder, manholes for tank access, and fire hydrant joints for quick water intake.
water bowser fire fighting truck, which is also called watering truck, water tanker truck, water spraying truck, water tank truck, water sprinkler truck, fire fighting water truck, etc.
The water tanker truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water tanker truck is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also , the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain, moderate rain, heavy rain, etc. The spraying width of clw water truck is more than 15m and the cannon range is more than 25m.
As a professional water sprinkling truck supplier in China, besides normal water bowser truck, we also have multifunction water truck, such as water truck mounted crane, water truck mounted aerial working platform, etc.
The water sprinkler truck for sale is from 3000 liters to 30,000liter. The tank material of water tank are stainless steel, carbon steel, aluminium alloy.
Shacman X3000 400HP 20000liter 10 Wheels Heavy Road Sprinkler Sanitation Water Tanker Truck Technical date:
| Category | Component | Specification | Notes |
|---|---|---|---|
| Vehicle Data | Model Type | Road Sprinkler / Water Tanker Truck | Based on the SHACMAN X3000 chassis |
| Drive Type | 6x4 (10 Wheels) | Two driving axles at the rear; suitable for heavy loads. | |
| Water Tank Capacity | 20,000 Liters (20 CBM) | Specified volume. | |
| Overall Dimensions (L x W x H) | ≈10,300*2,500*3,600 mm | Varies slightly based on specific body builder and accessories. | |
| Gross Vehicle Weight (GVW) | ≈25,000 kg | Maximum permissible weight (Curb weight + max payload). | |
| Curb Weight (Unladen) | ≈10,000 - 11,500 kg | Approximate weight of the empty truck. | |
| Max Speed | ≈90 - 99 km/h | ||
| Engine System | Engine Brand/Model | Weichai (e.g., WP12.400E201) or Cummins | Standard engine models that deliver 400 HP. |
| Rated Output Power | 400 HP (≈294 kW) | High power for heavy hauling and pump operation. | |
| Max Torque | ≈1,920 N⋅m at 1,000 - 1,400 rpm | For excellent climbing and acceleration performance. | |
| Displacement | ≈11.6 L | ||
| Emission Standard | Euro II / Euro III | Common standards for export models. | |
| Drivetrain | Transmission | FAST Manual (e.g., 10JSD series) | 10 or 12 forward gears + 2 reverse gears |
| Clutch | Φ430 mm Diaphragm-type, hydraulically operated with air assistance. | ||
| Front Axle | MAN Technology ≈7.5 tons | ||
| Rear Axle | MAN Technology ≈2*13 tons (Double Reduction) | High load capacity for the full water volume. | |
| Tire Specification | 12.00R20 or 12R22.5 (Radial) | 10 + 1 spare tires (for 6x4 drive). | |
| Tank & Sprinkling | Tank Material | Q235 Carbon Steel | Standard industrial grade, often 4 - 5 mm thick, anti-corrosion treated. |
| Internal Design | 3 - 4 Wave/Baffle Plates | To reduce water sloshing and enhance vehicle stability. | |
| Water Pump | High-flow self-priming sprinkler pump (PTO driven) | Flow Rate:≈60 m3/h | |
| Sprinkler Range | ≈12 - 16 meters (Front/Rear Spray) | ||
| Water Cannon Range | ≈28 - 35 meters | High-pressure jet for fire fighting/targeted cleaning. | |
| Cab & Safety | Cab Model | SHACMAN X3000 High-roof or Flat-roof | Full-floating suspension, air conditioning (A/C). |
| Brake System | Full Air Brake, Dual Circuit, Exhaust Brake | ABS is often optional, depending on the configuration. | |
| Steering | Hydraulic Power Steering (ZF Technology) | ||
| Fuel Tank (Diesel) | ≈400 L (Aluminum Alloy) | For the truck's operational fuel. | |
| Items | Descriptions | Specifications and Types |
|---|---|---|
| General | Truck Name | Water Truck |
| Drive Type | 6*4 | |
| Loading Weight (kg) | 31000 | |
| Curb Weight (kg) | 14200 | |
| Approx.Overall Dimensions (mm) | 11950*2500*3210 | |
| Engine | Engine Model | WP10.400E22 |
| Engine Brand | Wei Chai | |
| Fuel Type | Diesel | |
| Power | 400hp | |
| Emission Standard | Euro II | |
| Displacement(ml) | 9726 | |
| Engine Type | 6 cylinders in line, inter cooler, supercharged diesel engine | |
| Chassis | Chassis Brand | SHACMAN |
| Cabin | One row with single sleeper, titled, flat roof | |
| Tire No. | 12+1 | |
| Tire Specification | 12.00R20 Steel tire | |
| Axle No. | 4 | |
| Steering Wheel | Left hand drive with power-assisted | |
| Gear Box | FAST 12 speed forward with 2 reverse, manual | |
| Brake | Air brake | |
| Tank | Tank Volume(L) | 20000 |
| Tank Shape | Ellipse | |
| Tank Material | Carbon Steel or stainless steel 5mm thick for optional |
Shacman X3000 20000 Liters Water Tanker Truck 400HP 10 Wheels Water Sprinkler Truck details :
| Feature | Specification (Typical for 400HP, 6x4 Configuration) |
|---|---|
| Chassis Brand | SHACMAN X3000 Series |
| Drive Type | 6*4 (10 Wheels) |
| Engine Brand/Model | Likely WEICHAI (e.g., WP12 Series) or CUMMINS |
| Engine Power | 400 HP (Horsepower) |
| Engine Displacement | Approx. 11.596 L (for a WP12.400E201 example) |
| Transmission | Manual (e.g., FAST 12-speed with 12 Forward, 2 Reverse gears) |
| Maximum Speed | Approx. 90 - 99 km/h |
| Overall Dimensions | Approx. 9,900-10,300 mm (L) * 2,500 mm (W) * 3,400-3,600 mm (H) |
| Wheelbase | Approx. 4,600 + 1,350 mm or 4,565 + 1,370 mm |
| Gross Vehicle Weight (GVW) | Approx. 25,000 kg |
| Tire Specification | 12.00R20 or similar radial tires (10 tires + 1 spare) |
| Axles | Front: MAN 7.5T or similar (Single Axle) |
| Rear: 2 * 13T MAN double reduction axle or similar (Tandem Axle) | |
| Cab | X3000 series cab (Flat roof or high roof, with sleeper and A/C) |
| Fuel Tank | Aluminum alloy, capacity around 300L - 400L |
| Feature | Specification (Typical for 20,000L Model) |
| Tank Volume | 20,000 Liters / 20 CBM |
| Tank Material | High-quality Carbon Steel (e.g., 5mm thickness, Q235B) with anti-corrosion treatment |
| Pump Type | High-power Self-priming Centrifugal Water Pump (often a WEILONG or similar brand) |
| Water Suction Height | ≥7 meters |
| Full Tank Suction Time | ≤15 minutes (typical for standard pump) |
| Sprinkling Width | ≥14 meters (using front/rear/side sprinklers) |
| Water Cannon Range | ≥28 meters (using the high-position water cannon) |
| System Features | Front spray (duck/round head), Rear sprinkler (shower head), Side spray, Rear working platform, High-position water cannon (360° rotation), Fire coupling/joint, Self-flow valve. |
About Chengli Special Automobile Co., Ltd
| Feature | Details |
|---|---|
| Full Name | Hubei Chengli Special Automobile Co., Ltd. (often shortened to Chengli Special Automobile or CLW Group) |
| Year Established | 2004 |
| Headquarters | Suizhou City, Hubei Province, China (known as the "Capital of Special Purpose Vehicles") |
| Core Business | R&D, manufacturing, and sales of over 800 types of special-purpose vehicles and chassis. |
| Scale | One of the largest special vehicle manufacturers in Central China, with a large industrial park and thousands of employees. |
| Recognition | Recognized as a "National High-tech Enterprise" and a "China Top 500 Private Enterprise" (as part of CLW Group). |
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Chengli Special Automobile Co., Ltd Overseas Market
Africa:
Southeast Asia & Asia Market:
South America:
Middle East:
Eastern Europe/Eurasia:
Types of Exported Products
The vehicles exported often align with the core needs of municipal and industrial sectors in these countries, including:
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
