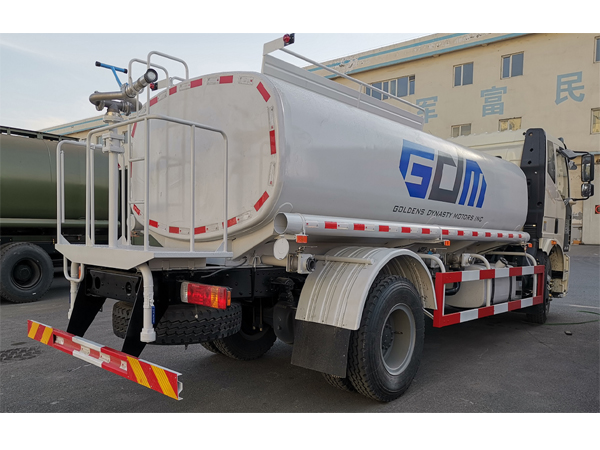

FAW Euro5 12000L 6 Wheels J6L FUEL TANK TRUCK

Overall (length*width*height)

8265*2500*2950

Gross weight(kg)

 17550

Kerb weight （kg）

7455

Engine Model

DEUTZ   CA6DH1-22E5

Power

220 hp

Wheel base

4800mm

Transmission Model

 8JS85F

Clutch

Ф395

Cab

J6L semi-floating roof semi-cab, electric glass lifting, electric rearview mirror, driver seat for ventilation seat, intermediate seat, new interior

Rear Axle

 Ф435 (ABS)

Gear ratio

4.111

Frame

237×75×(7+4)mm

Tire

10.00R20  18PR

About tank

12m3, the tank body adopts a ladder circular structure and spins the curved head; the cylinder body is 4mm, the head is 4mm, and the partition is 3mm. The tanks are all automatically welded. Two individual hole covers are provided on the upper part of the tank. The top of the tank is provided with a frame, the back of the tank is equipped with an escalator; the side is provided with a hose tube for storing the discharge pipe; the double warehouse with a pump, the subsea valve, and the 10 m reel of the refueling machine with a 1-inch oil gun.
