DongFeng KINGRUN KR Road Regenerative Air Street Sweeper

Vehicle performance and parameters

Item

Parameter

Unit

Working Performance

Max sweep width

3.5

m

Low pressure flushing width

24

m

Sweep speed

3—20

km/h

Max sweep capacity

70000

m2/h

Max inhalation of granularity

≥110

mm

Angle of unloading

≥48

。

Volume of water tank

3800

L

Volume of garbage tank

8000

L

Driving Performance

Max speed

98

km/h

Max gradeability

30

%

Braking distance

≤10

m

Min turning diameter

≤13.6

m

Fuel Performance

Fuel consumption(Driving)

≤12

L/100km

Fuel consumption(Sweep working at 8km/h)

6.5

L/h

2.7

L/10000m2

Quality Parameters

Curb weight

11070

kg

Rated capacity

4535

kg

GVW

15800

kg

Dimension Parameter

Overall dimensions

8300*2500*3060

mm

Wheelbase

4700

mm

Track front

1800

mm

Track rear

1800

mm

Front suspension

1430

mm

Rear suspension

2070

mm

Approach angle

24

。

Departure angle

15

。

Main parts and parameters

Chassis

Chassis model

DFL1160

Engine model

B190-33

Engine power

140kw/ 190hp

Clutch system

single disc, dry type, diaphragm spring clutch

Gearbox

8 speed

Driving axle

6000/10000kg

Cabin

DONGFENG one and half row cabin, with A/C

Tire

10.00-20

Vice-fan Engine

Brand

CUMMINS

Rated power

103 kw/140hp

Fuel type

Diesel, share with chassis fuel tank

Draught Fan

Type

high pressure centrifugal specialized draught fan

Rated speed

2600—2900r/min

Actuator type

Driveby vice-fan engine through transmission shaft, automatic clutch, narrow V type belt transmission

Hydraulic System

Type

open type and electrohydraulic control system

Main part

gear pump, cycloid motor, hydrocylinder, magnetic valve, hydraulic hand pump

Hydraulic relief pressure

15Mpa

Hydraulic oil tank

60L

Spray Watering

Main part

electric water pump, water filtration system, spray nozzle, water tank

Electric System

Composition

Madeof chassis electric system and vice-fan engine with other work operating system

Systemvoltage

12V

Battery model

12-80A.H

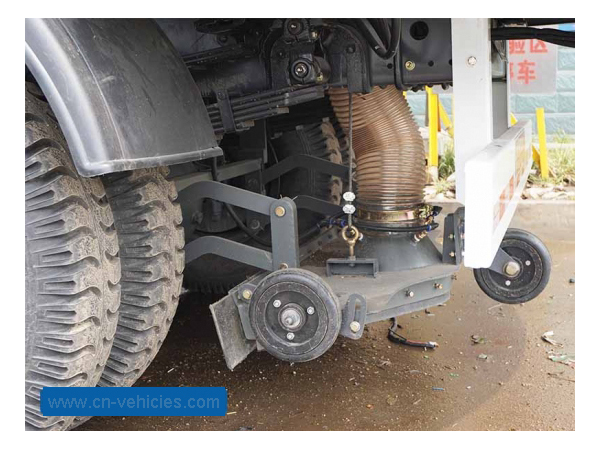

Suction Nozzle

Type

U-shaped, Free to move

Diameter

f200mm

Ground clearance in working

5—10mm

Accessories

LED arrows lamp

Schneider Control switch

Draught fan（maintenance-free）

Manual pump emergency system
