| Brand Name: | CLW |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

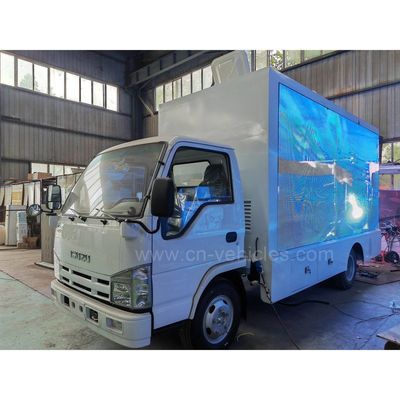

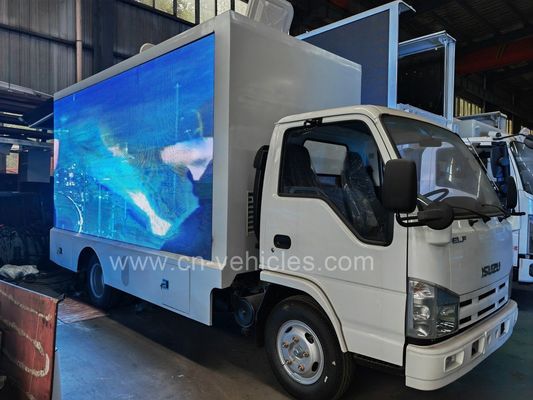

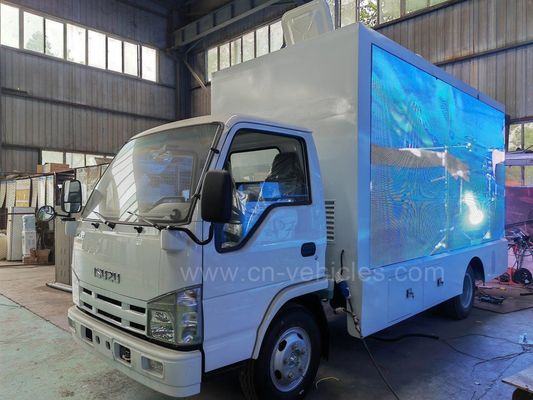

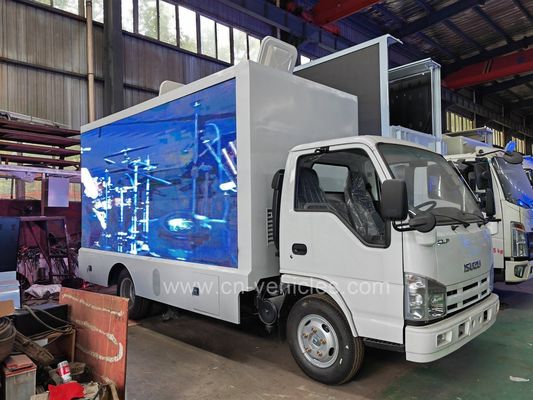

The Isuzu LED Display Billboard Truck, also known as a Mobile LED Advertising Truck or LED Screen Truck, is a specialized commercial vehicle built on an Isuzu chassis and equipped with large, outdoor-ready LED screens for dynamic, mobile advertising and event promotion.
Here is a summary of the key features and specifications:
Mobile Advertising Platform: The primary function is high-impact, moving advertising. The truck can be driven to high-traffic areas, events, and promotions for maximum audience exposure.
High-Quality LED Screens:
Pixel Pitch: Common outdoor-rated full-color LED screen pixel pitches include P4, P5, P6, and P8 (where a smaller "P" number means higher resolution).
Configuration: Typically features screens on one, two, or three sides (left, right, and rear). The rear may also have a simpler monochrome screen or a scrolling light box.
Visibility: The screens are generally waterproof (IP65 rating) and high-brightness (≥6000cd/m2) to ensure visibility even in direct sunlight.
Stage and Lifting Systems (Optional):
Some models include a hydraulic lifting system to raise the main side LED screen (often up to 1.5m) for better viewing or to transform the truck into a temporary stage for performances.
A retractable or foldable mobile stage can also be an optional feature.
Integrated Power and Control Systems:
Power: Equipped with a reliable super silent diesel generator (e.g., 8kW to 20kW) for self-contained operation. They can also use external household power when parked.
Control: Includes an industrial computer, multi-media control system, video processor, and an audio system with waterproof loudspeakers and an amplifier.
Vehicle Body and Cooling:
The advertising box body is typically a steel frame with features like aluminum patterned flooring, ventilation/cooling systems to manage the heat from the LED screens and generator, and an electrical distribution box.
LED display, also called led screen, led video wall, or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution, high brightness and full colour!
LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.Led display screen now are widely applied in media advertising, transportation, Security,Real estate and Stage show background.
| I. Chassis and Vehicle Specifications (Common Isuzu Models - e.g., 100P/ELF Series) | |
| Feature | Typical Specification Range |
| Overall Dimensions (L x W x H) | Approx. 5900×2050×2990 mm to 7100×2300×3800 mm |
| Gross Vehicle Weight (GVW) | Approx. 4,500 kg to 11,000 kg |
| Curb Weight | Approx. 4,300 kg to 9,800 kg |
| Wheelbase | Approx. 3360 mm (common) to 4700 mm (larger models) |
| Engine Type | Diesel, Isuzu 4JB1CN or 4KH1CN (or similar) |
| Engine Horsepower | Approx. 98 HP to 192 HP |
| Displacement | Approx. 2.77 L to 5.19 L |
| Emission Standard | Euro IV, Euro V, or Euro VI (market dependent) |
| Transmission | Manual, typically 5 or 6 forward gears (Isuzu MSB/MLD) |
| Drive Type | 4×2 (Rear Wheel Drive) |
| Max Speed | Approx. 90 km/h to 110 km/h |
| Tire Specification | E.g., 7.00R16, 7.50R16, or 8.25R20 |
| Brake System | Oil brake or Air brake (model dependent) |
| II. LED Display Screen Specifications | |
| Feature | Typical Specification Range |
| Screen Configuration | 1, 2, or 3 full-color LED screens (e.g., one on each side, one on the rear) |
| Main Screen Dimensions (L x H) | Common sizes range from 3456×1728 mm to 4800×2400 mm |
| Rear Screen Dimensions (L x H) | Smaller, typically around 1280×1440 mm to 1600×1600 mm |
| Pixel Pitch | P4, P5, P6 (most popular for mobile outdoor displays), also P8, P10 |
| Brightness | ≥6000 cd/m2 to 8000 cd/m2 (High brightness for daylight visibility) |
| Ingress Protection (IP Rating) | IP65 or higher (Waterproof and dustproof for outdoor use) |
| Screen Lifting System | Hydraulic lifting system (optional) |
| Lifting Height | Up to 1.5 m to 2.0 m above the truck body (for better visibility) |
| Lifespan | Up to 100,000 hours |
| Max Power Consumption | Approx. 1200 W/m2 |
| Average Power Consumption | Approx. 300 W/m2 to 600 W/m2 |
| III. Auxiliary and Control System Specifications | |
| Feature | Typical Specification |
| Power Source | Silent Diesel Generator (e.g., Kubota, Ouma brand) |
| Generator Power | Approx. 8 kW to 16 kW |
| Auxiliary Power | External 220V (single-phase) or 380V (three-phase) input connector |
| Media Control | Industrial PC, Video Processor (e.g., LINSN, NOVA), Media Playback System |
| Audio System | 4 or more waterproof speakers, Power Amplifier (e.g., 200W output) |
| Structure | 5cm composite steel frame body, internal ventilation/cooling system |
| Optional Features | Hydraulic folding stage, Scrolling light box, 4 units of hydraulic stabilizers |
| Chassis Specification | |||
| Item No. | Parameters | ||
| Drive model | 4x2, 6 Wheels | ||
| Overall Dimension | 5995*2040*2990(mm) | ||
| Chassis Brand | I SUZU 100P | ||
| Cabin | Single, Left Hand Driving, with ABS | ||
| Engine | Model | 4JB1CN, 4 Cylinders | |
| Power | 72KW/98HP | ||
| Emission standard | EUROIV | ||
| Displacement | 2771(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Brake System | Pneumatic | ||
| Steering Gear | Power Assistant | ||
| Wheel Base | 3360(mm) | ||
| Front/Rear Axle Loading | 2000/4800(Kg) | ||
| Approach/Departure Angle | 24/16(°) | ||
| Tire | 7.00-16 | ||
| Max Driving Speed | 100(km/h) | ||
| Upper Structure | |||
| LED Screen | Right LED Screen | 3840mm(L)*1728mm(H)=6.63m2 P6 full-color Screen | |
| Left LED Screen | 3840mm(L)*1728mm(H)=6.63m2 P6 full-color Screen | ||

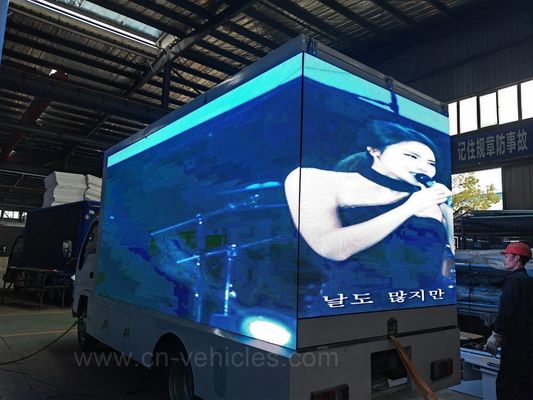

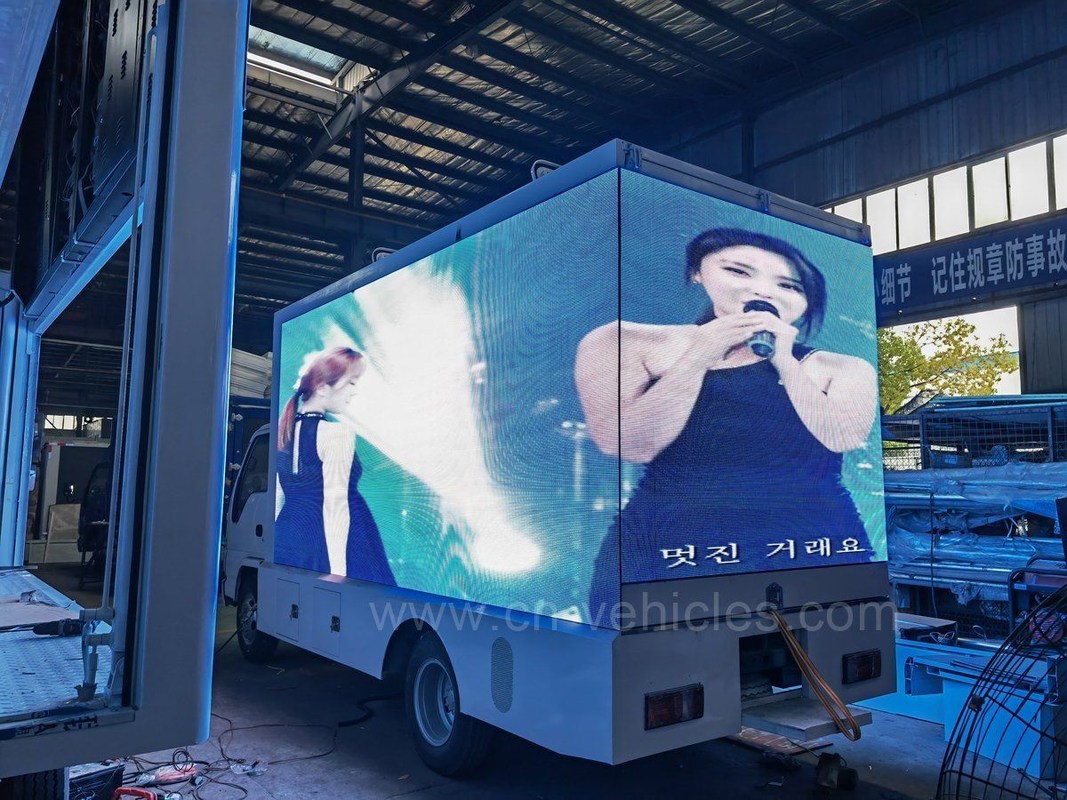

| Rear LED Screen | 1280mm(L)*1440mm(H)=1.84m2 P6 full-color Screen | ||
| P6 full-color outdoor LED display, waterproof, shake-proof, high brightness, long life | |||
| Multi-media system | 1.1 unit computer 2.Sound system including 4 units waterproof loudspeaker 1 unit power amplifiers |
||
| Generator Set | 1.OUMA brand, Silent diesel generator 2.220V domestic power supply |
||
| Security system | Overheat protection | ||
| Remarks | 1.Circulating ventilation and cooling systems 2.Aluminum patterned floor 3.Internal and external electrical distribution box |
||
| Optional Items | 1.Mobile stage | ||
| 2.Scrolling light box | |||
The Isuzu LED Display Billboard/Advertising Truck is a specialized mobile advertising platform built on a reliable Isuzu truck chassis.
Isuzu LED display billboard trucks are highly versatile mobile advertising and event platforms. Their key application is in mobile outdoor advertising and dynamic public communication.
Commercial Advertising and Product Launches:
Showcasing new products and services with high-impact, dynamic visuals (video, animation).
Brand promotion and reinforcement in high-traffic urban areas, shopping centers, and marketplaces.
Announcing retail sales, seasonal promotions, and grand openings.
Events and Entertainment:
Live Event Broadcasting: Streaming live video content, close-ups of performers, or replays at concerts, music festivals, and sports events (often using a truck model with an optional hydraulic stage).
Roadshows and Demonstrations: Serving as a center for product demonstrations, community outreach, and interactive shows.
Mobile Cinema: Hosting outdoor movie nights or public viewing events.
Parades and Celebrations: Displaying event highlights or sponsor messages during parades.
Political and Public Awareness Campaigns:
Political Campaigns: Broadcasting candidate messages, speeches, and rally information in various districts.
Public Service Announcements (PSAs): Delivering public health messages, government announcements, and safety warnings (e.g., during disaster response).
Targeted Outreach:
Real Estate: Advertising new listings, open houses, or special offers in target neighborhoods.
Targeted Geographies: Moving the message to specific locations or demographics (e.g., near a competitor's location, a business center, or a trade show).
Chengli Special Automobile Co., Ltd. is a major, government-designated manufacturer of various special-purpose vehicles in China. It is the core enterprise of the CLW Group (Chengli Automobile Group Co., Ltd.).
Established: September 2004.
Location/Headquarters: Suizhou City, Hubei Province, China (known as the "Capital of China's Special Purpose Vehicles").
Scale: It is consistently ranked among the "China Top 500 Private Enterprises" and is one of the largest special vehicle manufacturers in China. The company operates across multiple production bases and employs thousands of staff.
Certifications: Holds numerous certifications including ISO 9001 (Quality), ISO 14001 (Environmental), OHSAS18001/ISO 45001 (Occupational Health and Safety), China Compulsory Certification (3C), and various pressure vessel and military standard certifications (GJB9001B).
Market: Products are sold across China and exported to over 30 countries and regions globally, including South America, the Middle East, Southeast Asia, and Africa.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.
