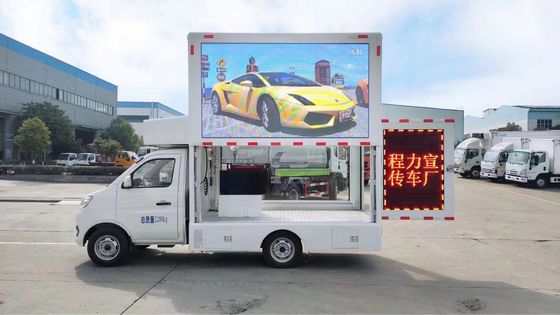

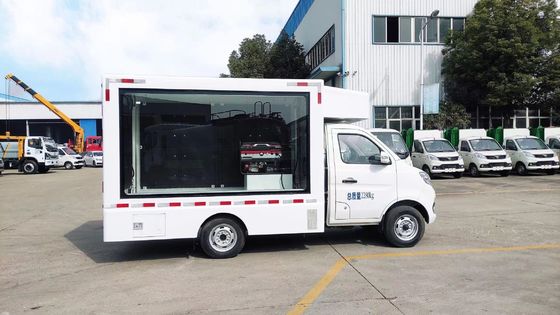

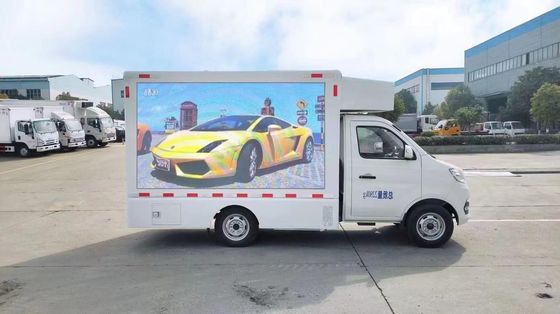

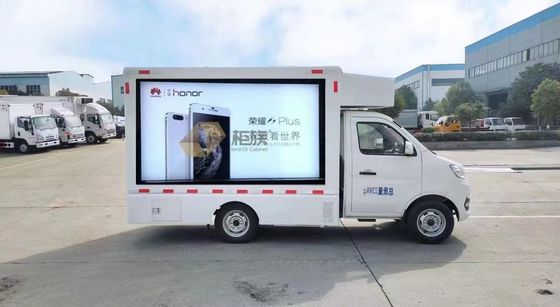

Changan mobile billboard advertising truck display stage truck

Changan, like several other Chinese commercial vehicle manufacturers, produces chassis that are often converted into specialized vehicles such as mobile billboard advertising trucks and display stage trucks.

Here is a general breakdown of what to expect regarding Changan mobile advertising and stage trucks:

These specialized vehicles are typically built by mounting custom equipment onto a Changan light commercial vehicle (LCV) chassis, such as those from the Changan Kaiceng or Changan Star series.

LED Screens: The key feature of mobile billboard trucks is the large, high-definition outdoor LED display. Specifications often include:

• Pixel Pitch (Resolution): Commonly P4, P5, or P6 (with P4 being higher resolution) for good visibility.
• Brightness: High brightness (often ≥6,000 nits) for clear visibility in daylight.
• Weatherproofing: IP65 rating is common for all-weather operation.
• Configuration: Trucks may have LED screens on one, two (sides), or three (sides and rear) surfaces.

Stage Functionality (Stage Trucks):

• Hydraulic Systems: Many models feature hydraulic systems to lift the main LED screen or to open and expand the side of the truck to form a flat, covered stage platform.
• Stage Size: Stage dimensions can vary significantly depending on the Changan chassis model used.

Support Systems:

• Power: An onboard ultra-silent generator is essential to power the LED screens and all multimedia equipment.
• Multimedia: Equipped with an industrial PC, video processor, audio equipment (speakers, amplifier), and control systems for the display.

Changan Star Truck (or similar LCVs): Smaller light-duty commercial vehicles are often used as the base for more compact advertising trucks. They offer good maneuverability for urban advertising.

A typical specification for a Changan-based LED truck might be in the US$9,000 to US$15,000 range, depending heavily on the LED screen quality and size, and the inclusion of stage features.

Purchase Price: The price of a complete Changan-based LED advertising or stage truck generally falls within the lower to mid-range for this type of vehicle. Manufacturers and suppliers in China often list them with starting prices.

Where to Buy: These specialized trucks are typically purchased directly from specialized vehicle manufacturers or vehicle-mounted LED display integrators in China. You can find suppliers on global trade platforms.

To get an accurate quote, you would need to specify the exact features you require, such as:

• Truck Chassis: The specific Changan model (if known).
• LED Screen Size and Resolution (Pixel Pitch): E.g., P4 or P5, and the overall dimensions.
• Functionality: Mobile billboard only, or a stage truck with an expandable platform.
• Destination and Shipping: The final price will include shipping costs and any local import duties.

1. Our LED display vehicles can be customizable. We provide LED display trucks, LED display trailer, LED display semi-trailer, etc.

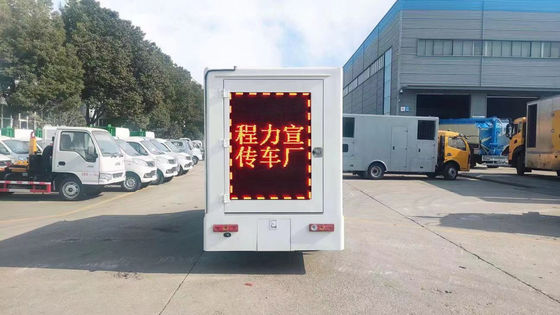

2. One side waterproof P4/P5/P6/P8 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.
3. Optional1-side, 2-sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surroundings.
4. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
5. The pixel's pitch for the LED screen could be P6, P5, P4, P3, etc.
6. The area of the left or right screen mainly ranges from 3.22 m3 to 12.2 m3.

The basic equipment includes silent generator, aluminum checkered plate wall, waterproof leather or wooden floors, safe and intelligent switch power distribution system, integrated computer control, lighting, circulating ventilation fans, shockproof computers, and gigabit media control system, stereos, one amplifier, 4 waterproof column loud speakers, and other tiny accessory facilities within the body.

1. LED Screen: It uses imported EPISTAR chips, high level of illumination, long life-span, and high refresh frequency and easy to maintain.
2. Generator set: It is specialized designed for this style. Lower noise and stable.
3. Lifting system of LED screen: We use the electric puts as the lifting system, since the synchronization error of two Electric puts is only 1mm.
4. Vehicle air-conditioner: Its most important function is cooling the LED screen and the generator, also it could well cool the carriage, and provide a very comfortable environment for the staffs. The vehicle air- conditioner also has excellent quake-proof index and waterproof index.
5. Multi-media Control System: Integrated control cabinet with industrial computer, amplifier, and operation buttons together. The speakers are equipped in the frame of carriage. With it, you could do on-site live recording and broadcasting, television program broadcasting, live karaoke and so on.

The Changan mobile billboard advertising truck and display stage truck is a customizable, multi-functional vehicle designed for dynamic outdoor advertising, roadshows, and live performances.

Here are the key details and features based on common configurations:

Screen Configuration: Typically features one, two, or three sides of full-color LED screens.

One common setup includes one large, waterproof full-color LED screen (often on the left side), an advertising lightbox with a subtitle screen on the other side, and a smaller monochrome screen on the rear for text-only messages.

Screen Technology: Utilizes high-quality LED chips (e.g., EPISTAR) for high illumination, long life, and high refresh rates to prevent flicker.

Pixel Pitch: Options are customizable, frequently including P6, P5, P4, P3, etc. (smaller number means clearer image).

Screen Size/Area: The size is customizable, with main side screens often ranging from 3.22m 2 to over 12m 2 in area. A common size might be around 3840mm x 1760mm (6.8 m 2 ).

Lifting System: The main LED screen often uses an electric putter lifting system or a hydraulic lifting system.

Electric systems offer high synchronization accuracy (e.g., 1mm error).

Hydraulic systems may offer greater lifting height and stability.

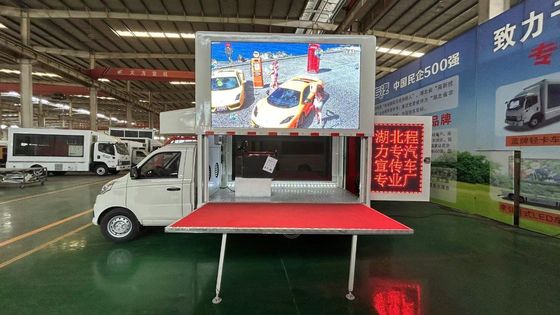

Stage Extension: Some models are configured as stage trucks with a folding or retractable stage component.

Stage Features: For dedicated stage trucks, the roof may be raised to create stage cover, and a foldable stage floor is deployed. Advanced models can include:

• Screen Rotation: Features like 360-degree screen rotation are available on some models for maximum viewing angle.
• Stage Capacity: The extended stage can be equipped with lighting, sound equipment, and has a strong carrying capacity.

Generator: Equipped with a specialized, lower-noise, and stable silent diesel generator set (e.g., 15KW or 24KW models) to provide continuous power for the screens and equipment.

Power Distribution: Includes a safe and intelligent switch power distribution system.

Air Conditioning: Features a vehicle air conditioner crucial for cooling the high-powered LED screen and the generator, as well as providing a comfortable working environment for staff inside the carriage.

Control Center: An integrated control cabinet houses an industrial computer, an amplifier, and operation buttons.

Playback: Supports multi-media playback, including:

• Connecting to an external computer/PC.
• On-site live recording and broadcasting.
• Television program broadcasting.
• Live karaoke.

Audio: Equipped with stereos and speakers integrated into the carriage frame, along with an amplifier.

Connectivity: Supports various video sources for fluent switching.

Chassis: The trucks are built on Changan light-duty truck chassis. The specific Changan chassis model (e.g., a variant of their light commercial vehicles) can vary depending on the required size and payload.

Structure: The carriage is typically constructed with:

• A robust composite steel box.
• Aluminum checkered plate or waterproof leather/wooden floors.
• A loop ventilation cooling system with multiple fans to manage heat.

The Changan mobile billboard advertising truck and display stage truck is a highly versatile tool, primarily used for out-of-home (OOH) advertising, dynamic marketing, and mobile event hosting.

Its applications are broad, leveraging its mobility and large, high-resolution LED screens.

Mobile Billboard Advertising: The most common use. The truck drives through high-traffic areas, city centers, busy communities, and commercial districts, displaying high-impact video and graphic ads that capture attention more effectively than static billboards.

Product Launches and Brand Activation: Companies use the trucks as a centerpiece for roadshows and promotional tours. The screens display product videos and information, while the integrated stage can host live demonstrations or experiential marketing activities.

Targeted Advertising: The vehicle's mobility allows advertisers to target specific demographics by parking or driving near relevant locations (e.g., near universities for student-focused products, or near a sports stadium before an event).

Real-Time Campaigns: The media system allows for real-time updates, such as countdowns to a launch, live social media feeds, or instant changes to promotional offers.

Roadshows and Tours: Rapidly deploying a professional stage for multi-city promotional tours, requiring minimal setup and teardown time.

Concerts and Live Performances: Serving as a ready-to-use platform for small to medium-sized outdoor concerts, musical events, or entertainment shows in parks, parking lots, or temporary venues.

Festivals and Community Events: Providing a central stage and display screen for local fairs, cultural festivals, holiday celebrations, and community gatherings.

Live Broadcasts: The high-definition LED screen and multimedia control system make it suitable for displaying live video feeds, such as broadcasting sports matches, public announcements, or on-site coverage.

Political Campaigns: Used as a flexible mobile platform for political rallies, candidate speeches, and displaying campaign messages in various neighborhoods.

Public Announcements: Displaying public service announcements, emergency information, or traffic updates in a highly visible manner.

Real Estate: Advertising open houses, new property listings, or promotional offers directly within or near target neighborhoods.

Non-Profit Campaigns: A cost-effective way for non-profit organizations and charities to spread awareness about their cause, encourage donations, or advertise upcoming events.

LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.Led display screen now are widely applied in media advertising, transportation, Security,Real estate and Stage show background.
