| Brand Name: | Foton |
| Model Number: | Foton |
| MOQ: | 1 unit |
| Price: | 15000-35000 per unit |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 10unit per month |

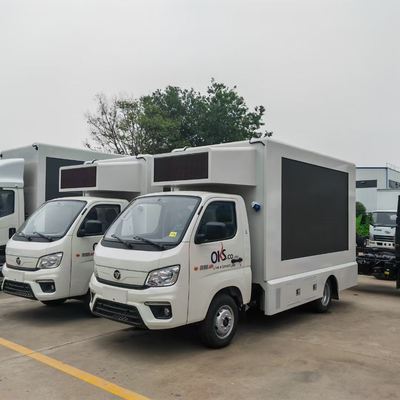

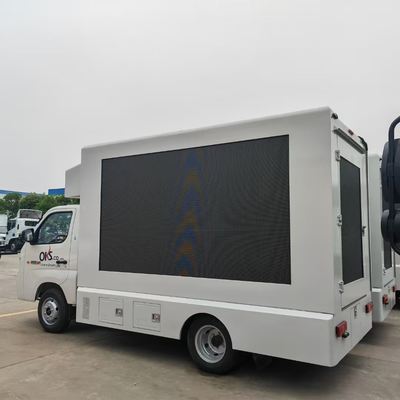

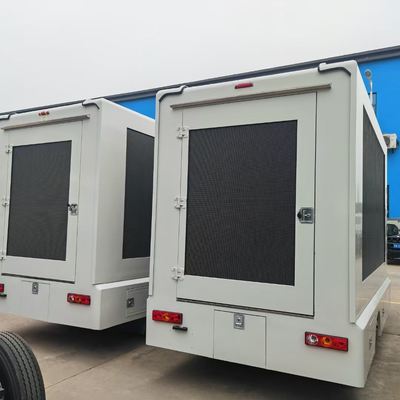

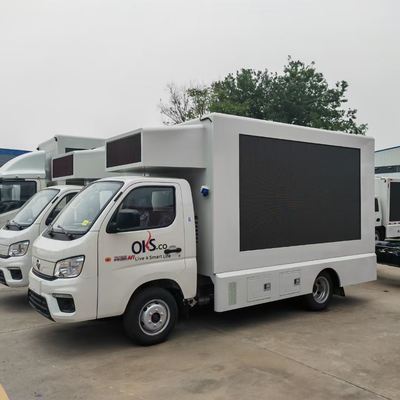

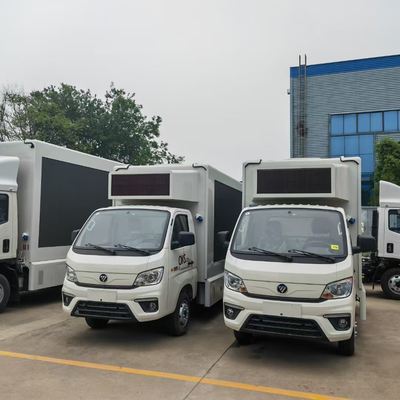

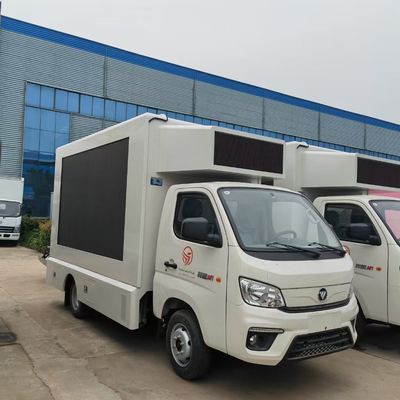

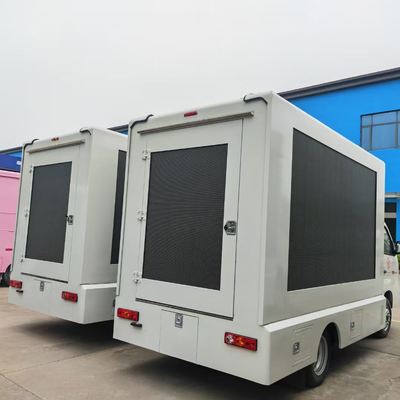

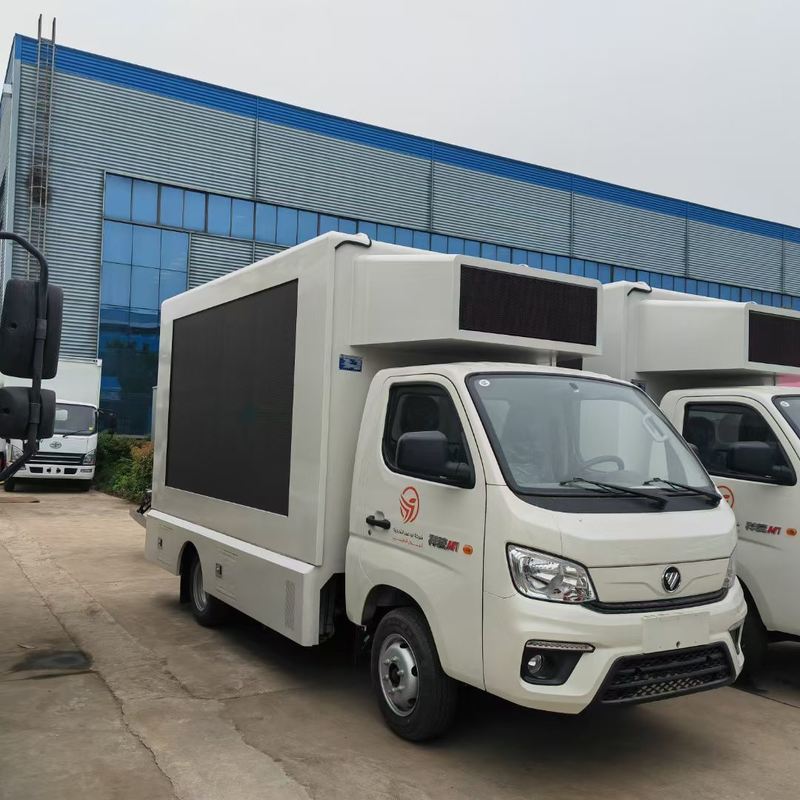

The Foton LED Digital Mobile Advertising Billboard Truck is a popular type of specialized vehicle used for mobile out-of-home (OOH) advertising, events, and roadshows.
Manufacturers like Chengli Special Automobile Co., Ltd. (and others) commonly use the Foton chassis (such as the Foton Aumark, Ollin, or M1 series) as the base for constructing these mobile digital billboards.
Foton LED Digital Mobile Advertising Billboard Truck is a specialized vehicle equipped with a large, high-resolution LED screen that displays digital advertisements while driving or when parked in strategic locations. These trucks are increasingly popular for outdoor mobile advertising due to their flexibility, visibility, and ability to reach wide audiences in urban and event-heavy environments.
| Key Features and Components | |
| Component | Description |
| Chassis | Foton (Aumark, Ollin, M1, etc.). These trucks are typically light- or medium-duty commercial vehicles. |
| LED Screen | Full-Color, Outdoor-Grade Display (often P4, P5, P6, or P8 pixel pitch), which is waterproof (IP65-rated) and high-brightness for clear daylight visibility. |
| Screen Configuration | Varies by model: One side (with lifting function), Two sides, or Three sides (one large side screen, one smaller side screen with a light box/scrolling poster, and a rear subtitle screen). |
| Lifting System | Hydraulic lifting system for the main LED screen, allowing it to be raised up to 1.5m - 2m for better visibility over crowds or parked vehicles. |
| Power Supply | Ultra-Silent Diesel or Gasoline Generator (e.g., 8KW, 12KW, or 15KW) is onboard to power the screen and equipment independently. An external power input interface is also standard. |
| Control System | An Industrial Control Computer with a video processor to manage content, multiple signal inputs (HDMI, SDI), and sound mixing. |
| Audio System | Waterproof speakers (often column speakers) and a high-power amplifier to broadcast audio with the video content. |
| Optional Stage | Some models are equipped with an expandable or fold-out hydraulic stage for live performances, product launches, or event use. |
| Specifications (Based on a Common Foton Model) | |
| Specification | Typical Range |
| Overall Dimensions | 5,100×1,700×2,640 mm (Mini/Compact) up to 7,300×2,300×3,400 mm (Larger models) |
| Main Screen Size | Mini: 2.3×1.5 m (approx. 3.5 sqm) to Large: 5.3×2.4 m (approx. 12.7 sqm) |
| Pixel Pitch | P4, P5, or P6 (Lower number = higher resolution/better image quality at a closer viewing distance) |
| Engine & Emission | Diesel or Gasoline (e.g., YZ4105ZLQ or DAM15KR), typically meeting local emission standards (e.g., Euro IV, V, or VI). |
| Max Speed | Around 90 to 110 km/h |
| Operation | The control cabin usually features an integrated console for managing the entire mobile advertising unit. |
| FOTON LED TRUCK Technical date | |||||||
| General | Descriptions | Specifications and types | |||||
| Production Year | 2025 | ||||||
| Truck Brand | CLW BRAND | ||||||
| Color | White | ||||||
| AC | With | ||||||
| Chassis Brand | Foton | ||||||
| Approx. Dimension | 4550*1660* 2675 mm | ||||||
| GVW./Curb Wt. | 2710/ 2580kg | ||||||
| Seat | 2 | ||||||
| Cab | Cab Capacity | 2 persons' seat | |||||
| Chassis | Drive Type | 4X2,Left Hand Drive | |||||
| Fuel Type | Gasoline | ||||||
| Engine Brand | Dongan | ||||||
| Power | 110hp | ||||||
| Emission Standard | EURO 5 | ||||||
| Wheelbase/No.of axle | 2400 mm / 2 | ||||||
| Tyre Specfication | 175R14 | ||||||
| Tyre Number | 4 tyres and 1 spare tyre | ||||||
| Max Speed | 90 km/h | ||||||
| Paint | Automative metallic paint | ||||||
| Truck Body Technical date | |||||||
| Frame | Color | White | |||||
| GENERATOR GROUP | Power | 8KW | |||||
| Fuel Type | Diesel Quite | ||||||
| Both side screen | Size | 2560*1440mm | |||||
| Color type | Full Color | ||||||
| Screen type | P5 | ||||||
| Rear Side Screen | Size | 960*1280mm | |||||
| Color type | Red Color | ||||||
| Screen type | P10 | ||||||
| Others Equipment | Loudspeaker , Amplifier , Control Panel , Computre , Top window , Ventilation system , | ||||||
Cab: Usually a single-row cab, often equipped with A/C.
Screen Configuration: Highly customizable, most common options are:
Single-Sided Color Screen: One large main screen.
Double-Sided Color Screen: A screen on both the driver's and passenger's sides.
Three-Sided Screen: Main side screen(s) plus a smaller rear screen, often a single-color or full-color strip.
Pixel Pitch (Resolution): Determines the clarity and viewing distance. Common outdoor options include:
P3, P4, P5: Higher resolution, ideal for close-range viewing in urban areas.
P6, P8, P10: Good standard resolution, suitable for general mobile advertising.
Screen Size (Varies): Sizes can range from around 6.5 m
2 to over 12 m 2 for the main display(s).
Example P6 screen size on a smaller truck: 3,840×1,728 mm (approx. 6.65 m 2 ).
Example larger screen: 5,376×2,496 mm (over 13 m 2 ).
Visibility: High brightness (e.g., ≥6,000 to 7,500 cd/m
2 ) for excellent daylight visibility.
Durability: Waterproof and shockproof design, typically with an IP65 rating for all-weather reliability.
Power Source:
Built-in Generator: Essential for mobile operation. Common sizes are 8 kW, 12 kW, or 15 kW ultra-silent diesel generators (e.g., Ouma brand).
Mains Power: An external power interface (often 220 V or 380 V) for use when parked.
Power Consumption: Average power consumption is often cited around 0.3 kW/m
2 /h to 0.5 kW/m 2 h.
Control System:
Industrial PC: Used for content management and playback.
Video Processor: Supports multiple signal inputs (e.g., SDI, HDMI) for live broadcast capabilities.
Features: Multimedia playback, U disk support, intelligent timing power on/off for the LED screen.
Lifting System: Many models include a hydraulic lifting system for the main LED screen, allowing it to be raised by up to 1.5 m to 2 m for better visibility above crowds.
Mobile Stage: A popular option is a side panel that folds down to become a hydraulic stage (e.g., 4 to 10 m
2 ) for events.
Scrolling Light Box: Some configurations feature a scrolling light box on the opposite side of the main LED screen for static poster advertisements.
Audio System: Includes broadcast-grade amplifiers and waterproof column speakers for sound output.
Ventilation: Circulating ventilation and cooling systems are integrated to manage the temperature of the equipment inside the truck body.
Body Construction: Typically uses a 5 cm composite steel frame box with interior features like an aluminum patterned anti-slide floor.
Chengli Special Automobile Co., Ltd. (part of the CLW Group) is a major Chinese manufacturer specializing in the production of a wide range of special-purpose vehicles and trucks.
Here is a summary of key information:
Location: The company is headquartered in Suizhou City, Hubei Province, China, which is known as the "Capital of China's Special Purpose Vehicles."
Establishment: It was established in 2004.
Scale: Chengli is often cited as the largest special automobile manufacturer in central China and is a core member of the CLW Group, which is designated by the Chinese government as a large-scale manufacturer of special vehicles. The group is often ranked among the Top 500 Private Enterprises in China.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Chengli Special Automobile Co., Ltd. (CLW Group) is a significant player in the international market for special-purpose vehicles, exporting its products to numerous countries across several major regions.
The company's trucks and special vehicles have been sold to more than 80 overseas countries and regions globally.
Here are the primary overseas market regions for Chengli Special Automobile Co., Ltd.:
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.
