Chengli 16FT 18F 3 Sided LED Screen Advertising Van Customized Mobile LED Display Box

The "Chengli 16FT 18F 3 Sided LED Screen Advertising Van Customized Mobile LED Display Box" refers to a specialized mobile advertising truck manufactured by Chengli Special Automobile Co., Ltd. (or related companies like CLW Group), known for producing a variety of special-purpose vehicles.

While the exact "16FT 18F" designation might be a specific model or customization detail, here is a summary of the typical key features and specifications for a Chengli 3-sided mobile LED advertising van:

• Type: Mobile LED Advertising Truck/Van.
• Application: Outdoor commercial advertising, product promotion, brand promotion, stage rental, road shows, live event broadcasting, public service announcements, etc.
• Display: Typically features three full-color, outdoor-rated LED screens (one on each side and one on the rear).
• Customization: These vehicles are highly customizable in terms of chassis brand, screen size, pixel pitch, and additional features.

Our led box is very easy to install on your chassis, and we will send you the complete install manual and video.

1. Our LED display vehicles can be customizable. We provide LED display trucks, LED display trailer, LED display semi-trailer, etc.
2. One side waterproof P4/P5/P6/P8 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.
3. Optional 1-side, 2-sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surroundings.
4. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
5. The pixel's pitch for the LED screen could be P6, P5, P4, P3, etc.
6. The area of the left or right screen mainly ranges from 3.22 m3 to 12.2 m3.

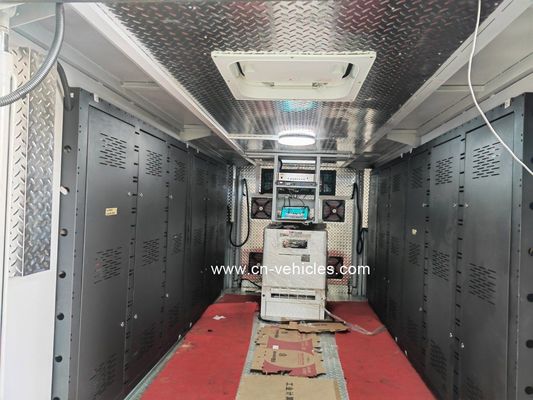

The basic equipment includes silent generator, aluminum checkered plate wall, waterproof leather or wooden floors, safe and intelligent switch power distribution system, integrated computer control, lighting, circulating ventilation fans, shockproof computers, and gigabit media control system, stereos, one amplifier, 4 waterproof column loud speakers, and other tiny accessory facilities within the body.

1. LED Screen: It uses imported EPISTAR chips, high level of illumination, long life-span, and high refresh frequency and easy to maintain.
2. Generator set: It is specialized designed for this style. Lower noise and stable.
3. Lifting system of LED screen: We use the electric puts as the lifting system, since the synchronization error of two Electric puts is only 1mm.
4. Vehicle air-conditioner: Its most important function is cooling the LED screen and the generator, also it could well cool the carriage, and provide a very comfortable environment for the staffs. The vehicle air- conditioner also has excellent quake-proof index and waterproof index.
5. Multi-media Control System: Integrated control cabinet with industrial computer, amplifier, and operation buttons together. The speakers are equipped in the frame of carriage. With it, you could do on-site live recording and broadcasting, television program broadcasting, live karaoke and so on.

The "Chengli 16ft 18f High Quality 3-Sided Vehicle Advertising Vans Mobile Led Display Large Screen Box" is a type of specialized vehicle designed for mobile advertising, concerts, product promotion, and live broadcasting.

While specific models and exact dimensions can vary, based on typical configurations for this type of vehicle from the manufacturer (Chengli Special Automobile Co., Ltd.), here are the general details and key features:

• Vehicle Type: Mobile LED Advertising Truck/Van.
• LED Screen Sides: 3-Sided (Typically two large side screens and one rear screen).
• Box Size/Vehicle Size: Often refers to a truck size in the range of 16 to 18 feet (or around 5 to 6 meters in overall length, like the 5990mm dimension often seen).
• Chassis: Can be mounted on various light-duty truck chassis brands (e.g., DF Auto, Foton, Isuzu, JAC, etc.) depending on the specific model and market requirements.
• Application: Outdoor commercial advertising, brand promotion, stage rental, roadshows, ceremonies, live broadcasting, and public service.

1. LED Screens:
   • Screen Configuration: Typically three screens:
     • Two Large Side Screens: Often P4, P5, or P6 full-color LED screens. Some designs feature a lifting system on one side for better visibility, and sometimes the screens can fold and seamlessly splice to create one super-large screen (e.g., up to about 9.6 meters×1.9 meters).
     • One Rear Screen: Usually a smaller full-color or monochrome (text-only) screen.
   • Pixel Pitch: Commonly P4, P5, or P6 (P-value indicates the distance in millimeters between pixels, with smaller values offering higher resolution).
   • Brightness: High brightness (e.g., ≥5500 cd/m
     2
     ) for clear visibility even in direct sunlight.
   • Waterproof Rating: Typically IP65 for reliable outdoor use in various weather conditions.
2. Power System:
   • Primary Power: Equipped with a silent diesel or petrol generator set (e.g., 9KW or 15KW) to power the screens and equipment independently.
   • Alternative Power: Can often connect to an external 220V/380V city electricity supply when stationary.
3. Operating and Control System:
   • Multi-media Control System: Includes an integrated control cabinet with an industrial computer, professional amplifier, and control buttons.
   • Audio System: Equipped with waterproof speakers and a power amplifier for sound output.
   • Operation: Often features a one-button remote control for simplified operation, including deploying and retracting the screens and stabilizing the support legs (hydraulic or electric lifting systems are common).
4. Vehicle Body and Accessories:
   • Construction: The box body is typically made of durable materials like composite steel or aluminum.
   • Cooling System: An internal circulating ventilation/cooling system (including fans and vehicle air-conditioner) is essential for cooling the LED screens and the generator, ensuring stable operation.
   • Interior: May include features like anti-shock computer mounts, internal lighting, and specialized flooring.
   • Lifting System: The main side screen often has a hydraulic or electric lifting system to raise the display for maximum impact.

The Chengli 16ft 18ft High Quality 3-Sided Vehicle Advertising Van is a highly versatile mobile media platform. Its applications span across various industries and events due to its high visibility, mobility, and capacity for dynamic content.

Here are the primary applications for this type of mobile LED display truck:

1. Commercial and Targeted Advertising (Mobile Billboard)
   • General Advertising: Driving through high-traffic commercial areas, city centers, and along major roads to promote products, services, and brand campaigns.
   • Targeted Marketing: The mobility allows advertisers to target specific demographics by moving the vehicle to:
     • Affluent neighborhoods for luxury goods.
     • Near competitor stores or grand openings.
     • University campuses, schools, or parks.
     • During rush hour on commuter routes.
   • Real-Time Promotions: Displaying hyper-localized or time-sensitive advertisements, such as flash sales, current stock levels, or weather-triggered ads (e.g., umbrella ads on a rainy day).
2. Events, Roadshows, and Exhibitions
   • Product Launches: Serving as a dynamic backdrop and display unit to introduce new products with high-impact video and audio.
   • Roadshows and Promotions: Providing a complete mobile stage and media solution for promotional tours, where the vehicle can stop, deploy a screen (and sometimes a stage), and run an on-site show or interactive event.
   • Trade Shows and Fairs: Attracting foot traffic to a booth or stand, and acting as a central hub for event information and brand presence.
   • Concerts and Festivals: Broadcasting live performances, displaying crowd footage, schedules, and sponsor messages.
3. Corporate and Public Service
   • Ceremonies: Providing dynamic displays for opening ceremonies, ribbon-cutting events, anniversary celebrations, and press conferences.
   • Political Campaigns: Broadcasting rally speeches, live debates, and targeted campaign messages to specific voter districts.
   • Live Broadcasts: Receiving live video signals from TV or other sources for on-the-spot broadcasting of major events, sports games, or news coverage.
   • Public Service/Crisis Communication: Rapidly deploying in affected areas to disseminate critical public announcements, emergency alerts, evacuation routes, and safety information.
4. Entertainment and Sports
   • Sporting Events: Displaying live scores, player stats, instant replays, and sponsor advertisements at marathons, golf tournaments, and local sporting events.
   • Movie Premieres/Entertainment: Generating buzz by driving high-resolution movie trailers and promotional content through key markets.

• Mobility: It is not restricted to a fixed location, allowing for maximum audience reach and flexibility in campaign execution.
• High Impact: The large, high-resolution screens and integrated sound system create a strong visual and audio impact that is difficult for pedestrians and drivers to ignore.
• Dynamic Content: It can display full-motion video, animations, and real-time social media feeds, which are far more engaging than static billboards.
• Versatility: The three-sided display maximizes exposure, ensuring the message is visible from multiple angles whether the truck is moving or stationary.

LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.Led display screen now are widely applied in media advertising, transportation, Security,Real estate and Stage show background.

Chengli Special Automobile Co., Ltd. is a major Chinese manufacturer that specializes in a vast array of custom-built and special-purpose vehicles. It is a core enterprise of the larger CLW Group.

• Designation: It is a government-designated, large-scale manufacturer of special vehicles in China.
• Location: Headquartered in Suizhou City, Hubei Province, which is known as the "Capital of China's Special Purpose Vehicles."
• Scale: The company is known for its massive scale, occupying a large industrial park, employing thousands of staff, and having a high annual production capacity for specialized trucks.
• Certifications: Chengli holds numerous quality and safety certifications, including ISO 9001, ISO 14001, OHSAS18001, and China Compulsory Certification (3C).
• Reputation: The company and its "CHENGLIWEI (CLW)" brand are widely recognized in China, with its products consistently ranking high in sales for certain categories of special trucks.

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Chengli Special Automobile Co., Ltd. has a significant and expanding presence in the international market, exporting its wide range of specialized vehicles to numerous countries across the globe.

Their export strategy focuses on developing and emerging economies that have high demand for municipal, construction, and logistics vehicles.

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.
