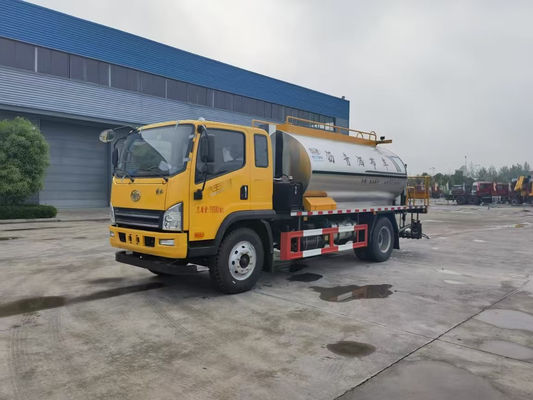

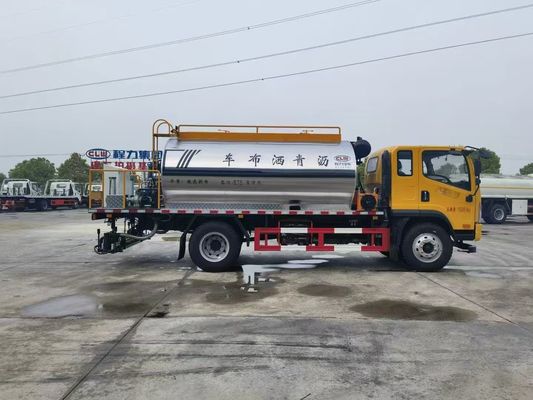

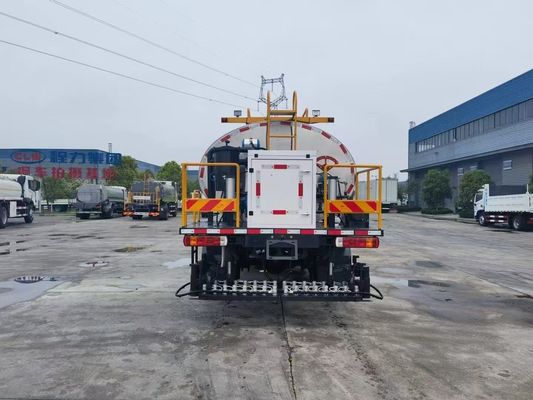

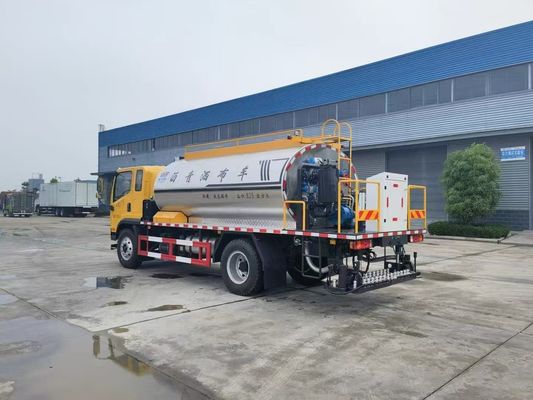

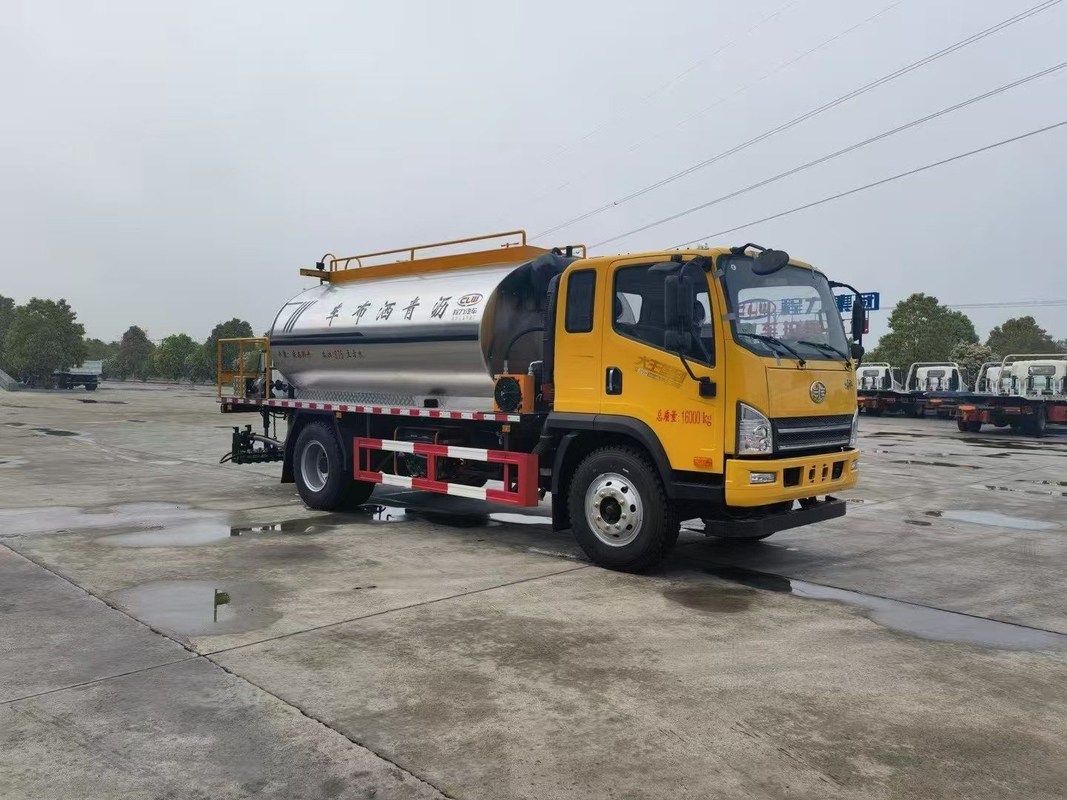

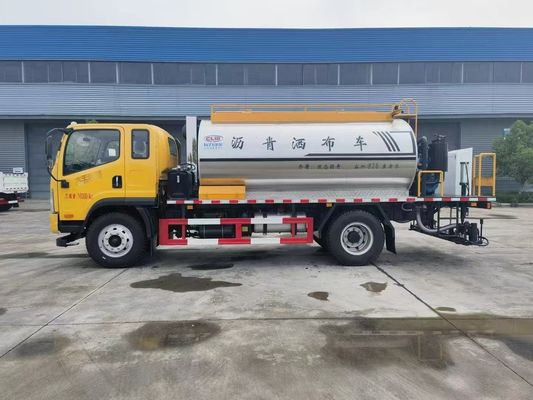

FAW 9CBM Road Construction Gravel Sealing Truck Asphalt Distributor Truck

FAW 9CBM Road Construction Gravel Sealing Truck Asphalt Distributor Truck

FAW 9CBM Road Construction Gravel Sealing Truck Asphalt Distributor Truck, is a specialized road maintenance vehicle designed for chip sealing and bitumen (asphalt) spraying operations.

Vehicle Type: Synchronous Chip Sealer (or Chip Spreader) and Intelligent Asphalt Distributor Truck combined.
Purpose: It is designed for road surface maintenance and construction, specifically for chip sealing (or gravel sealing) and bitumen/asphalt spraying.

Asphalt Distributor: Sprays a precise, heated layer of bitumen, modified asphalt, or emulsified asphalt onto the road surface.

Gravel Sealing/Chip Sealing: Immediately spreads a layer of aggregate (gravel/chips) on top of the newly sprayed asphalt binder. This two-in-one process is essential for creating a durable sealed road surface.

Intelligent Asphalt Distributor Truck is a machine specially designed for construction and curing of asphalt road surfaces, which is widely applied in operation, such as transport and distribution of high-temperature liquid asphalt, emulsified asphalt and modified asphalt.

The operation of the asphalt pump is controlled by hydraulic system and the transmission is stable, enabling safe and reliable operation. Asphalt can be sprayed evenly via the rear spray bar or the handheld spray bar according to the actual construction. Spraying via the rear spray bar is automatically controlled by the computer. The spray rate is under computerized control and is accurate. The asphalt pump and piping use heat transfer oil for heating and thermal insulation. The pipes and nozzles are flushed by compressed air, in order to avoid being clogged. The maximum spray width is up to 6m, and the spraying operation is high-efficiency and easy, with safe and reliable service behavior.

1. Siemens control sysem inported typical of control prcision(error≤1%)
2. High intelligentized of control system,imported burner form Italy
3. Imported truck element for speed measurement and imported 7" full-color resistacecontrolling panel.
4. Front and rear controlling platforms,for alternative use to ensure work.
5. High-end design and fabrication for rust prevention and corrosion prevention

FAW 9CBM Road Construction Gravel Sealing Truck Asphalt Distributor Truck Technical sheet :

FAW 9CBM Bitumen Spreader Sprayer Transport Vehicle Asphalt Distributor Truck for Road Construction Application:

• Prime Coat: Applying a low-viscosity asphalt material (often emulsified or cutback asphalt) to a non-bituminous base layer (like a stabilized aggregate base) before the first asphalt layer is laid. This seals the base, prevents water intrusion, and ensures strong adhesion between the base and the asphalt pavement above it.
• Tack Coat (Bonding Layer): Applying a very thin layer of emulsified asphalt between two layers of hot-mix asphalt (HMA) or between the existing pavement and a new overlay. This is critical for bonding the layers together so they act as a single unit, which is essential for the pavement's strength and resistance to traffic.
• Permeable Layer / Waterproof Layer: Applying specialized asphalt or modified bitumen for waterproofing the road structure, particularly on high-grade highways or bridge decks, to prevent water from reaching and damaging the foundation.

Asphalt distribution truck is widely used in highway construction and highway maintenance engineering. It can be used for the different pavements of upper and lower sealing layer, prime coat, waterproof layer, adhesive layer, asphalt surface treatment, bituminous penetration pavement, and fog sealing layer and other construction. It also can be used for transportation of liquid asphalt or other heavy oils.

FAW 9CBM Bitumen Spreader Sprayer Transport Vehicle Asphalt Distributor Truck for Road Construction Details :
