| Brand Name: | Dongfeng KL |
| Model Number: | Dongfeng KL |
| MOQ: | 1 unit |
| Price: | 27000USD |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 15 unit per week |

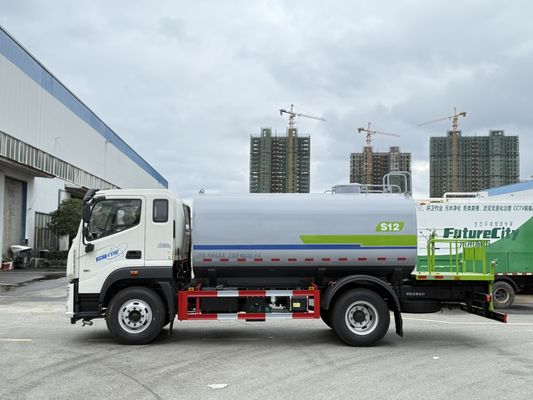

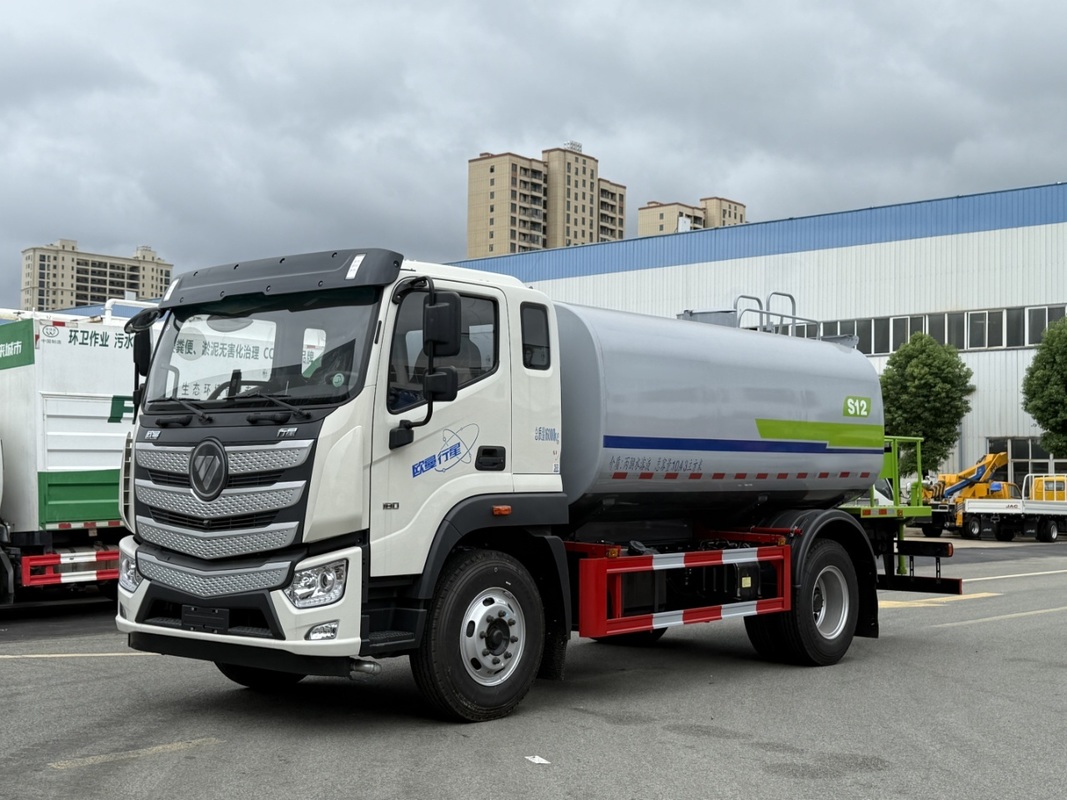

Foton Auman Water Tanker Truck, also commonly referred to as a Water Sprinkler Truck or Water Transport Bowser, is a versatile heavy-duty vehicle designed for municipal, construction, environmental, and emergency applications

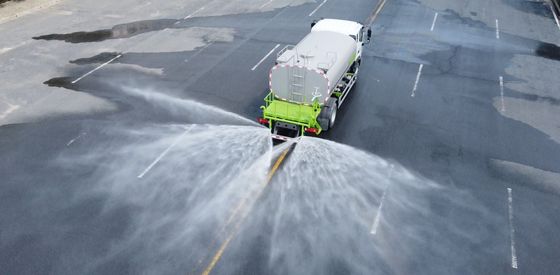

Water Sprinkling/Cleaning: Equipped with front flushing, side spraying, and rear sprinkling nozzles for road cleaning, dust suppression, and sanitation.
Watering/Virescence: Features a rear working platform with a powerful water cannon that can rotate 360 degrees and adjust the water stream (straight, heavy rain, mist, etc.) for watering plants, trees, and high areas.
Water Transport/Delivery: Serves as a water bowser to transport large volumes of water for various purposes, including construction sites, agricultural irrigation, or providing potable water (with optional stainless steel or special interior treatment).
Emergency Fire Fighting: Often equipped with a fire joint (fire hydrant interface) and high-range water cannon for use in initial or auxiliary fire response.

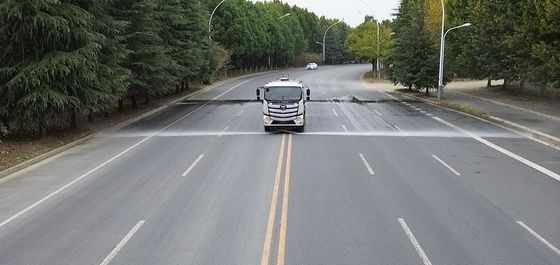

Multi-Directional Spraying: Includes front spray nozzles (for road flushing), side sprays, and rear fan-shaped sprinklers for dust reduction.

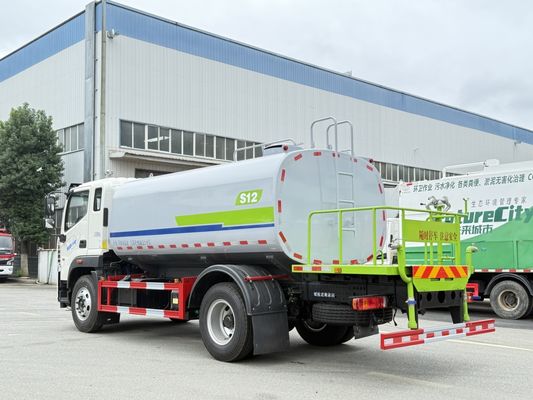

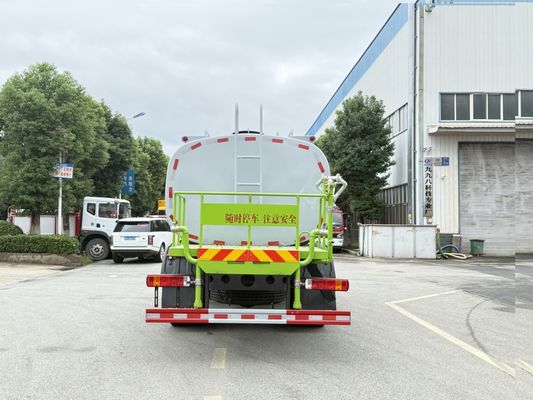

Rear Working Platform: Provides a safe area for the operator to control the water cannon.
Self-Priming Capability: The pump allows the truck to draw water from an external source (like a pond or river) in addition to filling via a fire hydrant.
Anti-Corrosion Treatment: Tanks are often treated internally with anti-corrosion paint or made of stainless steel for long service life.
| Parameter | Typical Specification | Notes |
| Chassis Brand | FOTON Auman (ETX/EST Series) | Heavy-duty commercial chassis. |
| Drive Type | 6x4 | Common for 15,000L to 25,000L capacity. |
| Overall Dimensions | 9900*2500*3400 mm | Length * Width * Height. Varies by capacity. |
| Gross Vehicle Weight (GVW) | 25,000 kg | Maximum allowable total weight. |
| Curb Weight | 10,600 kg - 10,800 kg | Weight of empty vehicle. |
| Wheel Base | 4600 + 1350 mm | Distance between axles. |
| Max. Speed | 90 - 95 km/h | Governed maximum speed. |
| Tire Specification | 12.00R20 or 11.00R20 | 10 tires + 1 spare tire. |
| Brake System | Dual circuit Pneumatic (Air) Brake | Often includes ABS. |
| Parameter | Typical Specification | Notes |
| Engine Brand | Foton Cummins or Weichai | Popular engine choices. |
| Engine Power | 270 HP to 460 HP | Varies based on capacity and specific model. |
| Emission Standard | Euro 3, Euro 4, Euro 5, or Euro 6 | Dependent on the destination market's regulations. |
| Fuel Type | Diesel | Standard fuel type. |
| Transmission/Gearbox | Manual (8 or 9 Forward, 1 Reverse) | FAST brand gearbox is common. |
| Cab | Row and a half, with A/C | Typically accommodates 2 to 3 persons. |
| Parameter | Typical Specification | Notes |
| Engine Brand | Foton Cummins or Weichai | Popular engine choices. |
| Engine Power | 270 HP to 460 HP | Varies based on capacity and specific model. |
| Emission Standard | Euro 3, Euro 4, Euro 5, or Euro 6 | Dependent on the destination market's regulations. |
| Fuel Type | Diesel | Standard fuel type. |
| Transmission/Gearbox | Manual (8 or 9 Forward, 1 Reverse) | E.g., FAST brand gearbox is common. |
| Cab | Row and a half, with A/C | Typically accommodates 2 to 3 persons. |
| Parameter | Typical Specification | Notes |
| Tank Volume | 20,000 Liters / 20 m^3 | This capacity is very common for 6x4 models. |
| Tank Material | 5 mm thick Q235B Carbon Steel | Stainless Steel (e.g., SS304) or anti-corrosion lining is optional for potable/drinking water. |
| Water Pump Type | Special high-power self-priming sprinkler pump | Driven by the truck's engine PTO (Power Take-Off). |
| Suction Height | 7 meters | Maximum vertical suction range. |
| Full Tank Suction Time | < 15 minutes | Efficiency rating for self-loading. |
| Sprinkling Width | 14 meters | Achieved via front/rear/side sprinklers/nozzles. |
| Water Cannon Range | 35 meters | High-pressure cannon mounted on the rear working platform. |
| Cannon Rotation | 360 degree Rotatable | Water stream is adjustable (straight, heavy rain, light rain, mist). |
| Functions | Front flush, rear sprinkle, side spray, high-pressure water cannon, self-suction/discharge, fire joint. | Multifunctional use for watering, cleaning, dust suppression, and emergency fire-fighting. |
| Parameter | Typical Specification | Notes |
| Chassis Brand | FOTON Auman (ETX/EST Series) | Heavy-duty commercial chassis. |
| Drive Type | 6x4 | Common for 15,000L to 25,000L capacity. |
| Overall Dimensions | 9900*2500*3400 mm | Length * Width * Height. Varies by capacity. |
| Gross Vehicle Weight (GVW) | 25,000 kg | Maximum allowable total weight. |
| Curb Weight | 10,600 kg - 10,800 kg | Weight of empty vehicle. |
| Wheel Base | 4600 + 1350 mm | Distance between axles. |
| Max. Speed | 90 - 95 km/h | Governed maximum speed. |
| Tire Specification | 12.00R20 or 11.00R20 | 10 tires + 1 spare tire. |
| Brake System | Dual circuit Pneumatic (Air) Brake | Often includes ABS. |
Tank Material: Typically Food-grade Stainless Steel, such as 304-2B, ensuring the water remains safe and non-contaminated for drinking.
Tank Thickness: The inner tank body is often around 4mm thick.
Insulation: Models designed specifically for drinking water or milk transport often include an insulation layer (e.g., polyurethane foam, 80mm-120mm thick) to maintain a stable temperature.
Hygiene Features: May include a CIP (Cleaning-In-Place) system for thorough internal cleaning and a reliable mechanical safety breathing valve.
Discharge valves and fire hydrant joint/couplings.
About Chengli Special Automobile Co., Ltd
Chengli is a comprehensive manufacturer and developer of a wide array of special-purpose vehicles, often building on chassis from major brands like Dongfeng, Sinotruk, FAW, Isuzu, and Foton.
Their leading product lines include:
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Chengli Special Automobile Co., Ltd Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
