| Brand Name: | Foton Auman R |
| Model Number: | CLW5185GPSBBS |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

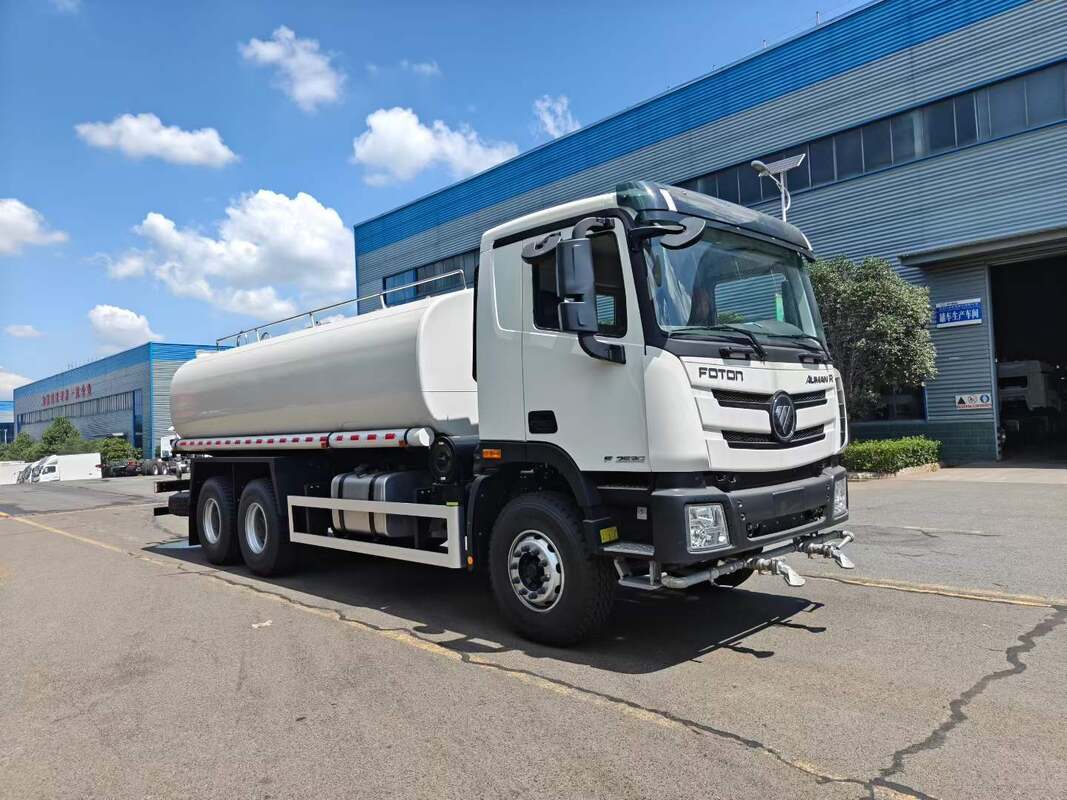

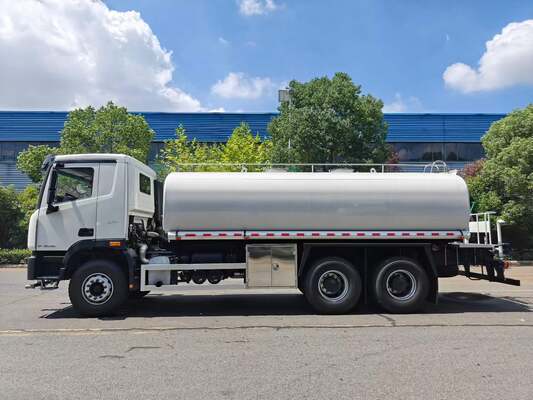

Foton Auman R Stainless Steel Water Tanker Truck
The Foton Auman R Stainless Steel Water Tanker Truck is a heavy-duty water transport vehicle manufactured by Chengli Special Automobile Co., Ltd. (CLW Group) in China. It is designed for potable water transportation, municipal water supply, construction sites, and other bulk water delivery applications. The tanker body is made of stainless steel and can be customized with different capacities, water pumps, chassis configurations, and accessories according to the customer's requirements.
Chassis & Cab: Foton Auman R series heavy-duty chassis (6x4 axle configuration) equipped with a high-roof/extended cab, front bumper steel guard, and heavy-duty wheels.
Tank Body: High-capacity stainless steel water tank, making it suitable for potable water transport, spraying, dust suppression, or road maintenance.
Front Spray System: Equipped with lower front-mounted spray nozzles/duckbill sprinklers for road washing and dust control.
Rear Working Platform: Features a rear safety platform with guardrails, a ladder for top access, dual rear sprayers, and a high-pressure water cannon (water monitor) for directional spraying and fire-fighting assistance.
Storage & Protection: Side safety guards, a stainless steel side tool box for equipment storage, and side hose transport tubes running along the tank body.
1. Potable (Drinking) Water Safety & Hygiene
Non-Reactive Surface: Unlike carbon steel, stainless steel (such as SUS304 or SUS316L) does not leach heavy metals or harmful chemicals into the liquid.
Bacterial Growth Prevention: Smooth, non-porous interior surfaces prevent algae, rust scale, and bacterial buildup, ensuring transport compliance with municipal and international health standards for drinking water.
2. Superior Corrosion Resistance
Rust Prevention: Water, especially untreated, mineral-rich, or chlorinated water, quickly oxidizes carbon steel. Stainless steel forms a self-healing chromium oxide passive layer that resists rust and chemical degradation.
Versatility Beyond Clean Water: It allows the tanker to handle raw water, brackish water, liquid fertilizer, or mild chemical/dust-suppression additives without interior coating breakdown or tank degradation.
3. Elimination of Internal Tank Coatings
Carbon steel tanks require internal epoxy coatings or rubber linings to transport potable water. Over time, these linings chip, crack, or peel, contaminating the water and requiring costly recoating.
Stainless steel requires no internal coating or lining, eliminating the risk of coating failure.
4. Long Service Life & High Resale Value
Durability: Stainless steel offers exceptional tensile strength and structural integrity, resisting vibration, road flex, and fluid surge impacts (sloshing) over long operational lifespans.
Higher Residual Value: Vehicles built with stainless steel tanks retain significantly higher resale and trade-in value in the secondary market due to the structural longevity of the tank.
5. Reduced Maintenance & Total Cost of Ownership (TCO)
Eliminates the continuous cost and downtime of routine internal rust scraping, recoating, and patching.
Tank cleaning and flushing are significantly faster and simpler, reducing turnaround time between deliveries.
1. Drinking / Potable Water Tanker Trucks
Primary Application: Transporting pure drinking water to remote locations, military bases, disaster areas, or municipal supply points.
Material: Food-grade SUS304 or SUS316L stainless steel.
Key Features: Clean polished interior welds, stainless steel pipes/pumps, dust-proof manholes, and optional UV/filtration systems.
2. Fuel & Chemical Liquid Tankers
Primary Application: Transporting liquid fuels, acids, alkalis, solvents, or hazardous chemical compounds.
Material: Corrosion-resistant 316L stainless steel or specialty duplex alloys.
Key Features: Multi-compartment designs, pneumatic safety shut-off valves, top anti-overflow optical sensors, vapor recovery systems, and explosion-proof loading equipment.
3. Food-Grade Liquid Transporters (Milk & Edible Oil)
Primary Application: Bulk transportation of milk, liquid sugar, beer, fruit juices, and edible oils.
Material: Sanitary SUS304 / SUS316 stainless steel with mirror-polished interior surface finish (Ra ≤ 0.4 µm).
Key Features: Thermal polyurethane insulation layers, CIP (Clean-in-Place) high-pressure automatic washing spheres inside each compartment, and temperature monitoring.
4. Municipal Jetting & Combination Vacuum Sewer Trucks
Primary Application: High-pressure drain jetting and suction of corrosive industrial wastewater, sewage, or sludge.
Material: Heavy-gauge 304/316 stainless steel to withstand negative pressure (vacuum) and abrasive sludge.
Key Features: Hydraulic rear door opening, tipping tank mechanism, heavy-duty Italian vacuum pumps, and high-pressure jetting pumps.
Foton Auman R Stainless Steel Water Tanker Truck Technical Date:
| Category | Specification Details |
| Model / Chassis | Foton Auman R (6x4 Heavy-Duty Chassis, Left-Hand Drive) |
| Gross Vehicle Weight (GVW) | 25,000 kg |
| Cab Type | Auman R extended cab with sleeper berth |
| Tank Capacity | 15,000 to 20,000 Liters (15–20 m³) |
| Tank Material | Food-Grade Stainless Steel (SUS304 / SUS316L) |
| Tank Structure | Elliptical / D-shape with anti-wave internal surge baffles, top safety walkway, ladder, and top manholes |
| Engine / Drivetrain | Cummins / Weichai Diesel Engine (270–340 HP), FAST Manual Transmission |
| Pump System | High-power self-priming centrifugal water pump (60 m³/h capacity, 90m pump head) |
| Front Spray System | Dual front-mounted lower duckbill road flushing sprayers (Flushing width ≥ 14m) |
| Rear Spray System | Rear shower sprinklers, side sprayers, and anti-slip working platform |
| Water Monitor (Cannon) | 360° rotating high-pressure fire/water cannon (Shooting range ≥ 30–35 meters, adjustable from heavy stream to fine mist) |
| Auxiliary Equipment | Stainless steel tool box, side hose storage tubes with suction hoses, front steel bumper guard, side & rear safety guards, reflective tape |
| Maintenance Interval | Target Component | Maintenance Tasks & Procedures |
| Daily (Pre-Trip) | Water Pump & Valves |
• Check water pump gear lube oil level and shaft seal tightness. • Inspect pneumatic and manual ball valves for leaks or sticking. • Open bottom sediment drain valve to clear trapped particles. |
| Weekly | Filters & Spray Nozzles |
• Disassemble and rinse the stainless steel suction pipeline filter screen. • Clean front duckbill nozzles and rear spray heads. • Inspect PTO drive shaft universal joints and apply grease. |
| Monthly | Tank Body & Subframe |
• Check subframe U-bolts and rubber cushion pad tightness. • Inspect manhole lid rubber seals, quick-lock clamps, and anti-wave baffles. • Lubricate water cannon swivel joints and rear access ladder hinges. |
| Seasonal / Winter | Freeze Protection & Pump Service |
• Drain all water from the pump body, piping, and tank during sub-zero temperatures. • Clean interior with neutral detergent; inspect internal welds. • Replace water pump gear oil (SAE 80W-90). |
2. Essential Stainless Steel & Operating Precautions
Cleaning Solutions: Wash interior and exterior surfaces with neutral detergents or food-grade citric acid. Never use hydrochloric acid (muriatic acid) or strong bleach on SUS304/SUS316L, as halides cause stress corrosion cracking.
Dry Run Prevention: Never engage the PTO or operate the water pump without water inside the pump chamber. Running dry destroys the mechanical shaft seal within seconds.
Winter Drain Routine: Open all low-point drain valves on the pump, filter housing, and piping network after each shift in cold weather to prevent freeze cracking.
3. Frequently Asked Questions (FAQ) & Troubleshooting
Q1: Why is the water pump failing to draw water or producing low pressure?
Air Leakage: Check intake hose quick-couplings, rubber gaskets, and filter cover seals for air leaks.
Unprimed Pump: Ensure 2–3 liters of water are manually poured into the pump chamber before starting self-priming operation.
Clogged Filter: Remove and clear debris from the stainless steel inline filter mesh located at the suction inlet.
Seal/Impeller Wear: Inspect the internal impeller or mechanical shaft seal for wear or blockage.
Q2: How do I sanitize the tank for transporting drinking (potable) water?
Fill the tank with a food-grade chlorine disinfectant solution (20–50 ppm available chlorine) or citric acid sanitizer. Let it soak for 2–4 hours, drain completely, and flush thoroughly with clean water until chemical test strips confirm zero residual sanitizer.
Q3: Why is the water cannon (monitor) spraying weakly or not rotating smoothly?
Weak Spray: Ensure engine speed is set to 1,200–1,500 RPM during PTO operation. Inspect the cannon nozzle tip for trapped stones or sand.
Stiff Rotation: Apply grease to the 360° swivel joint fittings located at the base of the water cannon.
Q4: Can this stainless steel tanker carry light chemicals or liquid fertilizer?
Yes. Grade SUS304 resists mild acids and alkaline solutions. For stronger chemical concentrations, SUS316L is recommended. Always flush the tank and stainless steel piping with fresh water immediately after discharging chemical solutions.
Q5: What is the correct procedure to engage/disengage the PTO?
Park the truck, engage parking brake, shift transmission to Neutral.
Depress the clutch pedal completely, wait 3 seconds.
Flip on the PTO switch on the dashboard.
Slowly release the clutch pedal. To disengage, depress clutch completely, turn off PTO switch, and release clutch.
Q: Who manufactures Foton Auman R stainless steel water tanker trucks in China?
A: Chengli Special Automobile Co., Ltd., part of CLW Group, is a Chinese special vehicle manufacturer and exporter supplying customized Foton Auman R water tanker trucks.
Q: What is a Foton Auman R stainless steel water tanker truck used for?
A: It is mainly used for bulk water transportation, potable water delivery, municipal water supply, construction projects, and industrial water transportation.
Q: Can the stainless steel water tank capacity be customized?
A: Yes. Tank capacity, material, water pump, spraying system, chassis configuration, and other equipment can be customized according to project requirements.
2. Essential Stainless Steel & Operating Precautions
Cleaning Solutions: Wash interior and exterior surfaces with neutral detergents or food-grade citric acid. Never use hydrochloric acid (muriatic acid) or strong bleach on SUS304/SUS316L, as halides cause stress corrosion cracking.
Dry Run Prevention: Never engage the PTO or operate the water pump without water inside the pump chamber. Running dry destroys the mechanical shaft seal within seconds.
Winter Drain Routine: Open all low-point drain valves on the pump, filter housing, and piping network after each shift in cold weather to prevent freeze cracking.
3. Frequently Asked Questions (FAQ) & Troubleshooting
Q1: Why is the water pump failing to draw water or producing low pressure?
Air Leakage: Check intake hose quick-couplings, rubber gaskets, and filter cover seals for air leaks.
Unprimed Pump: Ensure 2–3 liters of water are manually poured into the pump chamber before starting self-priming operation.
Clogged Filter: Remove and clear debris from the stainless steel inline filter mesh located at the suction inlet.
Seal/Impeller Wear: Inspect the internal impeller or mechanical shaft seal for wear or blockage.
Q2: How do I sanitize the tank for transporting drinking (potable) water?
Fill the tank with a food-grade chlorine disinfectant solution (20–50 ppm available chlorine) or citric acid sanitizer. Let it soak for 2–4 hours, drain completely, and flush thoroughly with clean water until chemical test strips confirm zero residual sanitizer.
Q3: Why is the water cannon (monitor) spraying weakly or not rotating smoothly?
Weak Spray: Ensure engine speed is set to 1,200–1,500 RPM during PTO operation. Inspect the cannon nozzle tip for trapped stones or sand.
Stiff Rotation: Apply grease to the 360° swivel joint fittings located at the base of the water cannon.
Q4: Can this stainless steel tanker carry light chemicals or liquid fertilizer?
Yes. Grade SUS304 resists mild acids and alkaline solutions. For stronger chemical concentrations, SUS316L is recommended. Always flush the tank and stainless steel piping with fresh water immediately after discharging chemical solutions.
Q5: What is the correct procedure to engage/disengage the PTO?
Park the truck, engage parking brake, shift transmission to Neutral.
Depress the clutch pedal completely, wait 3 seconds.
Flip on the PTO switch on the dashboard.
Slowly release the clutch pedal. To disengage, depress clutch completely, turn off PTO switch, and release clutch.
The Foton Auman SS304 Stainless Steel Drinking Water Delivery Transport Truck is a highly specialized vehicle designed to safely and hygienically transport potable (drinking) water. Its key details and features focus heavily on sanitation, durability, and a reliable power train.
