| Brand Name: | Dongfeng Captain |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

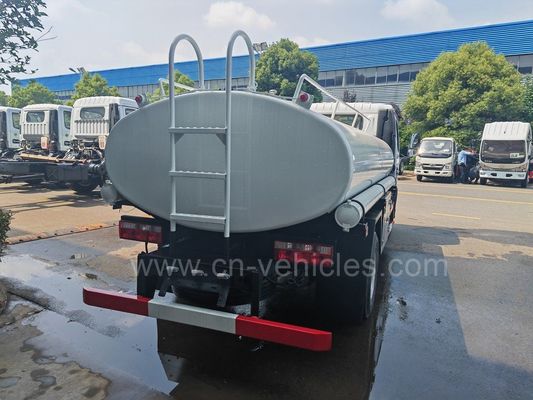

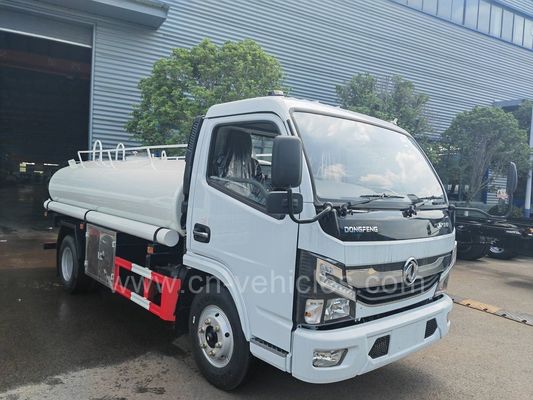

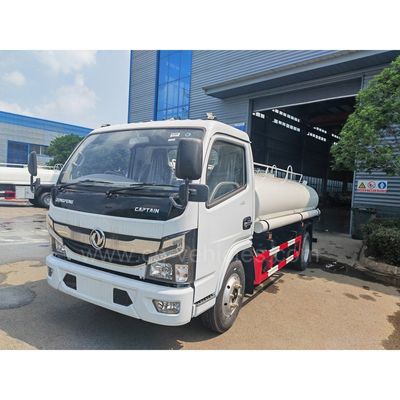

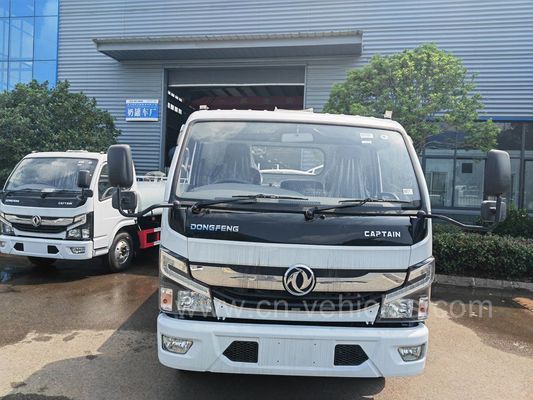

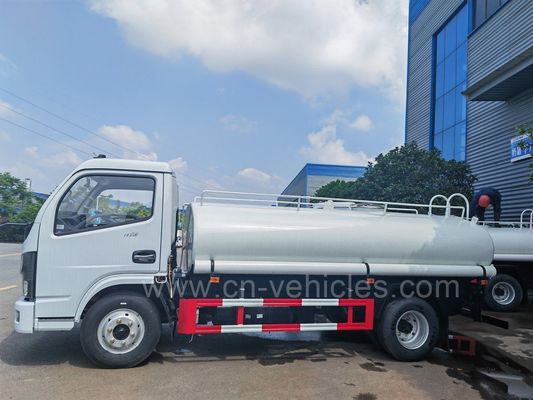

Dongfeng Captain RHD 5T Stainless Steel Water Tanker Truck with an 8,000 Liter capacity for food grade use is a specialized commercial vehicle designed primarily for the safe transport of potable (drinking) water or other food-grade liquids.
For a truck to be certified for food grade water transport, the tank must have specific features:
This specific type of tanker truck is heavily used in:
Potable water tanker (also called drinking water tanker, stainless steel water tanker, agua potavelwater, tank truck, water truck, water lorry, water tanker, watering truck, Camión cisterna) is used to transport and supply potable water, widely used in drought relief.
We adopt non-toxic treatment inside tank or tank made of stainless steel, so it is very suitable for transporting drinking water.
| Model | Dongfeng Captain Series (e.g., CLW5110GSSD4) | Specific chassis model will vary. |
|---|---|---|
| Driving Type | 4x2 | Standard road drive. |
| Steering | Right-Hand Drive (RHD) | Suitable for markets like Australia, New Zealand, and parts of Africa/Asia. |
| Curb Weight | ≈4,500−5,000 kg | Weight of the empty truck. |
| Gross Vehicle Weight (GVW) | ≈10,000−12,000 kg | Total permissible weight (Truck + 8,000L of water). |
| Overall Dimensions | ≈6,900×2,200×2,500 mm (L x W x H) | Varies based on cab style. |
| Max. Speed | ≈85−95 km/h | |

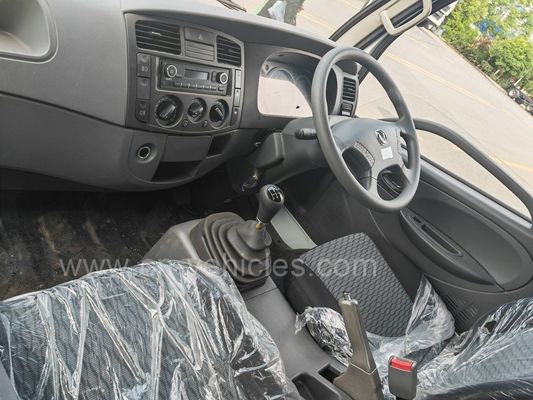

| Cabin | Single Row, 2 or 3 seats. | May include optional A/C. |
| II. Chassis Data | ||
| Chassis Brand | Dongfeng (DFAC) | |
| Wheelbase | ≈3,300−3,800 mm | Determines vehicle length and stability. |
| Engine Model | Chaoyang, Dongfeng Cummins, or Isuzu-Tech | Varies based on emission standard. |
| Engine Power | ≈120−160 HP (≈90−120 kW) | |
| Engine Emission Standard | Euro III, Euro IV, or Euro V | Varies based on destination country's regulations. |
| Fuel Type | Diesel | |
| Transmission | Manual, 5 or 6 speed forward + 1 reverse. | |
| Tire Specification | ≈8.25R20 or ≈9.00R20 | Includes 1 spare tire. |
| Brake System | Air Brake | Standard for medium-duty trucks. |
| Tank Volume | 8,000 Liters (≈8 CBM) | Exact usable capacity. |
| Tank Material | Stainless Steel SS304-2B | Non-toxic, food-grade standard, excellent corrosion resistance. |
| Tank Thickness | ≈4 mm | Tank body and baffles. |
| Internal Baffles | Yes | Multiple wave-proof baffles to reduce liquid surging. |
| Manhole | One lockable, sealed manhole on top. | Designed to prevent external contamination. |
| Finish | Internal tank polished for sanitation. | |
| Water Pump Type | Self-Priming Centrifugal Pump | Driven by Power Take-Off (PTO) from the gearbox. |
| Pump Flow Rate | ≈30−60 m3/hour | ≈500−1000 Liters/minute. |
| Suction Height | ≈6−7 meters | Max vertical suction lift. |
| Piping & Valves | Stainless steel for all liquid contact points. | Ensures food safety and zero rust. |
| Inlet/Outlet | Fire Hydrant Inlet (for fast filling), Gravity Discharge Valve, Pump Discharge Valve. | Typically fitted with quick couplings. |
| Chassis Specification | |||
|---|---|---|---|
| Item No. | Parameters | ||
| Chassis Brand | Dongfeng | Overall Dimension | 5500×1715×2055mm |
| Gross Vehicle Weight | 4015kg | Curb Weight | 2480 kg |
| Loading Weight | 1405 Kg | Wheel Base | 2800 mm |
| Cabin | Single, Left Hand Driving | ||
| Engine | Japan I SUZU | ||
| Overhang( Front/Rear) | 1140/1810(mm) | ||
| Fuel type | Diesel | ||
| Axle load | 1800/3500(kg) | ||
| Angle(Approach/departure) | 16/22(°) | ||
| Transmission/Gearbox | 5 Forward & 1 Reverse Gear | ||
| Brake System | Pneumatic | ||
| Steering Gear | Power Assistant | ||
| Tire | 6.00-15, 6 Pieces with 1 spare tire | ||
| Maximum speed | 90(km/h) | ||
| Tank specification | 5,000 liters, tank thickness is 3 mm, seal is 4 mm Tank Material: Stainless or Aluminium alloy |
||
| Feature | Detail |
|---|---|
| Chassis | Dongfeng Captain series (4x2 standard drive). |
| Driving Position | Right Hand Drive (RHD). |
| Engine | Diesel, typically a Dongfeng-licensed engine (e.g., Chaoyang, or sometimes Cummins/Isuzu tech), offering 120 HP to 160 HP. |
| Transmission | Manual gearbox (5 or 6 speeds forward). |
| Gross Vehicle Weight (GVW) | Approximately 10,000 kg to 11,500 kg. |
| Brake System | Air Brake system for reliable stopping power under load. |
| Safety Features | Full lighting kit, often includes rear warning lights, and optional reversing camera/sensors. |
| Component | Specification/Function |
| Capacity | 8,000 Liters (≈8 CBM) |
| Tank Material | Stainless Steel 304 (SS304) or 304-2B. |
| Thickness | Tank shell typically ≥4 mm. |
| Food Grade Certification | All internal surfaces, welds, and contact points comply with national/international food safety standards. |
| Internal Baffles | Multiple SS304 anti-surge baffles are welded inside to minimize liquid sloshing, ensuring vehicle stability during braking and cornering. |
| Manhole | One or more sealed, lockable manholes on the top of the tank to prevent contamination and allow access for deep cleaning/inspection. |
| Exterior | Tank body often mounted on a sub-frame to isolate it from chassis flex. |
| Component | Specification/Function |
| Piping & Valves | All pipes, valves, and fittings in contact with the water are Stainless Steel 304 (SS304). |
| Water Pump | High-power, self-priming centrifugal pump, driven by the truck's Power Take-Off (PTO). |
| Pumping Capability | Self-suction from water sources and Pressure discharge for delivery. |
| Discharge Ports | Includes a Gravity discharge valve for fast unloading and a Pump discharge valve for controlled delivery or connecting to distribution hoses. |
| Inlet Port | Typically a standardized fire hydrant interface for quick, high-volume filling. |
| Cleaning System (Optional) | Some food grade tankers include a CIP (Clean-In-Place) system with spray balls inside the tank for automatic disinfection/cleaning. |
| Water Level | Equipped with a water level gauge (often transparent tube or electronic) for easy monitoring. |
While primarily for food transport, these trucks are often versatile:
Chengli is recognized for producing one of the most comprehensive ranges of special-purpose vehicles in the industry, totaling over 800 types of vehicles. Their most competitive products include:
The company places a high emphasis on quality and has acquired numerous domestic and international certifications, which are crucial for specialized vehicles:
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Chengli Special Automobile Co., Ltd. has a substantial and rapidly growing presence in the international market, leveraging its large product variety and competitive pricing.
Here are the key details about their overseas market operations:
Exported Countries: Chengli exports its special trucks to a wide range of markets, generally stating they serve more than 50 countries and regions worldwide, and some sources even cite over 80.
Key Geographic Markets: Their main focus areas for export are:
Annual Export Revenue: The annual export revenue for the group is a significant part of their business, with figures suggesting it is in the tens of millions of US dollars.
The most frequently exported vehicles are those tied to municipal, infrastructure, and energy needs:
Chengli's international success is supported by several strategic factors:
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
