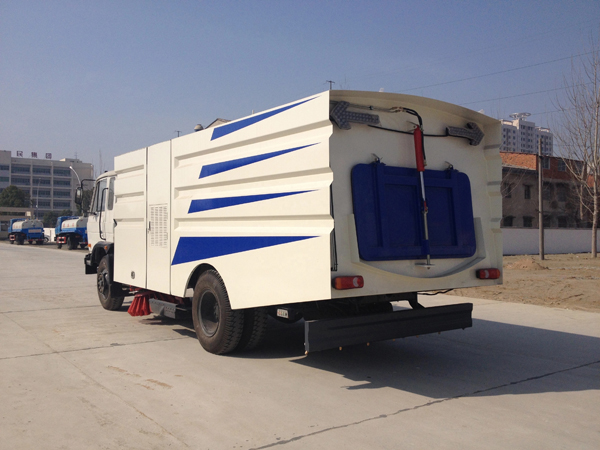

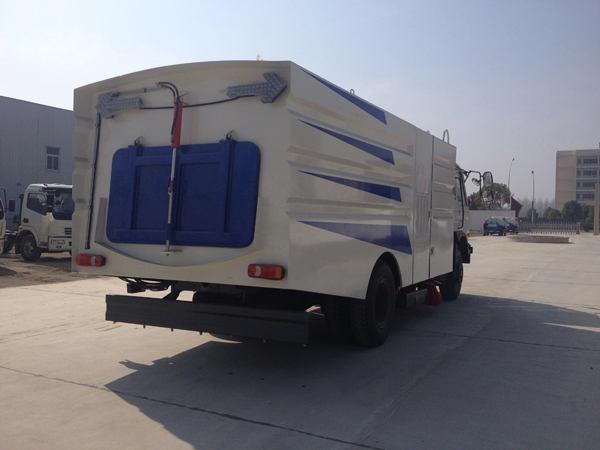

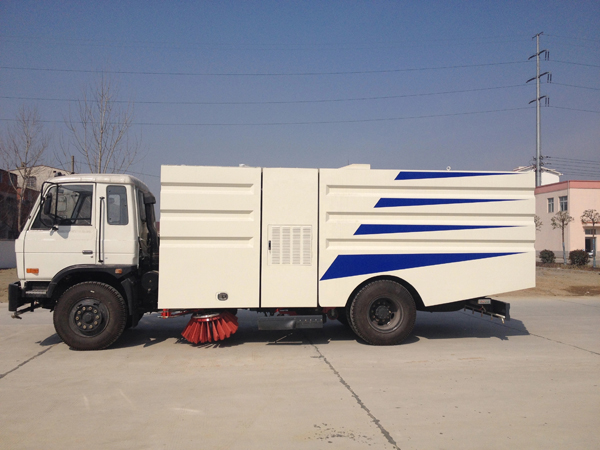

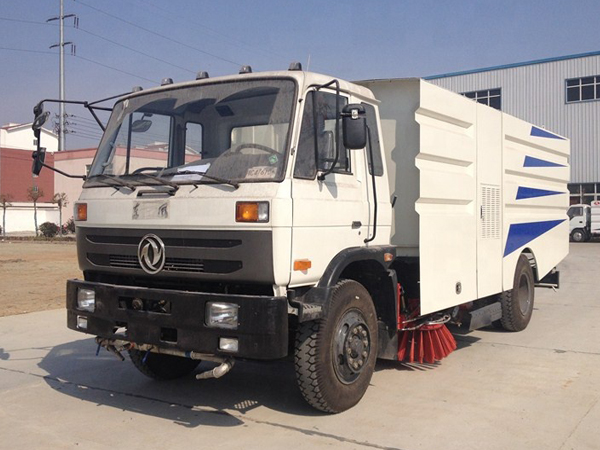

Dongfeng 153 190HP 11m3Road Sweeper Machine

GVW16000kg                                            Driving Type 4x2

Model

CLW5165TSLE

Cab

A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Engine(Hp)

190

Power(Kw)

140

Wheelbase

4500

Front/Rear Suspension

1230/2150

Steering

Power steering

Approach/departure angle

19/9

Wheels & tire

9.0-20

Tire number

6+1

Tank Dimensions(mm)

Cubage (m3)

Water tank 4 ,dust tank 7

RHD or LHD

optional

Overall Dimensions(mm)

7880×2500×3100

Curb weight (Kg)

5900

Engine

Model

B190 33

Horsepower

190

Maximum output Kw

140

Maximum torque N.m

640

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Displacement

5.900L

Cummins brand, Euro 3

Driving passenger

2,3

Transmission

8 speed forward and one reverse, manual

Front Axle

5T

Rear Axle

10T

Brake System

air brake  ,exhaust brake

Color and LOGO

customized

Electric system

24V

Sweeper

Water tank

4m3

Dust tank

7m3

Sweeping width

3.2m

Cleaning efficiency

98%

Unloading angle

45°

Maximum suction particle

120mm

Max cleaning ability

70000 m2/h

Sweeping speed

3-25km/h

Standard configuration

Tank body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, hydraulic system and electrical system and so on.

Optional configuration

Front and rear road flushing system ,garbage tank self cleaning system.

Delivery date

Within 20 days after receipt advance

Packing

Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
