Road Sweeper/Cleaning TruckYou are here:HOME >> PRODUCTS >> Road Sweeper/Cl...
ISUZU 5m3 Stainless Steel Tanker Vacuum Sweeper Truck for Air Port Cleaning
road sweeper truck (also called street cleaning truck , truck mounted sweeper , Road cleaning truck , street sweeping truck ) Is used for all cleaning , brushing and vacuum collecting of surface dusts , leaves , mud , soil , sand , stone chips , gravels and other small particles on the ground of city / municipal roads and areas .
Description FEEDBACK

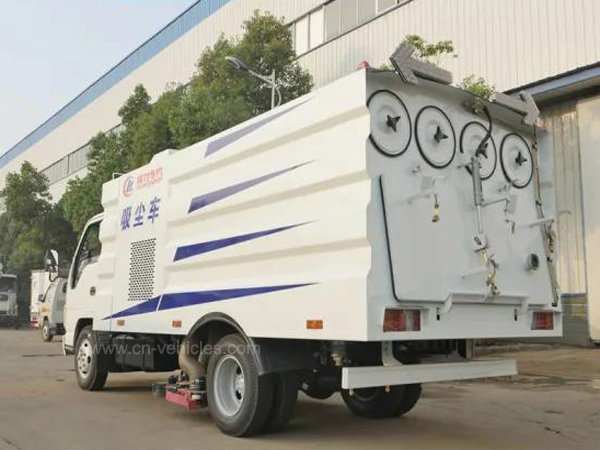

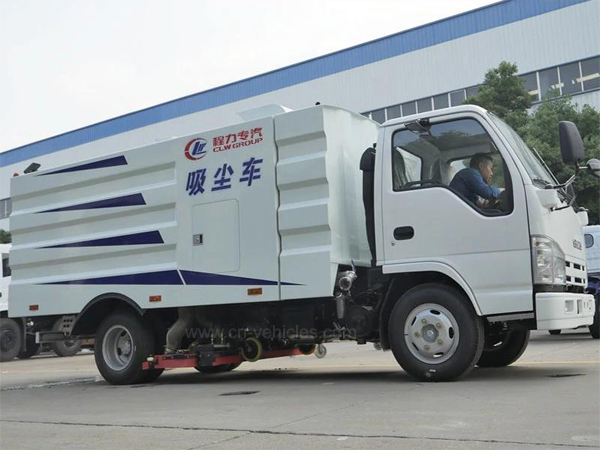

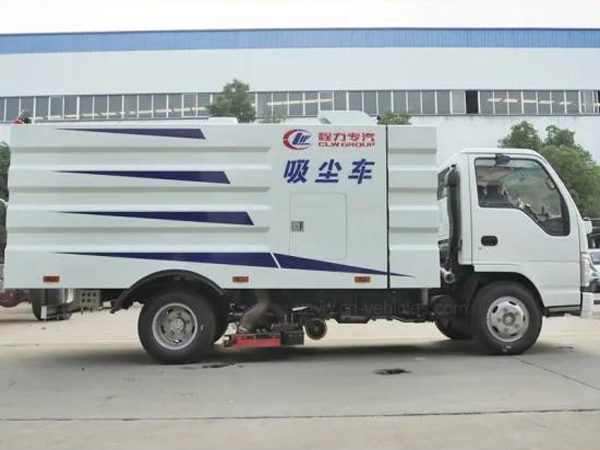

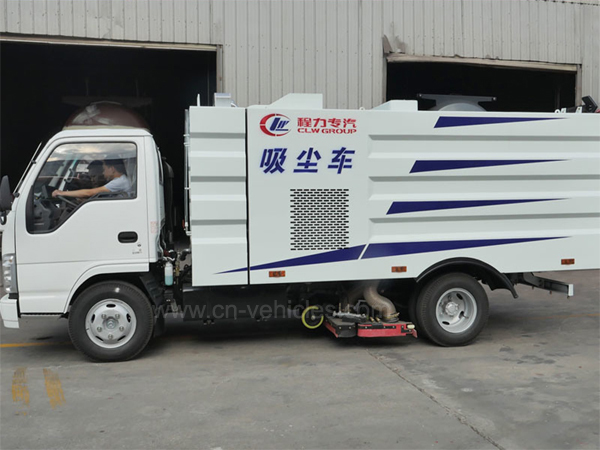

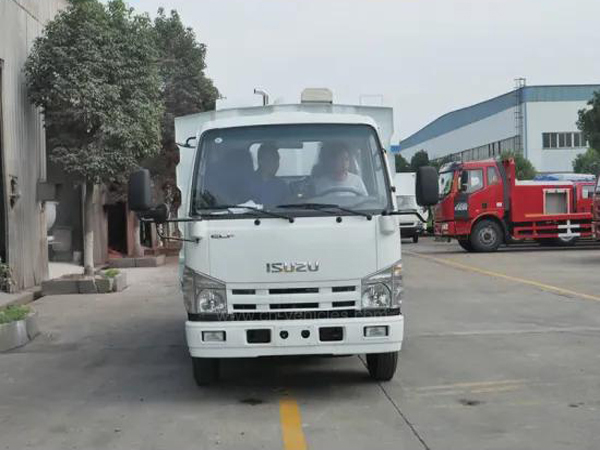

ISUZU 4x2 5m3 Stainless Steel Tanker Vacuum Sweeper Truck for Air Port Cleaning


Description:

1. We can supply all brands of special trucks, such as Dongfeng, ISUZU, Sinotruck, Foton, Faw, north Benz(beiben), JAC, JMC, etc.
2. The drive type could be 4X2, 4X4, 6X4, 6X6, 8X4.
3. Certification: ASM, ISO, BV, SGS, CCC etc.

Advantage:

1. Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
2. The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
3. With efficient filtration system
4. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
5. Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.



Chassis

Drive Model

4X2, Left hand drive

Vehicle Main Dimensions

Dimensions(L x W x H)(mm)

6300*2000*2500

Wheel base (mm)

3360

Overhang (front/rear) (mm)

1015/1815

Wheel track (front/rear) (mm)

1504/1425

Approach/Departure angle(°)

24/13

Weight in KGS

Curb Weight (kg)

3880

Front/Rear axle loading(kg)

2000/4000

Max. driving speed(km/h)

110

Engine

Model

4KH1CN5LS

Type

4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

98

Displacement (ml)

2999

Emission standard

Euro V

Gearbox

5 forwards & 1 reverse

Steering Gear

Power steering, hydraulic steering with power assistance

Brakes

Hydraulic oil brake

Tire

700R16 tire , 6 + 1(spare tire)

Upper & Equipment

Tank

Garbage tank

Tank material

Stainless steel 304

Tank volume(cbm)

4.0 cbm

Water tank

Tank material

Stainless steel 304

Tank volume(cbm)

1.0 cbm

Auxiliary engine

Model

ISUZU Brand

Quantity(No.)

1

Power(kw/HP)

55 /75

Blower

Quantity(No.)

1

Brand

China famous brand

Power(kw)

18

Speed(r/min)

2900

Filter barrel

Quantity(No.)

8

Size(mm)

350*240*900

Vacuum cleaner

Main Vacuum cleaner

Quantity(No.)

1

Width(mm)

1800

Side Vacuum cleaner

Quantity(No.)

2

Width(mm)

600

Max. Working width(mm)

2400

Sucking Nozzle wheel

Quantity(No.)

4

Height

Adjustable

Remarks

  1. Rear LED pilot lamp
  2. Self unloading box body
  3. The color will be designed on basis of your requirements.



Working Video
