Isuzu 600P Vacuum Dust Truck Mounted Sweeping Machines

Road Sweeper Trucks are environmental protection trucks, who adopt omni-directional water spraying. The structure are four brush discs in the middle and sucking disc in rear position to make there are no no flying dust and enough suction supplied.

Description FEEDBACK

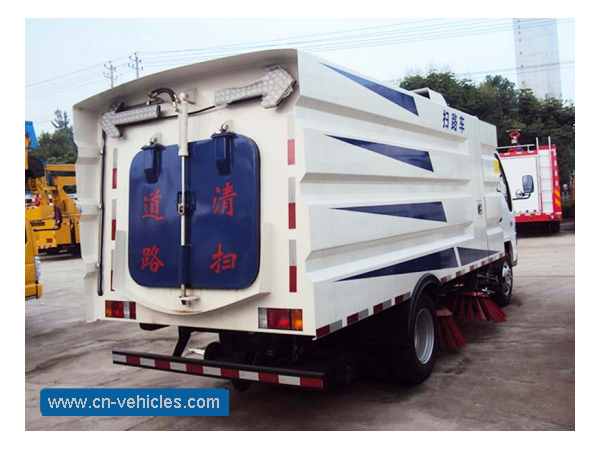

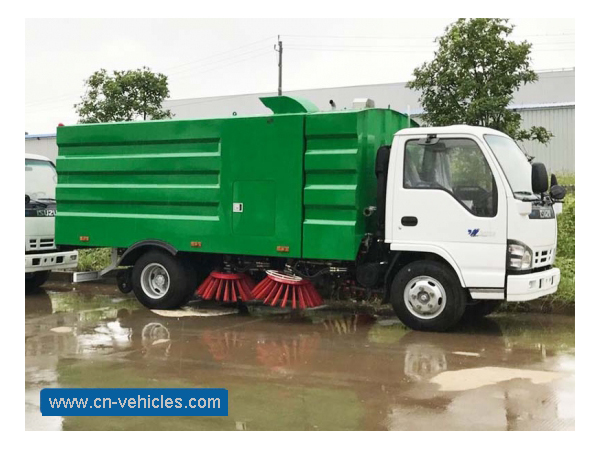

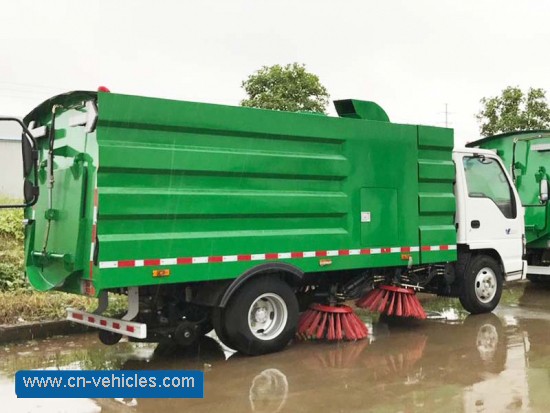

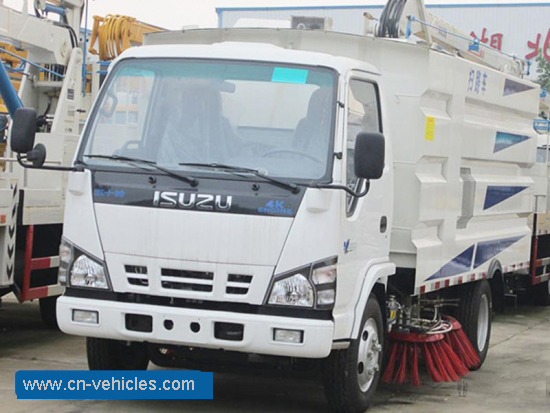

Isuzu 600P Vacuum Dust Truck Mounted Sweeping Machines



Road Sweeper Trucks are environmental protection trucks, who adopt omni-directional water spraying. The structure are four brush discs in the middle and sucking disc in rear position to make there are no no flying dust and enough suction supplied.



Street cleaning truck is specially used in road cleaning and collecting rubbish and transporting them to garbage collection spot.You can see this vehicle on the main street,central park,airport and some other places.As one of the city sanitary equipment,it functions efficiently and makes our city and environment clean and pretty good.

Technical Date:

Vehicle performance and parameters

Item

Parameter

Unit

Working Performance

Max sweep width

3.5

m

Low pressure flushing width

24

m

Sweep speed

3—20

km/h

Max sweep capacity

60000

m2/h

Max inhalation of granularity

≥110

mm

Angle of unloading

≥48

Volume of water tank

2000

L

Volume of garbage tank

7000

L

Driving Performance

Max speed

98

km/h

Max gradeability

30

%

Braking distance

≤10

m

Min turning diameter

≤13.6

m

Fuel Performance

Fuel consumption(Driving)

≤12

L/100km

Fuel consumption(Sweep working at 8km/h)

6.5

L/h

2.7

L/10000m2

Quality Parameters

Curb weight

4700

kg

Rated capacity

4255

kg

GVW

7300

kg

Dimension Parameter

Overall dimensions

6335*2050*2680

mm

Wheelbase

3815

mm

Track front

1504

mm

Track rear

1425

mm

Front suspension

1015

mm

Rear suspension

1375

mm

Approach angle

24

Departure angle

15
