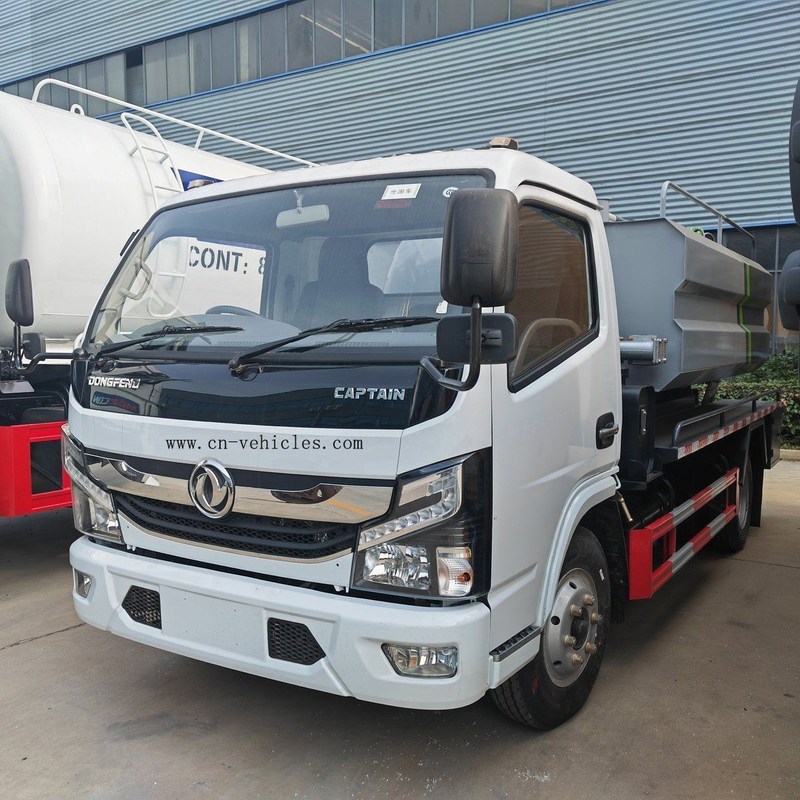

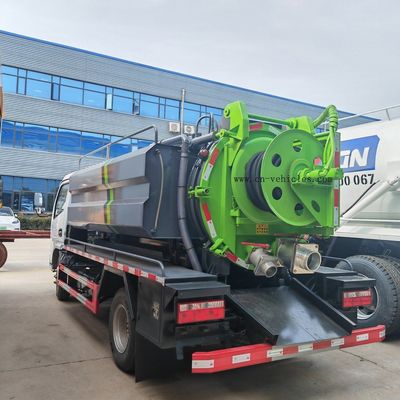

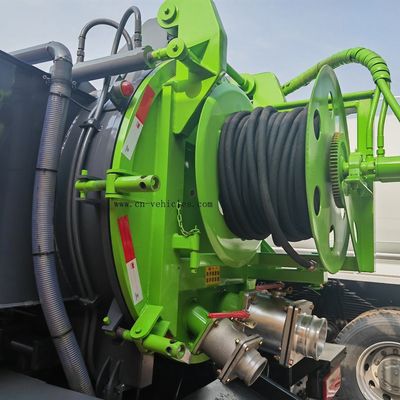

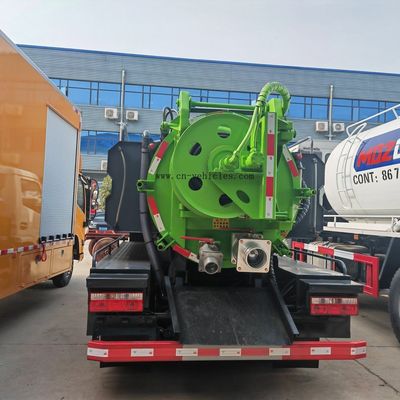

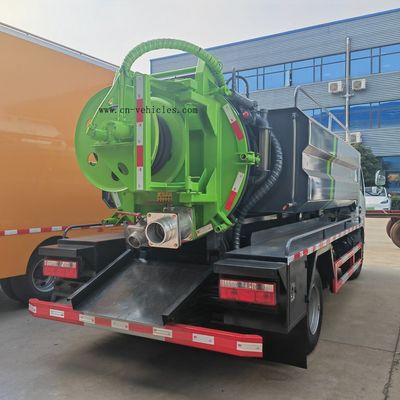

Dongfeng Captain Rhd 5000liter Vacuum Suction Sewage Truck
Dongfeng Captain Right-Hand Drive (RHD) 5000-liter Vacuum Suction Sewage Truck is a specialized municipal sanitation vehicle designed for markets that require right-hand drive configurations (such as in many parts of Asia, Africa, and Oceania).
This truck is primarily used for the collection, transport, and discharge of sewage, sludge, fecal matter, and other liquid/semi-liquid waste from septic tanks, cesspools, and sewer lines.
Sewage Vacuum truck (also called Suction vacuum truck, vacuum vehicle, Japanese sewage tank truck, Sewage disposal tank trucks, vacuum tank trucks) is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.
Vacuum Tank truck made by Chengli Speical Automobile CO,.Ltd Trucks is necessary for city sanitation department, waste processing company, big factory..., it can help to clean the sewer pipe underground, clean the sludge in the river around city, it also can help big factory to clean the greasy dirt and waste water.More specification about the vacuum tank please kindly refer to following information.
Dongfeng Captain Rhd 5000liter Vacuum Suction Sewage Truck Technical sheet :
| Category | Parameter | Typical Specification |
|---|---|---|
| Vehicle | Truck Model | Dongfeng Captain series (e.g., DFA/EQ series chassis) |
| Drive Type | 4x2 | |
| Steering | Right-Hand Drive (RHD) | |
| Overall Dimensions (L*W*H) | Approx. 5995*2000*2700 mm (Varies) | |
| Gross Vehicle Weight (GVW) | Approx. 7360−7800 kg | |
| Curb Weight | Approx. 3620−4625 kg (Varies based on build) | |
| Rated Load Capacity | Approx. 2980−5000 kg | |
| Max. Speed | Approx. 90 km/h | |
| Chassis | Chassis Model | Varies (e.g., EQ1081TJA, DFA1080SJ11D3, EQ1070 series) |
| Wheelbase | Approx. 3300 mm (Commonly 3308 mm) | |
| Axle Load | Varies (e.g., 3050 kg/4445 kg) | |
| Tire Specification | 7.00R16 or 7.50R16 (Commonly 6+1 spare) | |
| Engine | Engine Brand/Model | Varies (e.g., Chaochai, Yuchai, Cummins equivalent) |
| Engine Power | Approx. 90−136 HP (66 - 100 kW) | |
| Emission Standard | Varies (e.g., Euro II, Euro III, Euro IV, Euro V) | |
| Fuel Type | Diesel | |
| Transmission | Manual, 5-speed or 6-speed | |
| Superstructure | Tank Volume (Effective) | 5000 Liters (5 m3) |
| Tank Material | Carbon Steel (e.g., Q235) | |
| Tank Thickness | Approx. 5 mm (Body), 6 mm (End Plates) | |
| Vacuum Pump | China Famous Brand (e.g., SK-6 water circulation vacuum pump) | |
| Suction Time (Full Tank) | ≤5−10 minutes | |
| Max. Suction Depth (Vertical) | ≥7−9 meters | |
| Max. Suction Distance (Horizontal) | Up to 80 meters | |
| Discharge Method | Hydraulic tipping/lifting and hydraulic rear cover opening | |
| Standard Equipment | PTO, Power take-off, Oil-gas separator, Water-gas separator, Anti-overflow valve, Sight window, 6−7 m suction hose. |
| Complete Vehicle | |
| Vehicle | Vacuum Fecal Truck |
| Overall dimensions (mm) | 9700 x 2550 x 3280 |
| Garbage compactor (m3) | 12 |
| Gross Vehicle Weight (kg) | Appro * 18000 |
| Net weight (kg) | Appro * 10200 |
| Loading | Appro * 7670 |
| Wheel base (mm) | 5550 |
| Max speed (km/h) | 95 |
| Truck Chassis Parameter | |
| Cabin | Flat top cabin ,a sleeper, power steering, air conditioner, central lock, electric doors and windows, 3 passengers, left hand drive |
| Drive form | 4*2 |
| Engine | Brand : Dongfeng |
| Model : 4HK1-TC50 | |
| Engine power : 205hp | |
| Fuel type : diesel. | |
| Displacement : 5193ml | |
| Emission standard : Euro 5 | |
| Transmission | 6 forward,1 rear, manual operated |
| Tire model | 11.00R20 |
| No.of tires | 6+1pcs |
Dongfeng Captain Rhd 5000liter Vacuum Suction Sewage Truck Application :
These powerful and efficient vacuum tank trucks are designed to vacuum up and recover a wide range of different materials, from liquids, solids, thick sludge, all while leaving the surface below safe and clean.
A vacuum tanker is a tank truck that has a pump and a tank. The pump is designed to pneumatically suck liquids, sludges, slurries, or the like from a location (often underground) into the tank of the truck. The objective is to enable the transport of the liquid material via road to another location. Vacuum trucks transport the collected material to a treatment or disposal site, for example, a sewage treatment plant.
