| Brand Name: | Dongfeng Captain |
| Model Number: | Dongfeng Captain |
| MOQ: | 1 unit |
| Price: | 15000-35000 per unit |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 10unit per month |

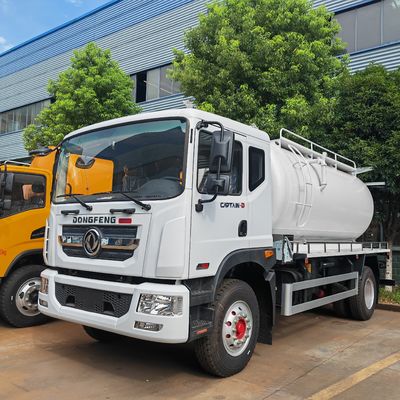

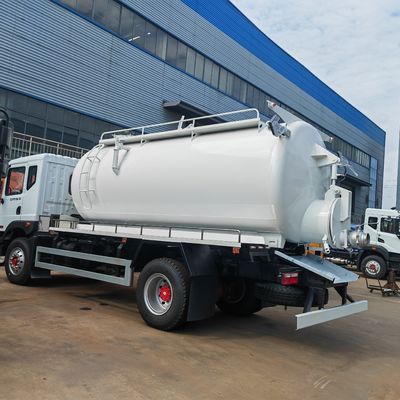

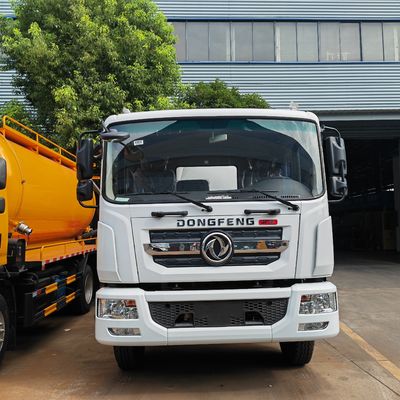

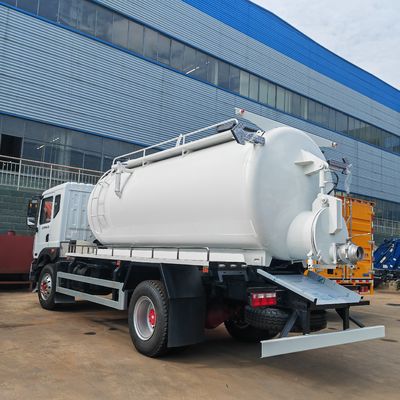

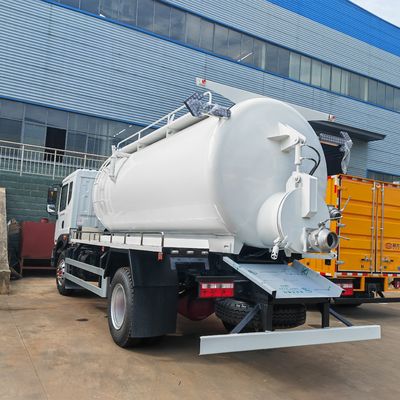

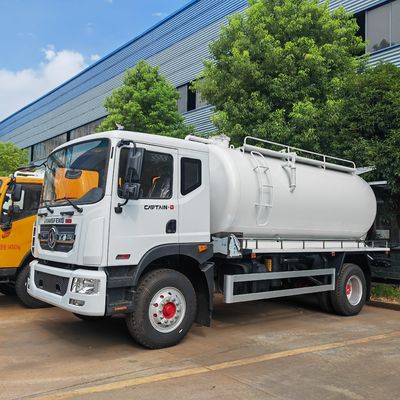

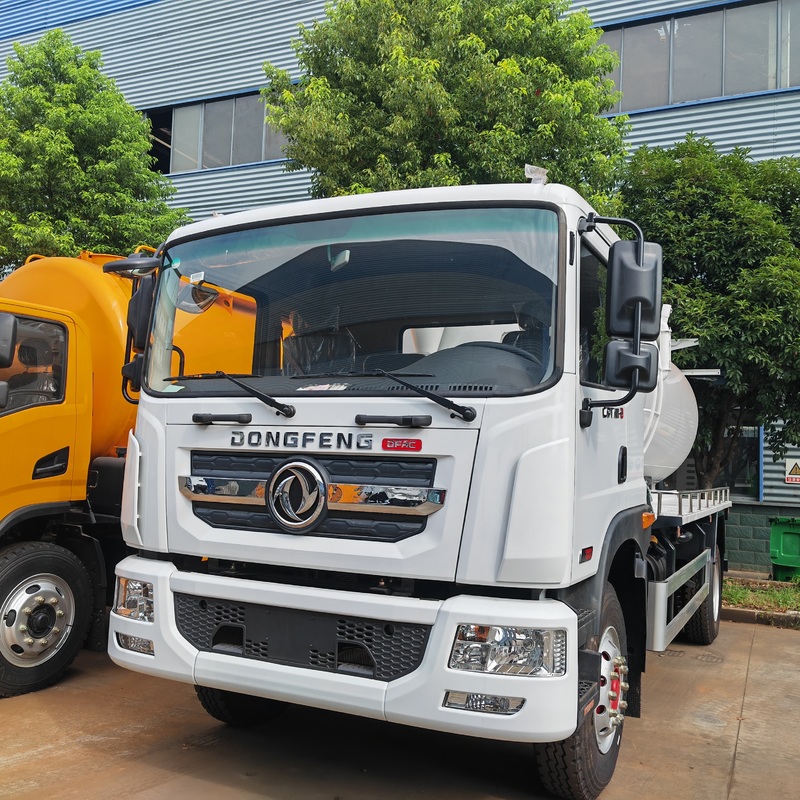

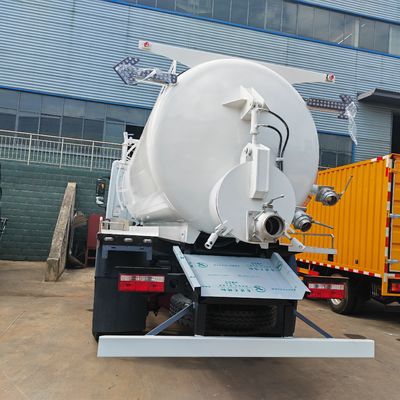

Dongfeng Captain D Cummins Engine Vacuum Sewing Sewage Tanker Fecal Suction Truck
Dongfeng Captain D Cummins Engine Vacuum Sewing Sewage Tanker Fecal Suction Truck" describes a specific type of specialized commercial vehicle
Dongfeng: This is a major Chinese automobile manufacturer. They produce a wide range of vehicles, including commercial trucks.
Captain D (or Captain series): This refers to a specific line or model series of light or medium commercial truck chassis produced by Dongfeng. The "Captain" line is a common platform for various specialty vehicles.
Cummins Engine: This indicates the truck is powered by an engine manufactured by Cummins, a well-known global engine producer. Cummins engines are often used in Dongfeng trucks, offering various horsepower options depending on the model and required emission standards (e.g., a common Cummins engine in medium Dongfeng trucks is around 160 HP to 190 HP).
Vacuum Sewage Tanker / Fecal Suction Truck: This is the primary function of the vehicle. It is a specialized tanker truck equipped with a vacuum pump and a sealed tank (usually made of carbon steel) designed to:
Dongfeng Captain D fecal suction truck equipped with a Cummins engine and a vacuum sewage/septic tank system—a specialized vehicle used for collecting and transporting sewage, sludge, or other liquid waste from septic systems, latrines, or sewage pits.
Key Features
Core Advantages
Dongfeng Captain D Cummins Engine Vacuum Sewing Sewage Tanker Fecal Suction Truck Technical sheet :
| Feature | Typical Specification Range | Notes |
|---|---|---|
| Chassis | Dongfeng Captain (e.g., D-series, D9, DFA1063) | A light to medium-duty chassis. |
| Drive Type | 4*2 | Common configuration for this size. |
| Engine Brand | Cummins | The specified engine brand. |
| Engine Model | Cummins ISF3.8L or B-series (e.g., B190-33) | Models vary. Typically in the 150 HP to 190 HP range for medium capacity. |
| Engine Power | 150 HP to 190 HP (approx.) | Horsepower depends on the specific Cummins model and emission standard. |
| Emission Standard | Euro 3, Euro 4, or Euro 5 | Varies by country of sale and model year. |
| Transmission | Manual (e.g., 6-speed, 8-speed) | |
| Tank Volume (Sewage/Fecal) | 3,000 Liters to 12,000 Liters (3 m³ to 12 m³) | Smaller capacities (e.g., 3m³ to 8m³) are more common for the Captain chassis. |
| Tank Material | Carbon Steel (e.g., 5 mm or 6 mm thick) | Designed to withstand vacuum and corrosion. |
| Vacuum Pump Brand | China top brand (e.g., SK-series, Weilong) or Imported (e.g., Italian brand) | Specified by the final manufacturer. |
| Vacuum Pump Type | Water-ring or Rotary Vane Vacuum Pump | |
| Max Suction Depth | ≥7 meters | A typical performance benchmark. |
| Suction Full-Tank Time | ≤5 to 12 minutes (depending on pump/tank size) | |
| Tank Unloading | Hydraulic Rear Dumping/Lifting | For quick discharge. |
| Rear Gate | Hydraulic Opening and Locking | Allows for solid waste discharge and cleaning. |
| Discharge Valve | DN100 mm or DN150 mm (e.g., at the rear) | Diameter of the main discharge outlet. |
| Suction Hose | 7 to 8 meters | Typical length supplied. |
| Safety Features | Anti-overflow protection system (with float ball valve) | Prevents sewage from entering and damaging the vacuum pump. |
| Gross Vehicle Weight (GVW) | 7,000 kg to 18,000 kg (approx.) | Varies significantly with tank capacity and chassis model. |
| Category | Details |
|---|---|
| Chassis Brand | Dongfeng Captain D |
| Engine Type | Cummins (often ISF 3.8 or 4.5L series) |
| Horsepower | Typically 130–180 HP |
| Drive Type | 4*2 |
| Transmission | 5-speed / 6-speed manual |
| Tank Capacity | 3,000–8,000 Liters (varies by model) |
| Tank Material | High-strength carbon steel or stainless steel |
| Vacuum Pump | Rotary vane or water-ring pump, e.g., SK-6, SK-9 |
| Vacuum Pressure | ≥ -0.08 MPa |
| Suction Pipe Diameter | 100mm (4 inches) or larger |
| Suction Depth | Up to 6–8 meters |
| Discharge Method | Rear tank dump + pressure discharge |
Dongfeng Captain D Cummins Engine Vacuum Sewing Sewage Tanker Fecal Suction Truck details :
"Dongfeng Captain D Cummins Engine Vacuum Sewing Sewage Tanker Fecal Suction Truck" is a specialized sanitation vehicle built on the Dongfeng Captain D chassis, utilizing a Cummins diesel engine for power.
2. Common Tank Capacities
The "Captain" series often focuses on light to medium-duty applications, so the common tank capacities are typically in the smaller to mid-range:
Dongfeng Captain D Cummins Engine Vacuum Sewing Sewage Tanker Fecal Suction Truck Application :
About Chengli Special Automobile Co., Ltd
Chengli Special Automobile Co., Ltd. is a major Chinese manufacturer specializing in the research, development, production, and sales of a vast range of special-purpose vehicles. It is the core enterprise of the larger CLW Group, which is consistently ranked among China's Top 500 Private Enterprises.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Overseas Market Chengli Special Automobile Co., Ltd
Diverse Product Portfolio: They export a variety of vehicles to meet specific regional needs, such as:
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
