| Brand Name: | ISUZU Giga |
| Model Number: | CLW |
| MOQ: | 1 unit |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

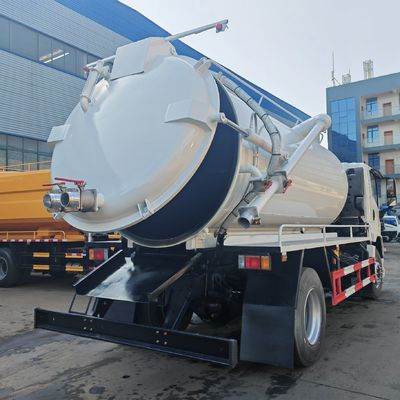

ISUZU 15,000L Vacuum Sewage Suction Truck is a heavy-duty commercial vehicle designed for the efficient collection, transportation, and discharge of liquid and semi-liquid waste, making it suitable for industrial sludge, septic waste, and general sewage.

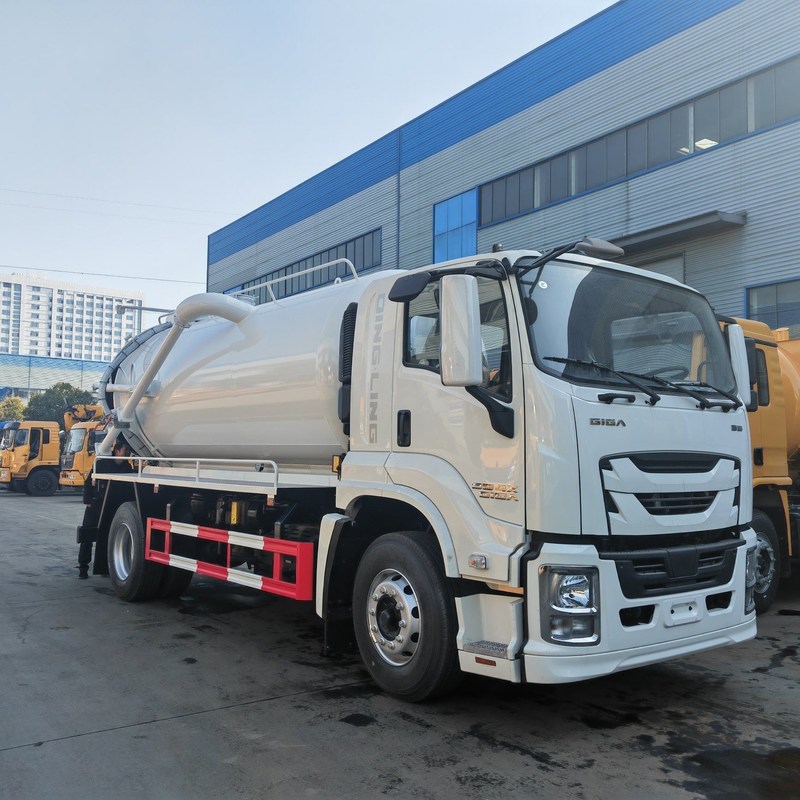

ISUZU Giga Washing Fecal Suction Vacuum Sewage Tanker Truck is a robust, multi-functional vehicle designed for municipal and industrial sewage treatment, septic tank cleaning, and waste management. This truck integrates powerful suction and jetting capabilities to clean and remove waste from sewers, septic tanks, and other drainage systems. The ISUZU Giga series is well-known for its reliability, fuel efficiency, and durability, making it an excellent choice for high-capacity waste management operations.
ISUZU Sewage Suction Truck 15000L Vacuum Sewage Tanker Truck for Industrial Waste can vary significantly depending on the exact ISUZU chassis model (e.g., FTR, FVR, GIGA), the specific manufacturer of the upper body/tank, and regional emission standards (e.g., Euro V, Euro VI).
| Item | Typical Parameter |
|---|---|
| Vehicle Type | Sewage Suction Truck, Vacuum Tanker |
| Chassis Brand | ISUZU (Often FVR, GIGA, or equivalent heavy-duty chassis) |
| Drive Type | 4×2 (Commonly) or 6×4 (for heavy duty) |
| Overall Dimensions (L×W×H) | ≈ 8,000 mm × 2,500 mm × 3,600 mm |
| Gross Vehicle Weight (GVW) | ≈ 18,000 kg (Varies significantly by exact model/chassis) |
| Curb Weight | ≈ 8,000 kg – 10,000 kg |
| Max Speed | ≈ 90 - 105 km/h |
| Cabin Capacity | 2 or 3 persons (often with A/C) |
| Transmission | Manual (e.g., 6, 8, or 9 speeds) |
| Item | Typical Parameter |
| Engine Brand/Model | ISUZU (e.g., 6HK1-TCG61, 4HK1-TCG50) |
| Engine Horsepower | ≈ 205 HP to 240 HP (or higher for GIGA models) |
| Fuel Type | Diesel |
| Emission Standard | Euro V or Euro VI (depending on market) |
| Wheelbase | Varies (e.g., 4,500 mm to 5,600 mm) |
| Tire Specification | Heavy-duty radial tires (e.g., 10.00R20 or 295/80R22.5) |
| Item | Typical Parameter |
| Tank Capacity | 15,000 Liters (15 CBM) |
| Tank Material | High-Quality Carbon Steel (e.g., Q235, typically 6mm thickness) |
| Tank Shape | Cylindrical |
| Vacuum Pump | High-Efficiency Pump (e.g., Chinese top brand, or imported Italian/European brands like Jurop, Moro, or BP) |
| Max Vacuum Rate | Up to ≈ 93% |
| Max Suction Depth (Vertical) | ≈ 6 to 8 meters |
| Suction Time | ≈ 5-10 minutes (for full tank, varies by pump) |
| Discharge System | Hydraulic Tipping (Tank lifts to ≈40∘−45∘) and Hydraulic Rear Door Opening for complete, fast discharge of sludge/solids. |
| Safety Features | Anti-overflow system with shut-off valve/alarm to protect the vacuum pump. |
| Standard Accessories | Suction hose (≈ 7-8 meters), sight glass/level window, clean water tank (for hand washing/pump cooling). |
| Industrial Waste Capability | Tank material may have anti-corrosion epoxy resin coating inside for handling chemical or corrosive industrial sewage/sludge (often an optional feature). |
| Technical date | |||
| General | Descriptions | Specifications and types | |
| Truck Brand | CLW BRAND | ||
| Chassis Brand | Giga | ||
| Approx. Dimension | 10150*2550*3800(mm) | ||
| GVW./Curb Wt. | 25000(Kg)/ 17435Kg | ||
| Cab | Cab Capacity | 2 persons' seat | |
| Air Conditioner | Air Conditioner | ||
| Chassis | Drive Type | 6*4,Left hand drive | |
| Fuel Type | Diesel | ||
| Engine Make & Model | ISUZU | ||
| Model | 6WG1-TCC | ||
| Power | 300hp | ||
| Emission Standard | EURO 6 | ||
| Brake | Air Brake | ||
| Wheelbase/No.of axle | 4359+1350mm / 3 | ||
| Tyre Specfication | 295R20 | ||
| Tyre Number | 10 tyres and 1 spare tyre | ||
| Max Speed | 90 km/h | ||
| Paint | Automative metallic paint | ||
| Tank | Capacity | Vacuum Tanker:20CBM | |
| Material | Carbon Steel | ||
| Thickness | 8mm | ||
| Vacuum Pump | Brand | morop | |
| Produce country | Italy | ||
| Model | 110 | ||
| Flow | 984M3/H | ||
| Vacuum Pipe | Length | 8m | |
| Jetting pump | Brand | Pinfu | |
| Flow | 330L | ||
| High Presssure | 18Mpa | ||
| Reel | Rotation | 180 degree | |
| Control system | Hydraulic | ||
| Type | Wash system | ||
| Length | 60meter | ||
| Nozzle | 10pcs | ||
| The interior of the sewage tank is covered with stainless steel plates, the bottom of the anti-corrosion tank is convenient for unloading, and there is a ladder inside the tank | |||
| Double roof design of the left and right oil cylinders of the tank (with buffer support rods), the lifting and lowering of the tank is more reliable, and the vehicle stability is strong | |||
| The water inlet of the water tank is a ball valve type fire hydrant (convenient to switch and durable), with a fire protection interface, with a thick liquid level tube, and with a pagoda type hand washing method valve | |||
| With water and sewage intercommunication function (DN100 bold connecting pipe) | |||
| An anti-overflow valve is installed on the top of the sewage irrigation, and a three-jaw tank mouth is installed on the bottom of the sewage irrigation (easy to clear the tank) | |||
| Both sides are tiled with patterned plate pipe platform, galvanized protective net, patterned anti-slip guardrail, beautiful and durable | |||
| There is a ladder on the side of the tank, and a checkered plate flat belt on the top of the tank, with guardrails | |||
| The operating system is neatly arranged in the operation box, and there are operating instructions and precautions (to prevent misuse) | |||
| Both the high-pressure three-way valve and the sewage suction four-way valve are equipped with shock-resistant pressure gauges with a diameter of 100 mm, which can resist the vibration of the working environment and reduce the pulsation of the medium pressure, and accurately display the actual pressure | |||
| Standard configuration is a tool box, a 100 sewage suction port, 2 100 sewage discharge ports, a 150 sewage discharge port (with ball valve booster rod) and a 600 sewage discharge port at the end (hydraulic opening, with locking device) | |||
| Feature | Details | Industrial Relevance |
|---|---|---|
| Tank Capacity | 15,000 Liters (15 CBM) | High capacity for industrial sites generating large volumes of waste. |
| Tank Material | High-strength Carbon Steel (e.g., Q235, typically 6-8mm thickness). | Provides durability and structural integrity to handle heavy sludge and negative pressure. |
| Industrial Coating (Optional) | Epoxy Resin Anti-Corrosion Treatment inside the tank. | Essential for industrial waste (chemical sludge, acidic/alkaline liquids) to prevent tank corrosion and prolong service life. |
| Tank Dumping | Full Hydraulic Tipping (lifts the tank to 40∘−45∘). | Allows for complete gravity-assisted discharge of thick sludge, solid debris, and caked industrial waste. |
| Rear Door | Hydraulic Full-Opening Tailgate with heavy-duty locking clamps. | Enables quick, complete, and leak-proof discharge of solid-mixed industrial waste, including small stones or bricks. |
| Internal Structure | Anti-surge/wave breakers (baffles) inside the tank. | Enhances vehicle stability and safety, especially when transporting partial loads of liquid industrial waste. |
| Feature | Details | Industrial Relevance |
| Vacuum Pump | High-efficiency pump, often a Water Ring Pump (e.g., SK-12) or a leading European brand (e.g., Italy's Jurop, Moro, or BP). | European pumps are typically chosen for their superior performance, higher vacuum rates, and continuous duty cycles required for heavy industrial suction. |
| Vacuum Performance | High suction power; Maximum vacuum rate generally >90%. | Ensures rapid and deep extraction of dense sludges, oil residue, and industrial liquids from pits, sumps, and trenches. |
| Suction Depth/Distance | Vertical suction depth up to ≈ 7-9 meters; Horizontal distance often over 50 meters. | Reaches waste in deep pits, underground tanks, or distant locations within a large factory or site. |
| Separators | Equipped with Oil-Gas Separator and Water-Gas Separator. | Protects the vacuum pump by separating solids and liquids from the air stream, ensuring clean exhaust and reducing pump wear. |
| Safety System | Anti-Overflow Alarm/Valve: Automatically shuts off or sounds an alarm when the tank is full. | Crucial safety mechanism to prevent corrosive industrial waste/sewage from entering and damaging the expensive vacuum pump. |
| Feature | Details | Industrial Relevance |
| Chassis | ISUZU Heavy-Duty (e.g., FVR, GIGA). | Provides the necessary payload capacity and robust frame to support the 15,000L tank capacity and the weight of dense industrial sludge. |
| Engine | ISUZU Diesel Engine (≈ 205 HP to 240 HP or more). | High torque and horsepower are necessary to drive both the vehicle and the powerful vacuum system via the PTO (Power Take-Off). |
| Drive System | PTO (Power Take-Off) System. | Efficiently transfers power from the truck's engine/transmission to operate the vacuum pump and hydraulic system. |
| Durability | Heavy-duty axles and chassis components. | Engineered for continuous operation and navigating rough or demanding industrial sites. |
| Feature | Details | Industrial Relevance |
| Combined Function (Optional) | Integrated High-Pressure Water Jetting System (Combi-Truck). | Allows the truck to perform both vacuum suction and high-pressure cleaning (e.g., cleaning industrial pipes, drains, and equipment), making it multifunctional. |
| Control | Pneumatic/Hydraulic controls, often with a panel in the cab or on the side of the truck. | Allows the operator to manage the suction/discharge cycle, rear door lock, and tank lift safely and efficiently. |
| Hose Management | Durable suction hose (often ≈ 7-8m, high quality) with quick-connect fittings. | Facilitates rapid deployment and connection/disconnection at the industrial collection point. |
The ISUZU 15000L Vacuum Sewage Tanker Truck for Industrial Waste is a heavy-duty specialized vehicle built on a robust ISUZU chassis (commonly FVR, GIGA, or similar medium to heavy-duty platforms). Its design focuses on high-capacity suction, secure containment, and efficient discharge, with specific features tailored for demanding industrial environments.
Location: Headquartered in Suizhou City, Hubei Province, China, often referred to as the "Capital of China's Special Purpose Vehicles."
Establishment: The company's predecessor was established in September 2004.
Scope: It is a large-scale vehicle manufacturing enterprise designated by the China Ministry of Industry and Information Technology. The group is a diversified entity integrating R&D, manufacturing, sales, finance, and other related businesses. It is recognized as a China Top 500 Private Enterprise.
Product Range (CLW Brand): Chengli manufactures a wide variety of over 800 types of special vehicles, including:
Certifications and Recognition: The company holds numerous quality and management certifications, including:
Market: The company's vehicles are sold throughout China and exported to numerous countries and regions across South America, Southeast Asia, the Middle East, Africa, and more.
Partnerships: Chengli maintains cooperative relationships with major Chinese truck chassis manufacturers such as Dongfeng, FAW, SINOTRUK, FOTON, JAC, JMC, and others.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Africa: A very strong market, with exports to countries like Nigeria, Ghana, Mali, Senegal, Algeria, Congo, Sudan, Ethiopia, Tanzania, Zambia, and South Africa.
Southeast Asia: Including the Philippines, Malaysia, Vietnam, Myanmar, Thailand, Cambodia, and Laos.
Central Asia/Russia: Countries like Russia, Kazakhstan, Uzbekistan, and Mongolia.
South America: Including Venezuela, Chile, and Bolivia.
Middle East: A consistent market for their specialized vehicles.
Oceania: Countries like Australia and New Zealand.
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
