Isuzu 4X2 4X4 Square Cabin Patient Pickup Cabin Patient Delivery Emerency Rescue Ambulance
Chassis: Typically based on a reliable Isuzu pickup platform, such as the Isuzu D-Max or an NPR series truck.
Drive Type: Available in both 4x2 (Two-Wheel Drive) and 4x4 (Four-Wheel Drive) configurations. The 4x4 option is specifically designed for off-road or challenging terrain (rural roads, steep inclines) to ensure quicker access in all conditions.
Cabin Type: The description "Square Cabin" refers to the box-type patient compartment that replaces the standard pickup bed. This design allows for maximum internal space, a clean, hygienic environment, and typically meets standards like AIS-125 Type C for Basic Life Support (BLS) or similar international standards.
Engine: Often powered by a robust Isuzu diesel engine, such as the 1.9L RZ4E VGS Turbo intercooled engine, offering a good balance of power, torque, and fuel efficiency critical for emergency response.
Construction: Often made with Glass Reinforced Plastic (GRP) body panels, which are PUF-insulated, hygienic, rust-free, and anti-bacterial for easy cleaning and temperature control.
Patient Transfer: Includes an automatic loading stretcher or stretcher-cum-trolley and a built-in ramp for easy loading and unloading. A collapsible folding stretcher is also common.
Medical Equipment (Basic Life Support - BLS):
Oxygen Supply: Fixed and/or portable oxygen cylinders with an oxygen supply system.
Lighting: LED interior lights, infusion spotlights, and mandatory external warning lights, flashers, and siren/PA system.
Cabin Setup: Medical cabinets for storage, a long seat for attendants, single work seats for paramedics, and a partition with a sliding observation window to the driver's cabin.
Power: Inverter (e.g., 1000W) for operating medical equipment, with multiple 12V and 220V power sockets, and an additional battery/charger system.
Hygiene: UV disinfection lamp (and sometimes an Ozone generator) and a medical wear-resistant, anti-skid floor.
All-Terrain Capability: High ground clearance, a rugged platform (iGRIP platform), and a tighter turning radius make it highly maneuverable in both city traffic and difficult terrain.
Active Safety: May include ABS (Anti-lock Braking System), EBD (Electronic Brakeforce Distribution), TCS (Traction Control System), ESC (Electronic Stability Control), and HDC (Hill Descent Control).
Passive Safety: Dual airbags for the driver and co-driver, 3-point seat belts, and side intrusion protection beams.
Isuzu 4X2 4X4 Square Cabin Patient Pickup Cabin Patient Delivery Emerency Rescue Ambulance Technical sheet :
| Feature | Isuzu D-Max (Pickup Base) - Example | Isuzu N-Series (NPR/ELF Truck Base) - Example |
| Engine Type | 1.9Lor 3.0LTurbo Diesel (1.9L RZ4Eor 3.0L ) | 5.2LTurbo Diesel (4HK1-TCG) |
| Max Power | 110kW(150PS) or 140kW(190PS) (varies) | Up to 139kW(190HP) (varies by emissions) |
| Max Torque | 350Nmto 450Nm(varies) | 507Nmto 513Nm(varies) |
| Drive Type | 4*2 (Rear Wheel Drive) and 4*4 (Selectable or Full-Time) | 4*2 (Rear Wheel Drive) and 4*4 (Selectable) |
| Transmission | 6-Speed Manual or Automatic | 6-Speed Manual (MLD-6Q or similar) |
| GVW (Gross Vehicle Weight) | 3,100 kg(Before conversion) | 10,000 kg(NPR 4*4 example) |
| Brakes | Ventilated Disc (Front), Drum or Disc (Rear) with ABS & EBD | Disc (Front & Rear) or Drum/Disc (N-Series) with ABS (Air Brakes on heavier models) |
| Feature | Description |
| Patient Cabin Dimensions | Highly Variable: Depending on the base chassis, length can range from 2.3 m(D-Max pickup bed conversion) to over 3.0 m(N-Series truck body). |
| Insulation & Finish | PUF Insulated walls/roof, seamless, antibacterial, rust-free, and easy-to-clean interior surfaces. |
| Entry/Exit | Large rear door and/or side door for stretcher access. Low entry step for personnel. |
| Seating | Bench seat (often with storage underneath), Attendant/Paramedic seat (facing patient), Driver (1) + Co-Driver (1) + Cabin Seats (varies). |
| Stretcher System | Automatic Loading Stretcher (Main), Folding Stretcher/Spine Board, Stretcher fixing device. |
| Oxygen System | Onboard O2 cylinders (e.g., 2 * 10 L), concealed piping, pressure regulators, and O2 outlets/terminals. |
| Power & Lighting | Inverter (e.g., 1000 W), Additional Battery with charging system, multiple 12Vand 220Vsockets, LED lighting, and infusion spotlights. |
| Climate Control | Separate Air Conditioning and Heating System for the Patient Cabin. |
| Emergency Systems | Long-row LED Warning Light Bar and sirens, PA system, two-way intercom between driver and patient cabins. |
| Storage | Integrated medical cabinets, sharps disposal, and storage for equipment like a Trauma Kit, AED, etc. |

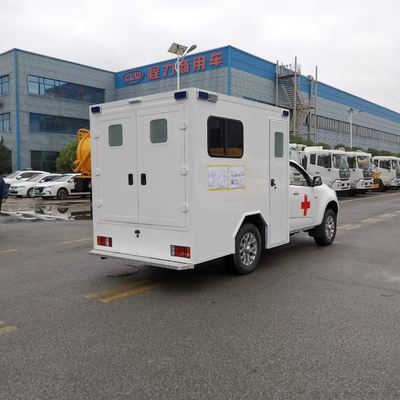

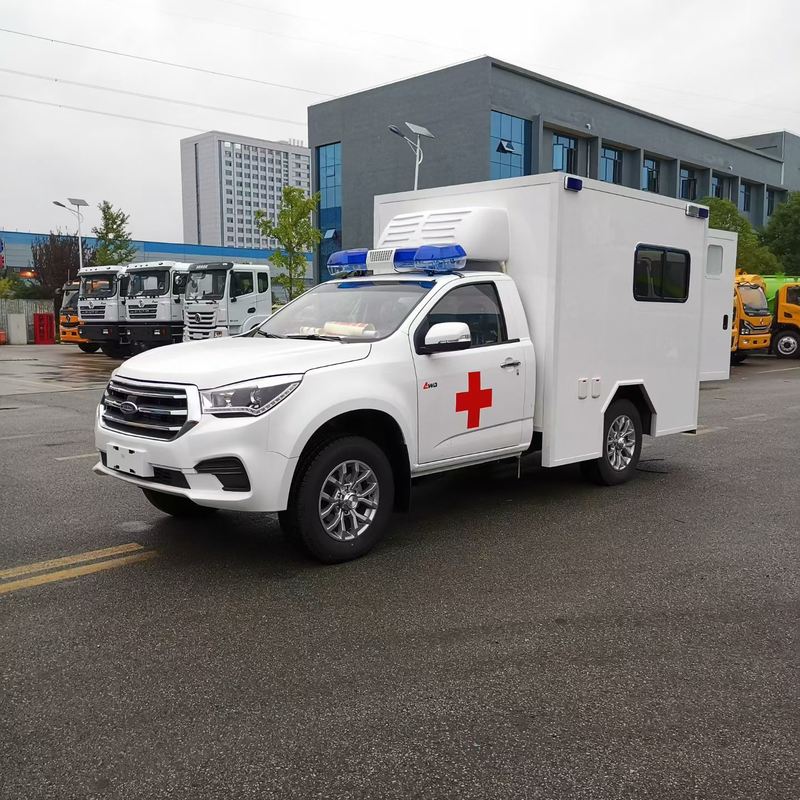

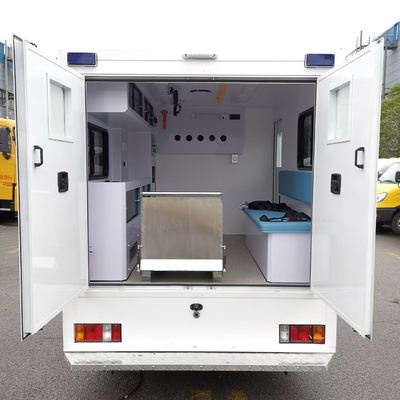

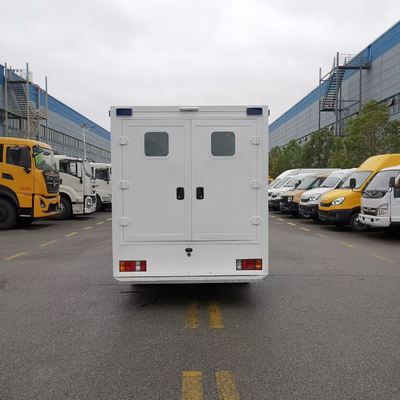

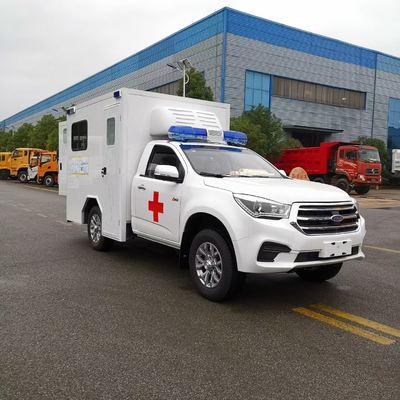

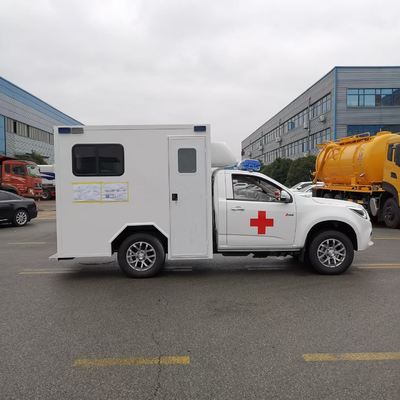

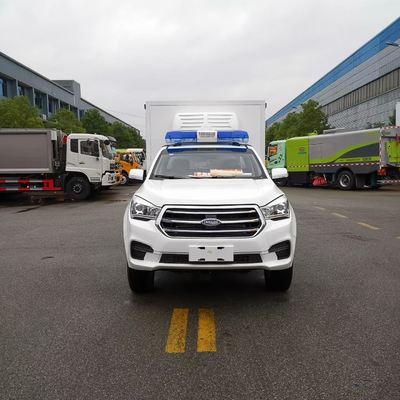

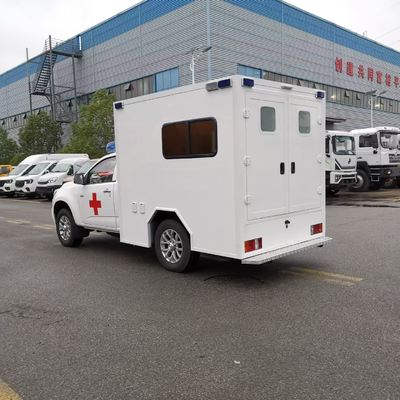

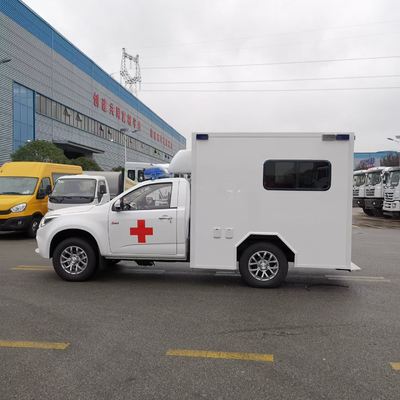

Isuzu 4X2 4X4 Square Cabin Patient Pickup Cabin Patient Delivery Emerency Rescue Ambulance Picture :
About Chengli Special Automobile Co., Ltd
Location (Headquarters): Suizhou City, Hubei Province, China. Suizhou is often referred to as the "Capital of China's Special Purpose Vehicles."
Establishment: Founded in September 2004 (Chengli Special Automobile Co., Ltd.).
Scale: It is a major industrial player, often ranked among China's Top 500 Private Enterprises, with a large industrial park, significant assets, and a workforce of thousands.
Certifications: The company holds numerous quality and management certifications, including ISO 9001, ISO 14001, 3C (China Compulsory Certification), and often military standard certifications (GJB9001).
Brand: Its registered trademark is "CHENGLIWEI" with the product code "CLW."
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Overseas Market Chengli Special Automobile Co., Ltd
Extensive Export Network: Chengli's products have been exported to more than 80 countries and regions worldwide.
Key Regions: Their primary international markets are concentrated in:
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
