| Brand Name: | FAW |
| Model Number: | CLW5160GXWCHA |
| MOQ: | 1 unit |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

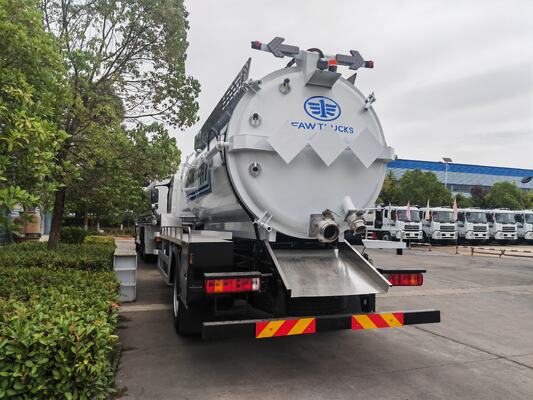

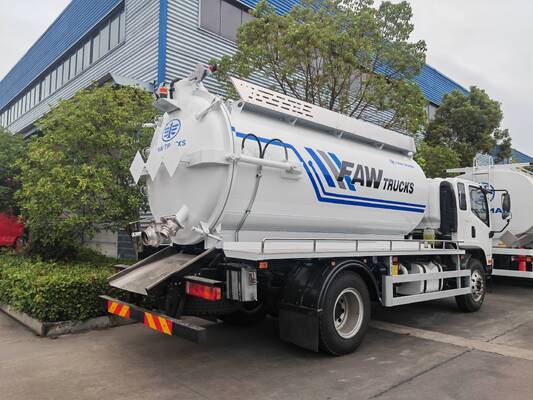

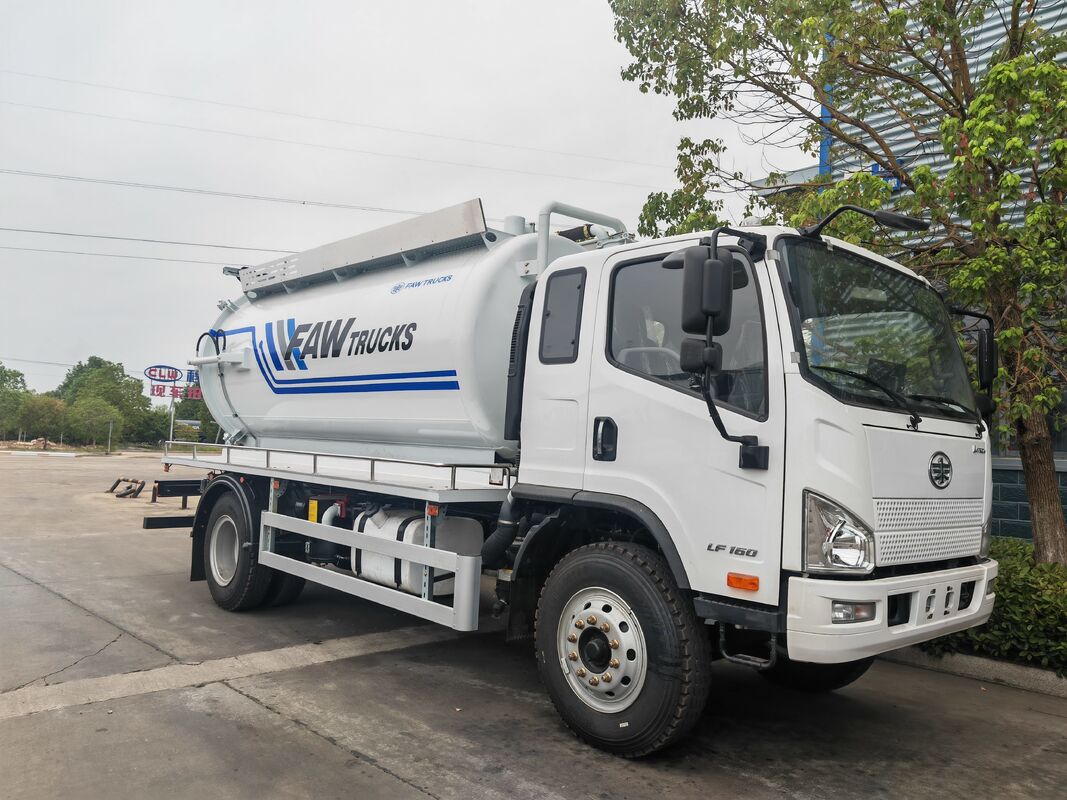

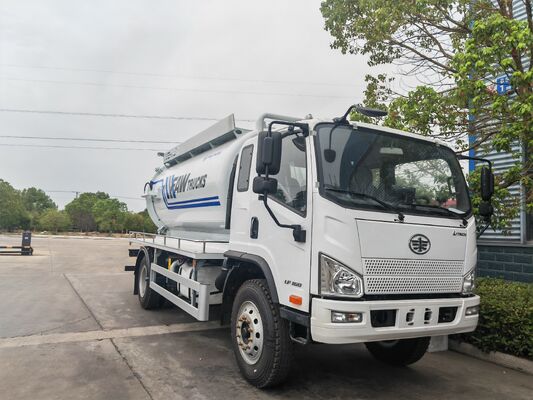

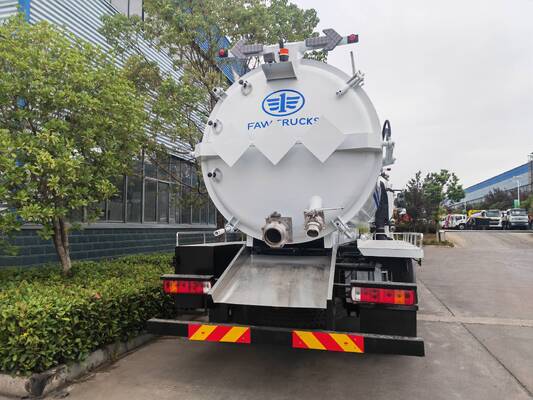

The FAW Vacuum Sewage Suction Truck (also widely known as a Septic Tanker Truck, Cesspool Emptier, or Vacuum Sludge Tanker) is specially designed for the efficient collection, suction, and transportation of sewage, fecal sludge, wastewater, and liquid waste from septic tanks, cesspools, drains, and gullies.
Built on the highly durable FAW LF160 chassis, this heavy-duty vacuum tanker is equipped with a high-performance vacuum pump, strong suction power, and a fully sealed discharge system, making it an ideal choice for municipal sanitation, industrial waste management, and commercial septic service providers worldwide.
1. Overall Vehicle Parameters
| Parameter | Specification |
| Vehicle Type | Vacuum Sewage Suction Truck / Septic Tanker |
| Chassis Brand | FAW (First Automotive Works) |
| Chassis Model | LF 160 |
| Drive Type | 4x2 (Left-Hand Drive / Right-Hand Drive optional) |
| Overall Dimensions (L x W x H) | Approx. 6,800 × 2,300 × 2,850 mm (customizable) |
| Gross Vehicle Weight (GVW) | Approx. 10,000 - 12,000 kg |
| Wheelbase | 3,800 mm / 3,900 mm |
| Max Speed | 90 - 100 km/h |
2. Engine & Performance
| Parameter | Specification |
| Engine Brand | FAWDE (FAW Dachai) / Weichai |
| Engine Power | 160 HP (118 kW) |
| Displacement | 3.8L - 4.1L |
| Emission Standard | Euro 2 / Euro 3 / Euro 4 / Euro 5 / Euro 6 (Optional) |
| Fuel Type | Diesel |
| Transmission | Manual, 6-speed forward & 1-speed reverse |
| Brake System | Air brake with ABS |
| Tires | 8.25R16 / 9.00R20 (Steel radial tires, 6+1 spare) |
3. Vacuum Tanker & Suction System
| Component / Feature | Details |
| Tank Volume | 5,000 - 6,000 Liters/ 1,320 - 1,585 US Gallons |
| Tank Material | High-strength carbon steel Q235B (Thickness: 5mm) |
| Tank Structure | Cylindrical shape, reinforced internal anti-surge baffles |
| Vacuum Pump Brand | High-power Vane Vacuum Pump (Jurop / Battioni / Chinese top brand) |
| Vacuum Pressure | -0.085 MPa - -0.09 MPa |
| Suction Depth | 7 meters |
| Suction Time | 5 minutes (for full tank capacity) |
| Discharge Method | Gravity discharge & Pressure discharge via vacuum pump |
| Suction Hose | 1 unit, 6-8 meters rubber suction hose with quick couplings |
