Road Sweeper TruckYou are here：HOME >> Products >> Road Sweeper Tr...

Our company is a professional ROAD SWEEPER TRUCK manufacturer in China since 2004

Quality 100% guaranteed. ALL our trucks have got ISO 9001-2008, CCC and B&V certificates.

Many trucks have passed SGS inspection. Chassis and spare parts always come from the original

manufacturers with their products codes and anti-counterfeiting labels.All our suppliers have passed

the B&V,SGS and CONTECNA qualification.

Description Get quotation

Our company is a professional ROAD SWEEPER TRUCK manufacturer for 10 years

1.Stainless steel garbage tank,water tank

2.Maintenance free blower with high quality,and maintenance free automatic clutch

3.Hydraulic oil pump imported from Italy, long service life, stable and reliable, low failure rate

4.Hydraulic valve imported form Germany

5.The hydraulic lines using the German standard technical seal structure, good shock resistant

performance, high sealing reliability,can realize no leakage seal effect

6.The key electronic components using French Schneider technique

Our Advantages:

Quality 100% guaranteed. ALL our trucks have got ISO 9001-2008, CCC and B&V certificates.Many trucks have passed SGS inspection. Chassis and spare parts always come from the original manufacturers with their products codes and anti-counterfeiting labels.All our suppliers have passed the B&V,SGS and CONTECNA qualification.Experienced. We have 11years truck wholesaler experience. Our performance has won national hhas won national affirmation. Price reasonable. Our company has extensive resources so we are sure to offer competitive price for you. Reliable supplyer. We sell

trucks throughout the country and export to Vietnam, Korea, Laos, myanmar,Malaysia, Congo, Ethiopia, Sudan, el Salvador, Iraq, New Zealand, Russia, Mongolia,kazakhstan, Sudan etc more than 50 countries and regions all over the world.

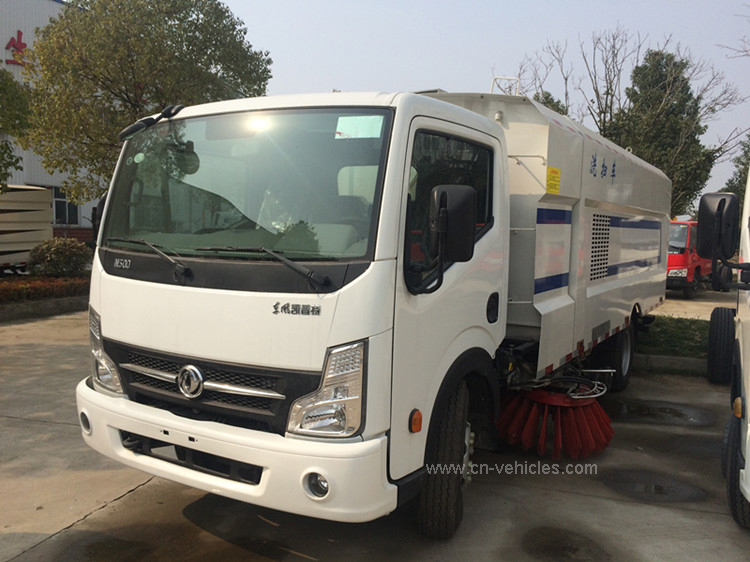

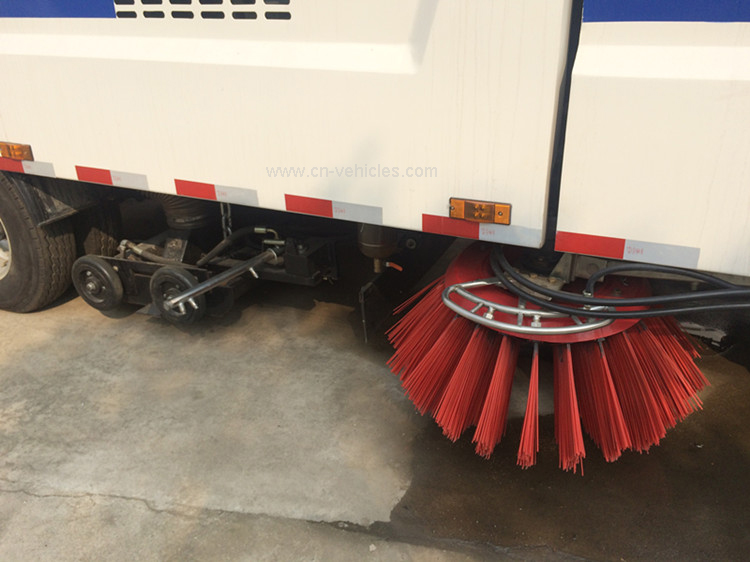

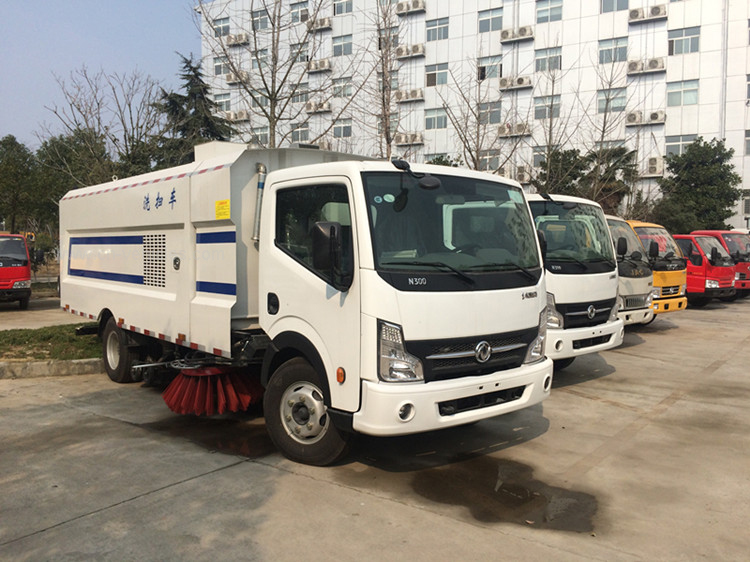

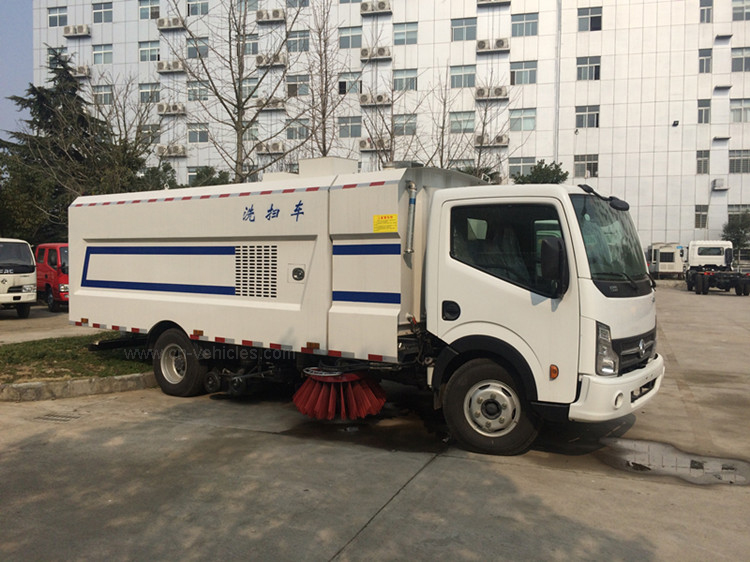

Product Name	Dongfeng Captain street cleaning vehicle
Product Model	Dongfeng
Main parameters	Overall size(LWH)	651822502520mm
	Gross weight	8200kgs
	Rated capacity	2445kgs
	Curb weight	5560kgs
	Approaching/Departure Angle	22/18(°)
	Front/Rear suspension	1068/1650mm
	Axle loading	3280/4920
	Max.speed	115km/h
Chassis	Chassis Brand	Dongfeng
	Chassis model	EQ1080SJ9BDE
	Drive type	4*2, LHD/RHD
	Fuel Type	Diesel
	Tire Specification	7.50-16LT 14PR,7.50R16LT 14PR
	Tire No.	6
	Wheelbase	3800mm
	Alex No.	2
	Leaf Spring No.	6/6+5
	Front trend	1569mm
	Rear trend	1530mm
	Passengers in cab	2
Engine	Manufacturer	Dongfeng Light Engine
	Model	ZD30D13-4N
	Horse Power	130HP
	Displacement/Power	2953ml/96kw
	Emission standard	Euro 4
Item		Parameters
Auxiliary engine model		JX493G
Auxiliary engine power		57kw/77.5hp
Maximum speed		≥95km/h
Cleaning width		≥2.8-3 m
Water tank volume		1.5m3
Garbage box volume		4m3
Operating speed		3~15km/h
Maximum operation ability		4500m2/h
Maximum suction size		100mm
Cleaning efficiency		≥99%
