| Brand Name: | FAW |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |
FAW Jiefang Automobile Co., Ltd. (FAW Trucks): This is one of China's largest and oldest commercial vehicle manufacturers. They produce the original truck chassis, including the engine, cab (e.g., FAW J6L or similar), chassis frame, gearbox, and axles

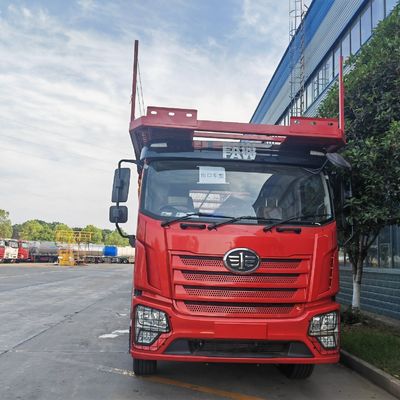

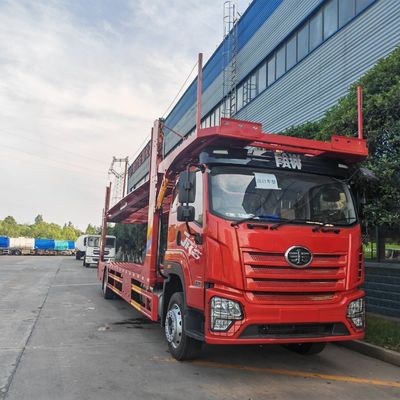

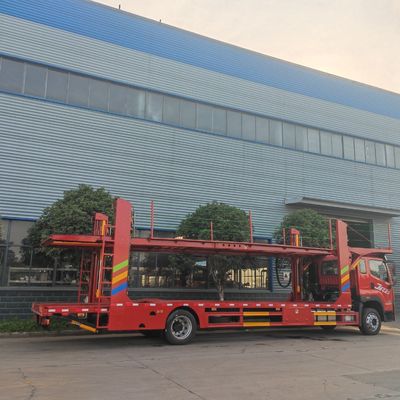

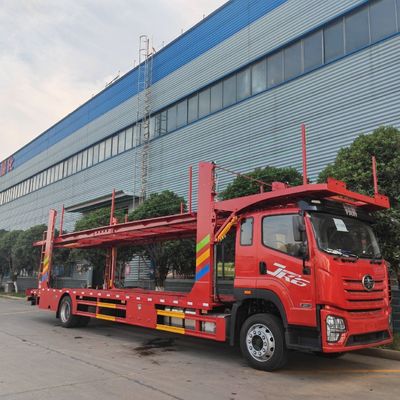

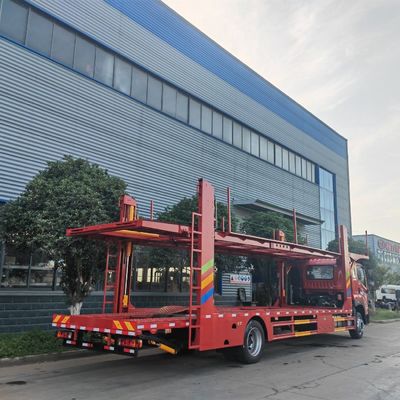

FAW 5 Set Car Carrier Transport Platform Auto Hauling Truck," is a special-purpose vehicle built on a chassis supplied by FAW (First Automobile Works) Jiefang Automobile Co., Ltd. and typically manufactured by a specialized Chinese truck modification company.
Car carrier truck is also named by vehicle transport truck, car carrier, car transport truck, vehicle transport truck, etc. It
is mainly used for cars or small vehicles transportation.
| Item | Specification / Value | Notes |
|---|---|---|
| Truck Name | Car Transport Truck / Auto Hauling Truck | |
| Drive Type | 4 *2 (Standard) | Other configurations (6 *2 or semi-trailer) are available. |
| Carrying Capacity | 5 Sets of Standard Passenger Cars | Capacity depends on the size of the cars being loaded. |
| Gross Vehicle Weight (GVW) | Up to 21,500 kg | Varies significantly by chassis and regulation. |
| Curb Weight | Up to 12,800 kg | Weight of the truck ready for operation, without cargo. |
| Overall Dimensions | 11,900 *2,550 *3,950 mm (L x W x H) | Length is crucial for regulatory compliance. |
| Max. Driving Speed | 90 km/h | |
| Item | Specification / Value | Notes |
| Chassis Brand | FAW (First Automobile Works) | FAW Jiefang Automobile Co., Ltd. |
| Cab Type | FAW J6L / FAW J7 or Similar | Single row, with A/C and sleeper (optional on some models). |
| Engine Model | CA6DK1-32E5 (Common Example) | FAW's in-house or co-developed engine. |
| Engine Type | 6-Cylinders in line, Water Cooling, Turbo-Charged, Inter-Cooling Diesel | |
| Rated Power | 239 kW / 325 HP | Power rating can range from 220 HP to 350 HP. |
| Displacement | 7,146 ml | |
| Emission Standard | Euro V (or higher: Euro VI) | Varies based on the export destination country's regulations. |
| Gearbox | Manual, FAST 8JS85TC | 8 Forward Speeds, 1 Reverse. |
| Wheelbase | Varies, 1950 + 4850 mm (for 3-axle option) | |
| Tire Specification | 295 / 60 R 22.5 Tubeless Tire (or 10.00 R 20) | |
| Brake System | Air Brake, Dual Circuit with ABS (Anti-lock Braking System) | |
| Fuel Tank Capacity | 300 L (Aluminum Alloy or Steel) | |
| Item | Specification / Value | Notes |
| Construction Material | Low Alloy High Strength Structural Steel | Provides necessary rigidity and reduced weight. |
| Deck Configuration | Double-Deck (Upper and Lower) | Allows for maximum car capacity. |

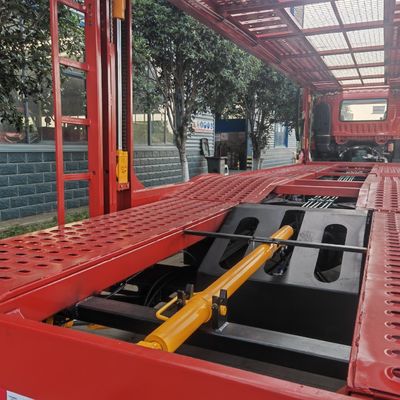

| Operation Type | Hydraulic Lifting and Tilting | Uses hydraulic cylinders and valves for platform movement. |
| Hydraulic System | Often features an Imported Brand | Ensures stable and reliable lifting performance. |
| Hydraulic Cylinders | Total 10 units (Typical) | Used for lifting, tilting, and operating the tail ramp/ladder. |
| Upper Platform Length | 12,000 mm | Total operable length. |
| Loading Ramp | Hydraulic Telescopic Folding Ladder/Ramp | For self-loading and unloading of vehicles. |
| Safety Features | Vehicle Tie-down points (chutes), Safety Straps/Bind Belts, Hydraulic Locking Pins. | |
Double Deck 6 Cars Carrier Hauler Truck
Upper platform: length 13-14 m.
Lower platform: length 10 m.
It can carry 5-6 small vehicles or cars.
Engine: Weichai 220hp diesel engine
We can customize based on your needs.
Chengli Special Automobile Co., Ltd. is one of the largest and most prominent manufacturers of special-purpose vehicles in China and is the core enterprise of the larger CLW Group (Chengli Automobile Group).
The company is based in Suizhou City, Hubei Province, which is known as the "Capital of China's Special Purpose Vehicles."
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Extensive Network: Chengli's products are exported to more than 50 countries and regions worldwide.
Decades of Experience: The company has over 20 years of foreign trade experience (since its establishment in 2004).
Scale: They have delivered over 10,000 customized special vehicles to international buyers.
Growth: The company has demonstrated significant export growth, with some reports noting their exports grew by over 137%
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
