| Brand Name: | Sinotruk HOWO |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

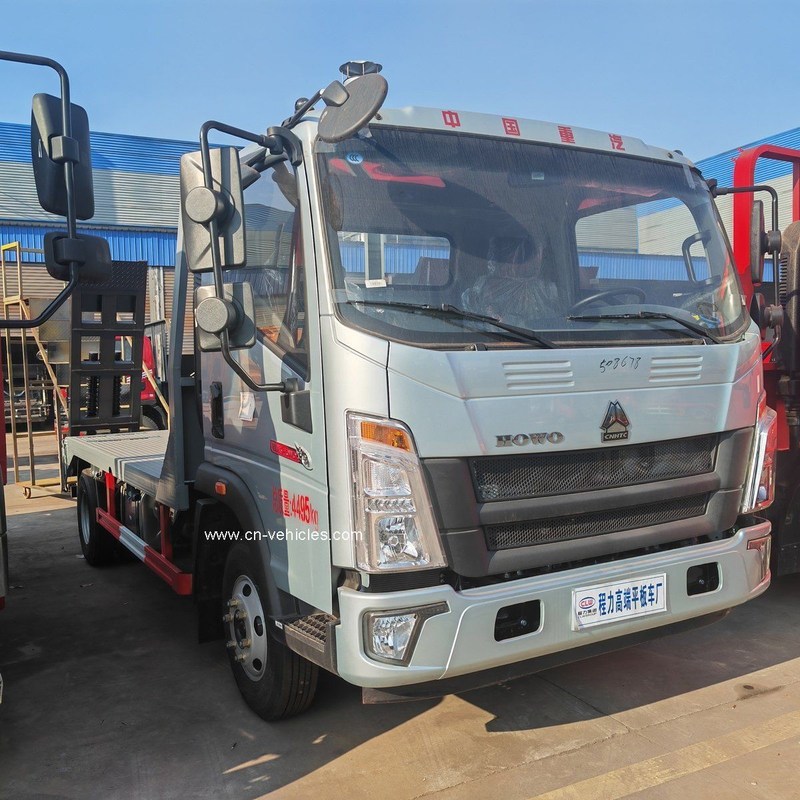

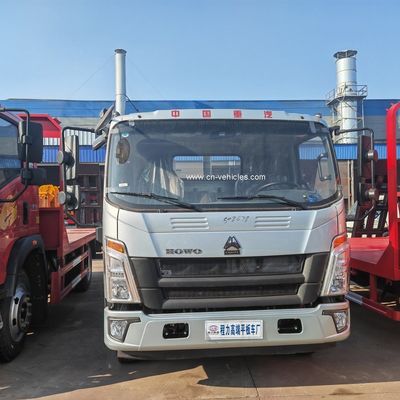

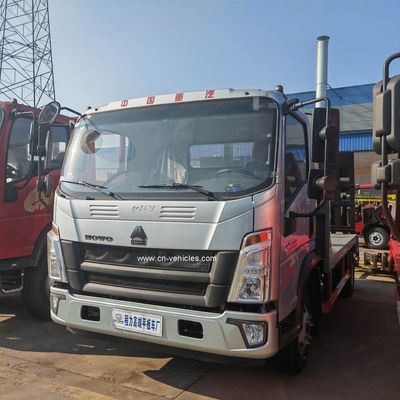

SINOTRUK HOWO 4X2 Container Carry Excavators Engineering Transport Light Flatbed Truck
| Parameter | Typical Range / Example |
| Drive Type | 4x2 (Four wheels, two driven) |
| Cab Type | Various options ( 1880 cab, single or extended cab, with/without sleeper, A/C) |
| Overall Dimensions (L x W x H) | 6900 mm x 2350 mm x 2650 mm (Can vary greatly based on deck length) |
| Wheelbase | 3360 mm, 3800 mm, or longer |
| Curb Weight | 2,400 kg to 7,880 kg (Varies significantly with chassis/load rating) |
| Rated Payload | 3,000 kg to 10,000 kg (Varies by chassis model) |
| Gross Vehicle Weight (GVW) | 8,700 kg to 18,000 kg |
| Effective Working Platform (Flatbed Size) | 4200 mm to 6400 mm in length |

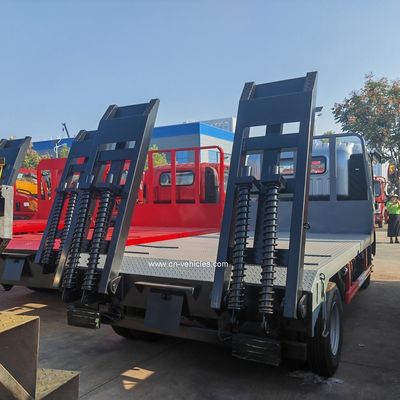

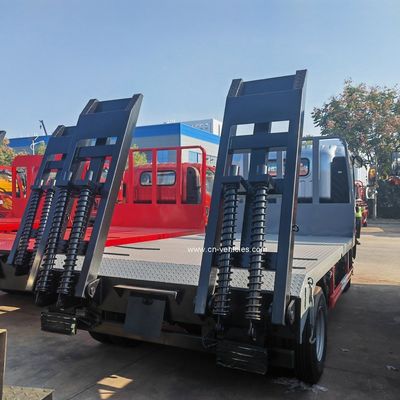

| Rear Ladder | Typically equipped with a mechanical or double-spring ramp/ladder for loading excavators. |
| Parameter | Typical Range / Example |
| Engine Brand (Common) | SINOTRUK, Weichai, Cummins (Various models available) |
| Engine Type | 4-stroke, 4/6-cylinder in-line, water-cooled, turbo-charged & inter-cooled, direct injection Diesel |
| Horse Power (HP) | Typically ranges from 110 HP to 220 HP or more, depending on the chassis/load class. |
| Emission Standard | Euro II, Euro III, Euro IV, or Euro V/VI (Market-dependent) |
| Transmission Type | Manual (Commonly 5, 6, 8, or 10 speed forward gears) |
| Max. Speed | 90 - 101 km/h |
| Fuel Tank Capacity | 120 L to 400 L |
| Parameter | Typical Range / Example |
| Front Axle Load | 2.0 T to 7.0 T |
| Rear Axle Load | 3.5 T to 13.0 T (Often a single reduction or planetary wheel reduction axle) |
| Tire Specification | 7.00R16, 7.50R16, 8.25R20, or 275/80R22.5 (Depending on load) |
| Steering | Hydraulic steering with power assistance ( ZF technology) |
| Brake System | Dual circuit compressed air brake, with spring energy parking brake and engine exhaust brake (Auxiliary brake) |
| items | Descriptions | Specifications and Types |
| General | Truck Name | Flat Truck |
| Drive Type | 4*2 | |
| Gross Vehicle Weight(kg) | 25000 | |
| Curb Weight (kg) | 12500 | |
| Overall Dimensions L*W*H(mm) | 9000*2500*2820 | |
| Engine | Engine Brand | WP10.310E40 |
| Fuel Type | Diesel | |
| Power | 228kw/310HP | |
| Emission Standard | Euro 3/4 | |
| Displacement(ml) | 9726 | |
| Engine Type | 4 cylinders in line, turbo-charged diesel engine,inter-cooling,high pressure common rail | |
| Chassis | Chassis Brand | BJ3252DLPJB-XA |
| Tire No. | 10+1 | |
| Tire Specification | 11.00R20,11.00-20 | |
| Wheelbase (mm) | 3575+1350 | |
| Axle No. | 3 | |
| Gear Box | 5 speed forward with 1 reverse, manual | |
| Brake | Air brake | |
| Steering Wheel | Left hand drive with power-assisted | |
| Stage | Stage Area(m2) | 36 to 40, three sides open |
| Operation Type | Hydraulic Operation |
