| Brand Name: | CLW |
| Model Number: | CLW |
| MOQ: | 1 unit |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

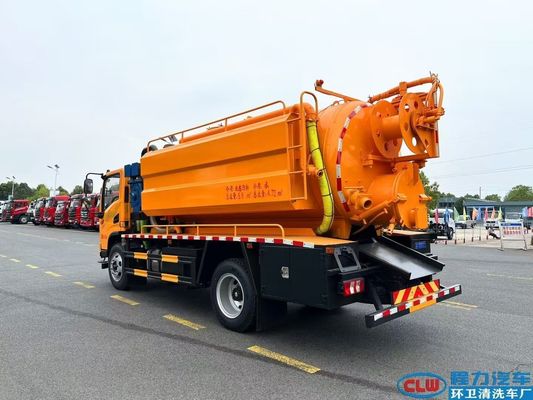

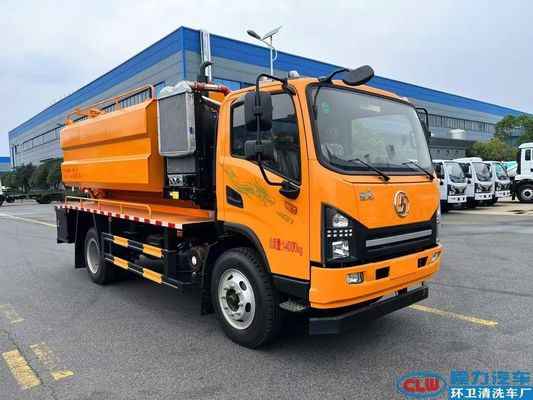

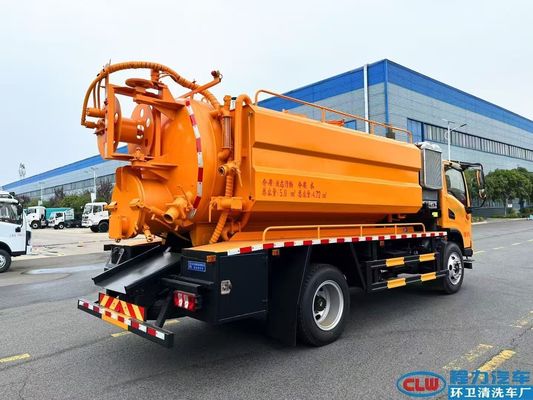

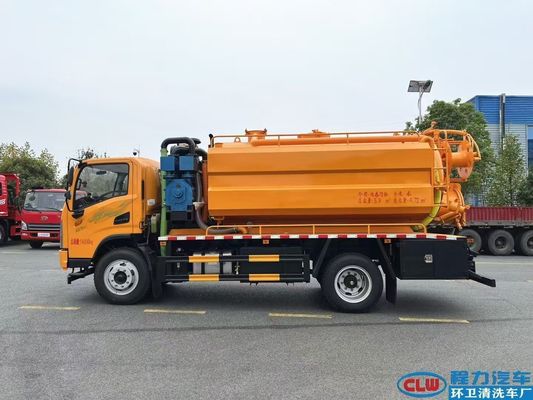

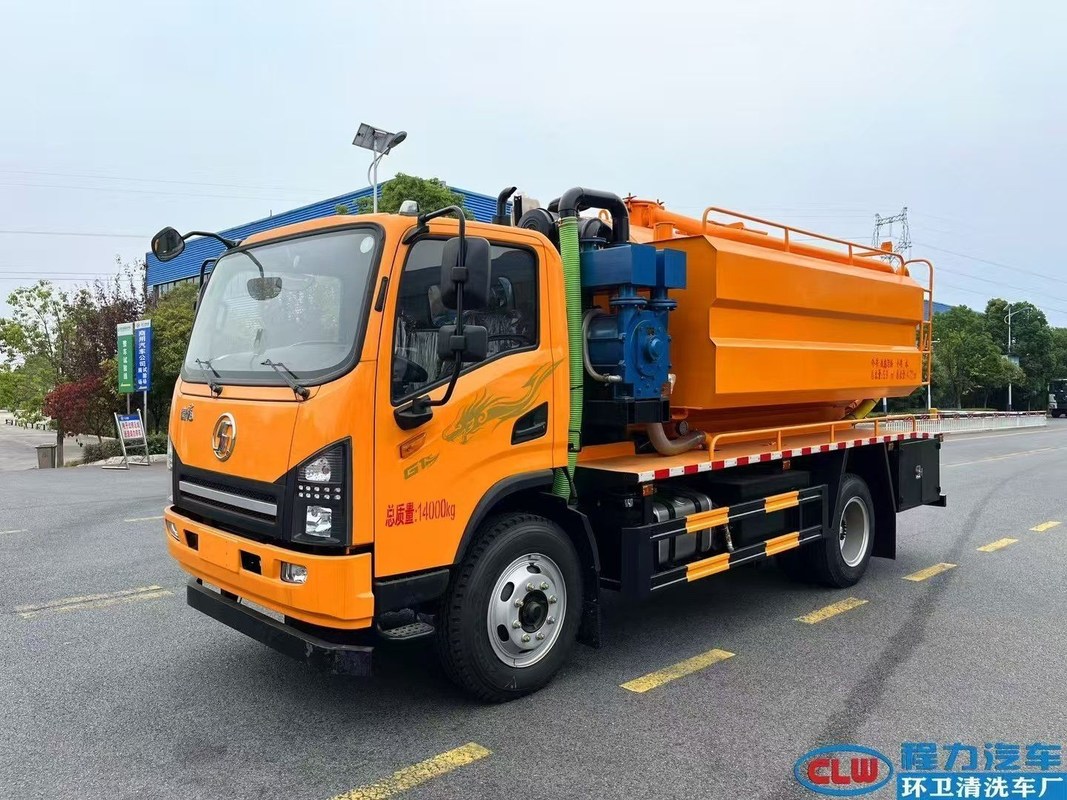

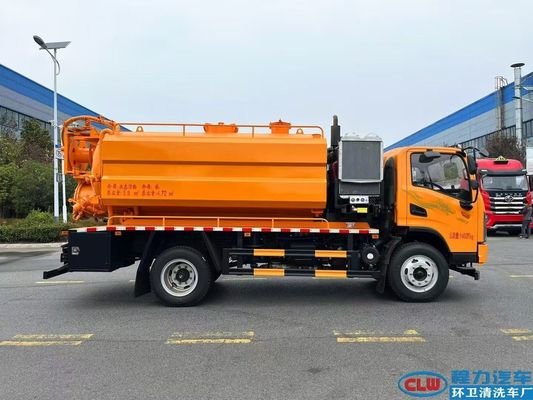

Shacman High Pressure Fecal Sewage Vacuum Suction Cleaning Truck" is a type of specialized sanitation vehicle built on a Shacman chassis. These trucks are designed for the efficient collection, transport, and discharge of liquid waste, sludge, sewage, and fecal matter, often incorporating high-pressure cleaning or jetting capabilities in some models.
Shacman High-Pressure Fecal Sewage Vacuum Suction Cleaning Truck is designed for heavy-duty waste management, sewage suction, septic tank cleaning, and high-pressure water jetting applications. These trucks are built to meet the demands of municipal waste services, industrial wastewater management, and emergency flood clean-up, making them an essential tool in the sanitation industry.
| Feature | Typical Specification Range |
|---|---|
| Chassis Brand/Series | SHACMAN (F3000, H3000, etc.) |
| Drive Type | 4*2, 6*4 (most common) |
| Engine Brand/Power | Weichai (WP series) or Cummins, 240 HP - 375 HP |
| Emission Standard | Euro II, Euro III, Euro IV, Euro V, or Euro VI (Varies by market) |
| Gearbox | FAST brand, Manual, 8 to 12 forward gears |
| Overall Dimensions (L*W*H) | Varies widely (e.g., 8500*2470*3350 mm for a 10 CBM 4*2) |
| Gross Vehicle Mass (GVM) | Varies widely (e.g., 18,000 kg for a 12 CBM 4*2 up to 25,000 kg for a 20 CBM 6*4) |
| Max. Speed | 80−90 km/h |
| Tire Specification | 10.00R20 or 12.00R20 Radial Tires |
| Feature | Typical Specification Range |
| Sewage/Sludge Tank Capacity | 8,000 Liters (8 CBM) to 25,000 Liters (25 CBM) (Higher capacities on 6*4 chassis) |
| Tank Material | High-quality Carbon Steel (e.g., Q235B or 5mm to 6mm thickness) |
| Tank Discharge | Hydraulic Tipping (typically 40∘ to 45∘) and Full-Opening Hydraulic Rear Door |
| Vacuum Pump Brand | China top brand (e.g., Weilong) or International (e.g., Italy MORO or BP) |
| Pump Type | Rotary Vane or Water Ring Vacuum Pump (Water Ring is often cited for higher efficiency) |
| Max. Suction Lift | ≥6 m to ≥8 m (Vertical) |
| Vacuum Duration (Full Tank) | ≤5 min to ≤10 min (Varies by pump model and tank size) |
| Max. Vacuum Level | ≥93% or ≥500 mmHg |
| Feature | Typical Specification Range |
| Tank Compartmentation | Sludge Tank + Clean Water Tank (e.g., 15 CBM Sludge + 4 CBM Water) |
| High-Pressure Pump Flow Rate | Varies widely, e.g., 215 L/min |
| High-Pressure Pump Working Pressure | Varies widely, e.g., 24 MPa (240 bar) |
| High-Pressure Hose | 60 m to 100 m on a hydraulic reel |
| Function | Jetting nozzles for unclogging and scouring sewer and drain pipes. |
| Truck Specification | |||
|---|---|---|---|
| truck model | CLW5253GXWT10 | ||
| Cab | SHACMN L3000 Flat-top single row cab, with power steering. Electronic flameout, A/C | ||
| Driving Type | 4x2 Left-hand driving | ||
| Max Speed (km/h) | 90 | ||
| Overall dimension(mm) | 8550*2500*3455 | ||
| GVW( kg) | 19000 | ||
| Mass in working order ( kg) | 8575 | ||
| Wheelbase(mm) | 4600 | ||
| F/R track base (mm) | 2022/1830 | ||
| F/R overhang (mm) | 1500/2380 | ||
| Approach/Departure Angel | 16/14 | ||
| Tire | 10.00R20 (10+1) | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 8-speed | ||
| Bridge | Front axle | 4.8T | |
| Rear axle | 10T | ||
| Enging | Model | WD6.210E32 | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled six-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 6700 | ||
| Max output power/rotate speed (hp /rpm ) | 210/2200 | ||
| Max torque/rotate speed(N.m/rpm) | 1050/1100~1600 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Volume of tank | 10000l | ||
| Color | Painted in the corporation's colours with logo on both front doors as specified by the client | ||
| Material of tanker | 5mm Carbon stell (Q235) | ||
| Special function | Suction height | ≥9(m) | |
| Suction time | 250(S) | ||
| Maximum Inclination Angle | ≥45° | ||
| maximum vacuum | ≥11 MPa | ||
| Lifting time | ≤45 S | ||
| the Cover opening Angle | ≥75° | ||
| The cover opening time | ≤25 S | ||
| Suction pipe | 3m length and 100 mm in diameter | ||
| Hose Racks | Fitted on both sides of tank, to accommodate a minimum of seven hoses each | ||
| Fittings | Four-way change valve fitted to pump Drain separator vacuum pump Fully opening rear door Sight glasses at top and bottom of tank Ladder: For access to top of tank complete on top of tank |
||
| vacuum pump |
pump type | SK-12 | |
| motor power (kW) | 11 | ||
| weight (Kg) | 460 | ||
| pump speed (r.p.m) | 1440 | ||
| suction pressure (MPa) | 5.4 | ||
| diameter (mm) | 80 | ||
| Brief introduction of function | It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. | ||
Vacuum Suction: A powerful vacuum pump is used to create a negative pressure in the tank, allowing for the efficient suction and transport of sewage, sludge, fecal matter, muddy water, and other liquid waste from septic tanks, cesspits, manholes, and drains.
High-Pressure Cleaning (Jetting): A high-pressure water pump and hose reel system use a powerful, focused stream of water to break down hardened blockages (grease, debris, roots) and scour the inner walls of sewer and drainage pipes.
II. Chassis and Engine (Shacman Base)
Chassis Models: Common Shacman chassis used include the F3000 and H3000 series.
Drive Type: Typically 6*4 (heavy-duty) or 4*2 (medium-duty).
Engine: Usually a Weichai diesel engine.
Horsepower (HP): Ranges widely, common examples are 290 HP to 380 HP or more.
Emission Standard: Varies by market, often Euro II to Euro VI.
Transmission: Manual, with multiple gears (e.g., 9-speed or 10-speed).
Steering: Left-Hand Drive (LHD) or Right-Hand Drive (RHD) options.
Brakes: Full air brake system.
III. Superstructure and Tank Specifications
Tank Configuration: Often a split tank design for combined units, separating the Sewage/Sludge Tank from the Clean Water Tank.
Total Capacity: Tanks can range from 10,000 to 25,000 liters (approx. 10 cbm to 25 cbm).
Tank Volume Examples (Combined Truck):
Tank Material: High-quality carbon steel (e.g., 5mm to 8mm thickness) is standard, with stainless steel optional.
Discharge System: The tank is typically cylindrical and can be hydraulically lifted (tipped) to an angle of 40∘ to 45 ∘ or complete self-unloading. The rear door opens and closes hydraulically for quick discharge.
Septic Tank Cleaning: The truck is highly effective for cleaning residential and industrial septic tanks, removing fecal and sewage waste from these systems.
Sewer Cleaning: The truck is ideal for municipal sewer systems, handling both sewage suction and high-pressure jetting for clearing blocked pipelines.
Waste Management: It’s widely used in waste disposal services and industrial waste removal, particularly for wastewater and sludge disposal.
Emergency Waste Removal: Useful in flooded areas, natural disasters, and hazardous spill clean-ups where large amounts of water or waste need to be quickly removed.
Pipe & Drain Cleaning: The high-pressure jetting system is useful for cleaning and clearing drain lines, industrial pipes, and sewage pipes of debris, grease, and blockages.
Special-Purpose Vehicles: Chengli is known for producing a vast range (over 800 types) of special vehicles for various industries. Their leading products include:
Company Profile:
History:
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Chengli Special Automobile Co., Ltd. is a major Chinese manufacturer of specialized vehicles, and the core subsidiary of the Chengli Automobile Group (CLW Group).
Here is an overview of the company:
Core Business and Products:
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
