CLW 4x2 Heavy Duty Dump Truck 15-18 Ton with Cummins Engine & KOTAI Tipper Body for El Salvador

Delivery Case & Technical Specifications: CLW Proprietary Chassis Dump Truck

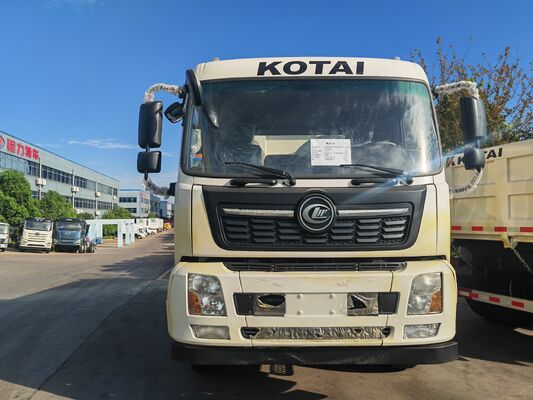

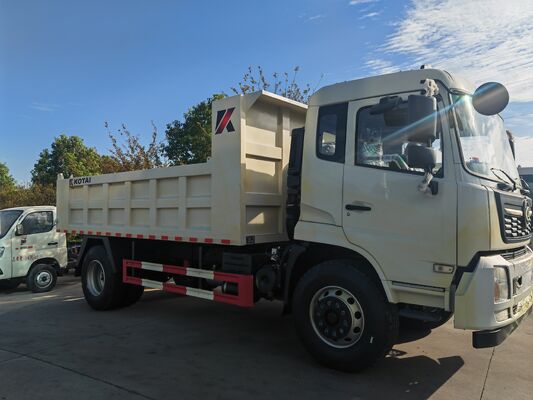

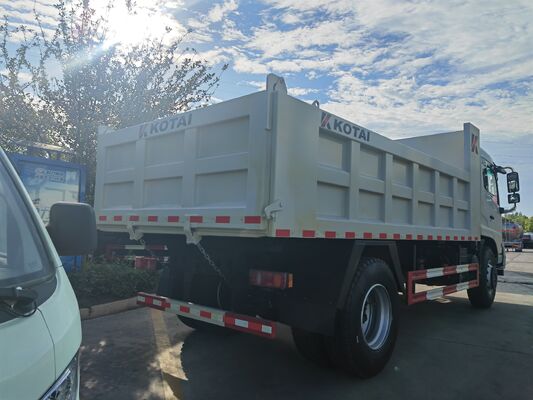

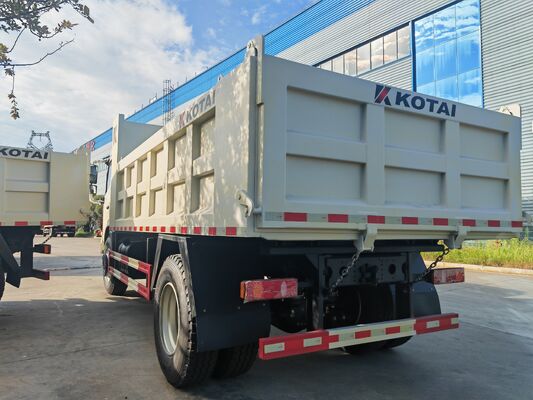

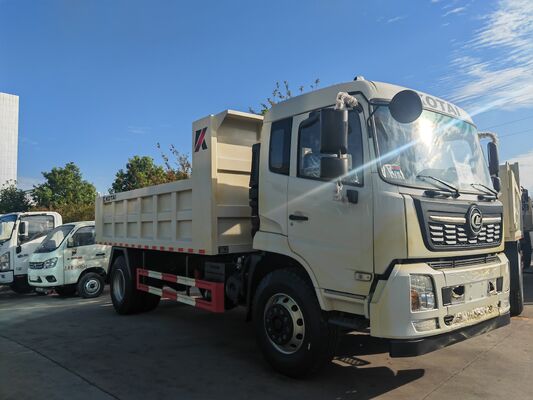

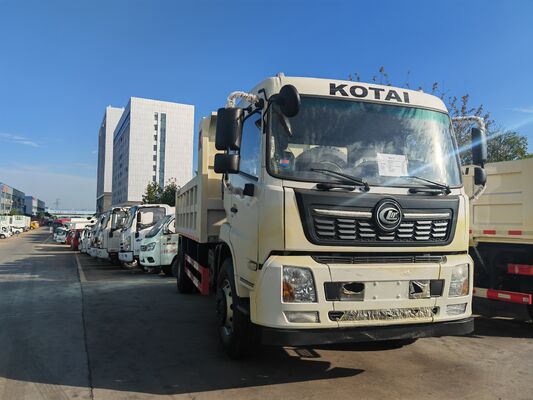

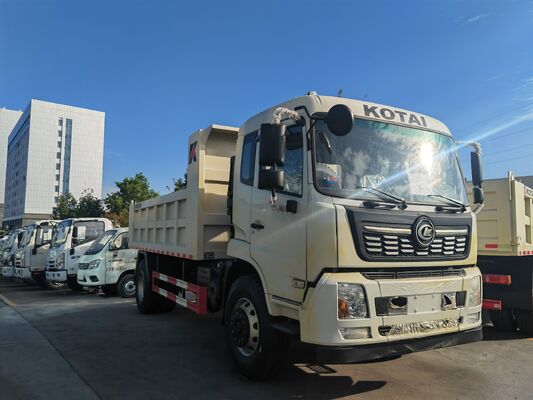

The CLW Heavy-Duty Dump Truck is a 4×2 left-hand-drive construction dump truck equipped with a Cummins diesel engine and reinforced KOTAI steel dump body. This unit has a tare weight of 7,290 kg, overall dimensions of 7,500 × 2,580 × 2,950 mm, and a rated GVWR of 15,000–18,000 kg. The vehicle was factory assembled and tested by CLW before shipment to Acajutla, El Salvador.

Part 1: Export Delivery Case

Product Name: CLW Heavy-Duty Dump Truck

Chassis Brand: CLW Proprietary Chassis

Engine Power: High-Torque Cummins Engine

Body Structure: KOTAI Custom Reinforced Dump Box

Destination Port / Country: Acajutla, El Salvador

Vessel Name: ZHONG CHANG QI SHENG V.A2646

Bill of Lading (B/L) No.: QSTJACA47

Unit Identification No.: QSTJACA47-7

Overall Dimensions (L* W* H): 7.5*m* 2.58*m* 2.95*m

Gross Unit Weight: 7,290 kg

Delivery Status: Fully assembled on CLW chassis, factory tested, port marked, and ready for global shipment.

Export Case Summary: CLW delivered a heavy-duty 4x2 dump truck equipped with a Cummins diesel engine and reinforced KOTAI dump body for shipment to Acajutla, El Salvador.

Part 2: Technical Parameters

Part 3: Why Choose CLW Proprietary Chassis & Cummins Engine?

1. In-House CLW Chassis Integration

• Structural Strength: Engineered specifically for heavy-duty payload distribution, preventing frame twist under off-road conditions.
• Seamless Compatibility: Factory-matched mounting points for the dump body and hydraulic system eliminate aftermarket structural strain.

2. Cummins Engine Performance

• Reliability & Power: Cummins powertrains deliver high torque at low RPMs, ideal for severe mining, haulage, and construction environments.
• Global Fuel Efficiency: Advanced injection technology optimizes fuel consumption while meeting international emission standards.

3. Complete Spare Parts & After-Sales Guarantee

• Full Spare Parts Supply Chain: From Cummins engine components (filters, injectors, gaskets) to CLW chassis parts (axles, leaf springs, hydraulic valves), every component is supplied directly from our inventory.
• Factory After-Sales Warranty: Complete technical backup, quick-dispatch replacement parts via courier, and long-term service guarantees to ensure operational uptime.

Part 4: Global Buyer Guide

1. Customizing Your Dump Truck

• Engine Selection: Choose the Cummins HP rating according to operating conditions (flatter city haulage vs. steep quarry routes).
• Steel Selection: High-tensile Q345/NM400 steel for high-impact material handling (rocks, demolition rubble).

2. Delivery & Inspection

• Anti-Corrosion Prep: Industrial anti-rust coating applied over the CLW chassis and body prior to RORO/Bulk vessel ocean loading.
• Verification: Factory photos, VIN tags, engine numbers, and shipping marks confirmed prior to dispatch.

Part 5: Operations & Maintenance Guide

• Cummins Engine Maintenance: Replace engine oil, oil filters, and fuel filters at recommended initial intervals. Use genuine Cummins replacement filters.
• Hydraulic System Upkeep: Check hydraulic oil levels daily; change oil after the first 50 operating hours, then annually.
• CLW Chassis Lubrication: Grease chassis pivot points, leaf spring shackles, steering knuckles, and tailgate hinges every 15 days.

Safety Verification: Always use the mechanical safety prop bar when performing maintenance under an elevated dump box.

Part 6: Frequently Asked Questions (FAQ)

1. Q1: What are the primary advantages of CLW's self-manufactured chassis?
   CLW proprietary chassis are designed specifically for heavy special vehicle applications, offering reinforced frame rails, optimized weight distribution, and lower maintenance costs compared to standard highway chassis.
2. Q2: Is the Cummins engine covered under global support?
   Yes, Cummins engines feature international service support, and CLW supplies original Cummins maintenance components directly.
3. Q3: Can I order a full set of spare parts with the vehicle?
   Yes. We can package a 1-year or 2-year wearable spare parts kit (filters, brake pads, hydraulic seals, lights) inside the cab or cargo bed upon delivery.
4. Q4: What after-sales warranty is provided for the CLW chassis and engine?
   We provide a comprehensive warranty covering major structural chassis components, the Cummins engine assembly, gearbox, and hydraulic hoist systems.
5. Q5: How do you protect the CLW chassis from rust during ocean transit?
   All chassis frame rails, axles, and undercarriage components are treated with dynamic anti-salt spray wax coating prior to port delivery.
6. Q6: Are Right-Hand Drive (RHD) options available for CLW chassis models?
   Yes, CLW chassis can be manufactured in both Left-Hand Drive (LHD) and Right-Hand Drive (RHD) configurations.
7. Q7: How easily can I source replacement hydraulic cylinders or pumps?
   CLW keeps complete stocks of all hydraulic cylinders, pumps, and control valves, available for fast international express shipment.
8. Q8: What documents are provided for vehicle registration?
   We provide the full export set: Commercial Invoice, Packing List, Original Bill of Lading (B/L), Certificate of Origin, and Factory Inspection Certificates.
9. Q9: Can the dump box size be adjusted on the CLW chassis?
   Yes, box volume and side wall height can be customized based on payload requirements and local axle-load regulations.
10. Q10: What is the typical production timeline for CLW chassis dump trucks?
    Standard production takes approximately 20 to 30 working days from deposit confirmation to final inspection.
