| Brand Name: | Dongfeng |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

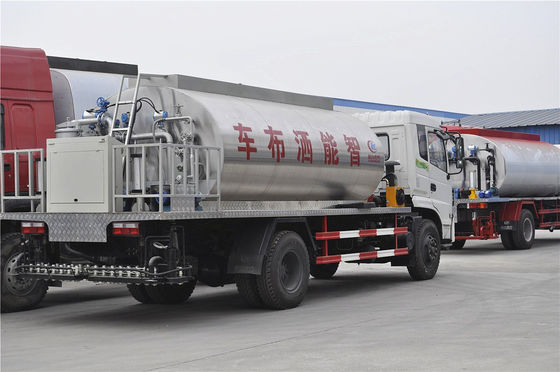

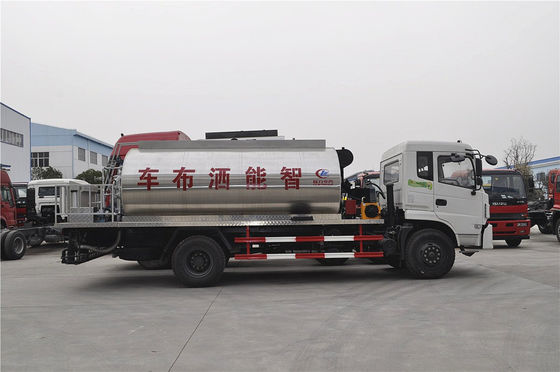

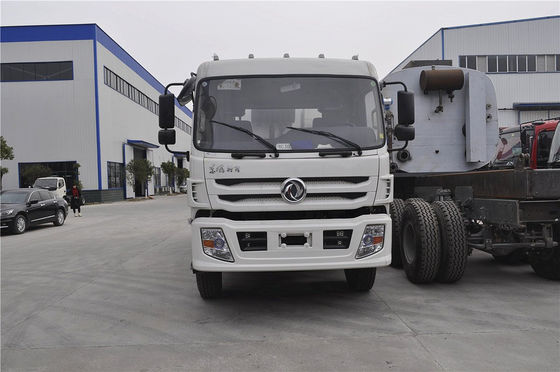

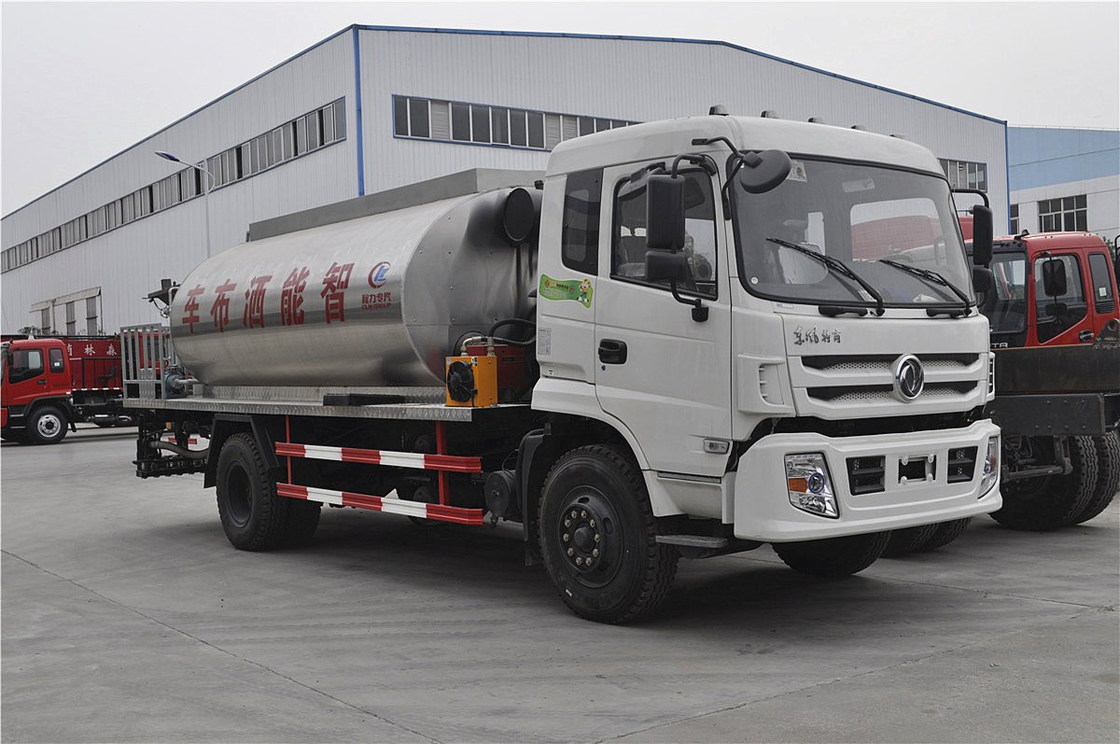

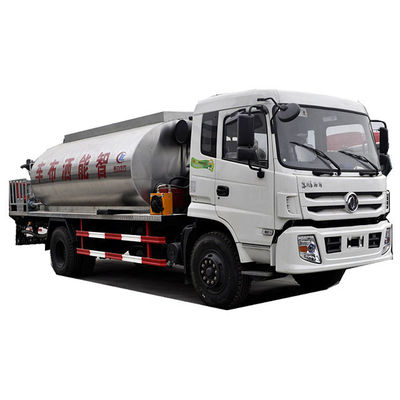

Dongfeng 8000 liters asphalt distribution truck, 8 ton new asphalt pavement maintenance truck
Dongfeng 8000 Liters Asphalt Distribution Truck (also known as a Bitumen Sprayer Truck), which is a "semi-automatic asphalt paving truck" in terms of its computer-controlled spraying system.
Bitumen spray truck, also called asphalt sprayer or asphalt paving truck, is specially designed and produced for transporting or spraying liquid asphalt (Including hot asphalt, emulsified asphalt and residue), in addition it can also supply loose asphalt binder to the soil, the construction of asphalt stabilized soil pavement or pavement base. Bitumen spray truck is a black road construction machinery, one of the main equipment for the construction of road, city roads, airports and port terminals.
Dongfeng 8000 Liters Asphalt Distribution Truck, Semi Automatic Asphalt Paving Truck Technical sheet:
| Driving Type | 4 * 2 | Left-Hand Drive (LHD) or Right-Hand Drive (RHD) available. |
| Engine | Cummins (B170-33, B190-33, or similar) | Diesel, Turbocharged. Horsepower typically 170 HP to 190 HP. |
| Emission Standard | Euro III, Euro IV, or Euro V/VI | Varies based on market requirements. |
| Gear Box | Manual transmission (6 or 8 Forward speeds, 1 Reverse) | |
| Overall Dimensions | 8,200 * 2,500 * 3,050 mm (L x W x H) | Dimensions vary slightly by body builder. |
| GVW (Gross Vehicle Weight) | 15,000 kg to 16,000 kg | |
| Wheelbase | 3,950 mm to 4,500 mm | |
| Tires | 9.00 20 or 10.00 20 | |
| Specification | Details | Notes |
|---|---|---|
| Tank Capacity | 8,000 Liters | Volume for asphalt/bitumen. |
| Tank Material | High-quality carbon steel or stainless steel | Designed to withstand high temperatures. |
| Insulation | 50 mm to 80 mm Insulation Layer (Rock Wool) | Covered with galvanized or stainless steel sheet. |
| Static Insulation Index | Critical for maintaining asphalt temperature during transport. | |
| Heating Method | Thermal Oil Heating System (Internal heat-transfer oil) | The primary method for uniform heating. |
| Burner | High-Efficiency Diesel Burner (Italian Riello brand) | Provides rapid and stable heating. |
| Heating Rate | Used to raise the material to application temperature. | |
| Specification | Details | Notes |
| Control System | Intelligent / Semi-Automatic PLC Control | Computerized system controls spray rate and nozzle activation. |
| Operation Modes | Automatic (In-cab control) and Manual (Rear platform control) | Allows a single operator to manage spraying from the cab. |
| Spraying Rate | 0.2 to 4.0 | Controlled by vehicle speed sensor and asphalt pump. |
| Spraying Error | Essential for consistent road quality. | |
| Spraying Medium | Hot Asphalt, Emulsified Asphalt, Modified Asphalt (SBS, etc.) | Versatility for different road applications. |
| Spraying Width | 4,500 mm to 6,000 mm (Extendable) | Foldable spray bar with multiple sections. |
| Nozzles | 32 to 36 Nozzles (Individually Controlled) | Intelligent system allows precise adjustment of spray width. |
| Asphalt Pump | High-Capacity Gear or Shuttle Pump (450-950 | Ensures proper flow and pressure. |
| Power System | Auxiliary Power Unit (APU) or PTO-driven Hydraulic System | Often includes a separate generator (6 KW) for the control system. |
| Cleaning System | High-pressure air flushing or cleaning agent system | For clearing the pump, pipelines, and nozzles after use. |
Main Specifications
| Main Specifications | |||
| Product Brand | Dongfeng | The first Batch | 287 |
| Product Name | Asphalt spraying | Product Model | CLW5161GLQT4 |
| Total Weight (Kg) | 15990 | Volume(m3) | 8.5 |
| Rated load(Kg) | 7300 | Overall Dimension(mm) | 7760*2500*2880 |
| Curb Weight(Kg) | 8495 | Cargo Compartment Size(mm) | ** |
| Cab seats (man) | 3people | Payload utilization factor | |
| Approach angle/departure angle(°) | 32/15 | Front overhang/Rear overhang(mm) | 1250/2560 |
| Number of axles | 2 | Wheelbase(mm) | 4500,4700,4950, 4800,5100,3950 |
| Axle Load(Kg) | 5995/9995 | Maximum Speed(Km/h) | 88 |
| Chassis Technical Parameters | |||
| Chassis Model | EQ1160GKJ1 | Chassis Name | Truck Chassis |
| Brand Name | DongFeng | Manufacturingenterprise | Dongfeng motor co., LTD |
| OverallDimension(mm) | 7650,8200,8900,8750, 9000,7370*2480*2810 |
Number of wheels | 6 |
| Approach angle/ Departure angle(°) | 32/26,32/24,32/22,28/28, 28/24,28/20,28/25 |
Wheel specification | 10.00-20 16PR,10.00R20,9.00-20 |
| Plate spring count | 9/10+8 | Front gauge(mm) | 1940,1900,1810 |
| Fuel Species | Diesel | Track rear(mm) | 1860,1800 |
| Emission standard | GB3847-2005,GB17691-2005 Euro III | ||
| Engine type | Engine manufacturing enterprise | Displacement(ml) | Power(Kw) |
| ISB170 30 ISB190 30 |
Dongfeng engine co., LTD Dongfeng engine co., LTD |
5900 6280 |
125 140 |
Dongfeng 8000 liters asphalt distribution truck, 8 ton new asphalt pavement maintenance truck made in china Application:
Operator Input: The operator sets the desired application rate and the spraying width (by activating specific nozzles) via a touch screen in the cab.
Speed Detection: A German-made high-precision speed sensor detects the truck's forward speed.
Calculation: The PLC controller instantly calculates the required volumetric flow rate for the asphalt pump.
Automatic Adjustment: The system uses a proportional hydraulic valve to regulate the asphalt pump's speed, ensuring that the set application rate remains constant regardless of small fluctuations in the truck's speed.
Asphalt distribution truck is widely used in highway construction and highway maintenance engineering. It can be used for the different pavements of upper and lower sealing layer, prime coat, waterproof layer, adhesive layer, asphalt surface treatment, bituminous penetration pavement, and fog sealing layer and other construction. It also can be used for transportation of liquid asphalt or other heavy oils.
About Chengli Special Automobile Co., Ltd
Full Name: Chengli Special Automobile Co., Ltd.
Parent Company: CLW Group (Chengli Automobile Group Co., Ltd.).
Establishment: Founded in September 2004.
Headquarters/Location: Suizhou City, Hubei Province, China. Suizhou is famously known as the "Capital of China's Special Purpose Vehicles."
Scale: The company is a massive operation, often ranked among the Top 500 Chinese Private Enterprises. It boasts assets in the billions of RMB, covers an enormous industrial park, and employs thousands of people.
Key Designations: It is designated by the Chinese government as a large-scale manufacturer for various special vehicles and holds numerous certifications (e.g., ISO 9001, 3C, ASME, and GJB9001B-2009 National Military Standard Certification).
Established in Sep. 2004, Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB (14 millions US Dollars) and total capital 6,000,000,000 (840 millions US Dollars).
Chengli Special Automobile Co., Ltd Overseas Market
Chengli Special Automobile Co., Ltd. has a very strong and broad presence in the overseas market, exporting its wide range of specialized vehicles to numerous countries across multiple continents.
Here is an overview of their overseas market reach:
Global Reach
Chengli reports exporting their special trucks to over 50 to 80 countries and regions globally. Their primary international markets are concentrated in high-growth, developing regions.
Key Geographic Markets
The company's exports are primarily focused on:
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing.
