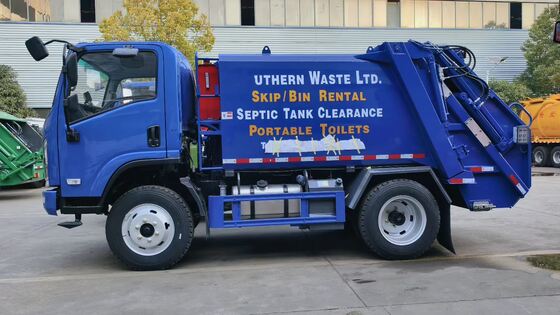

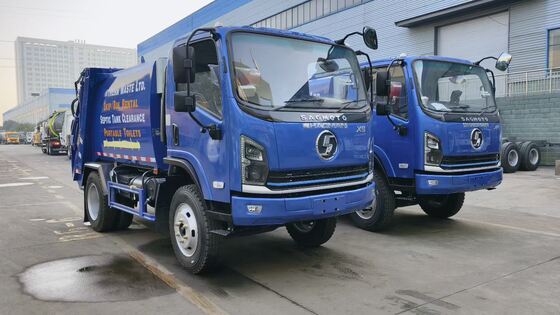

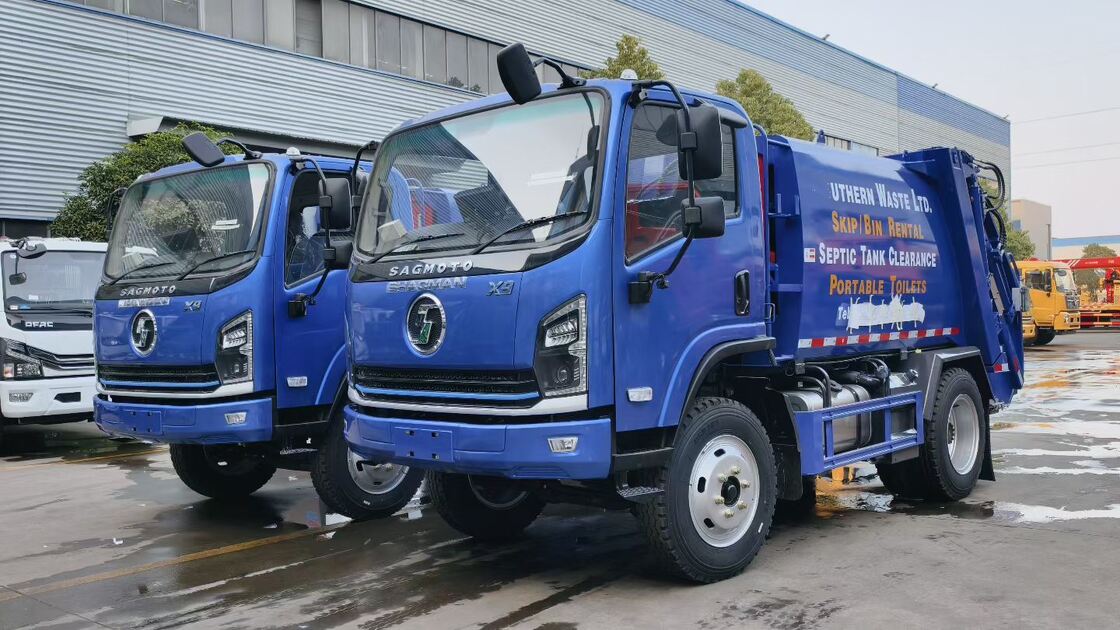

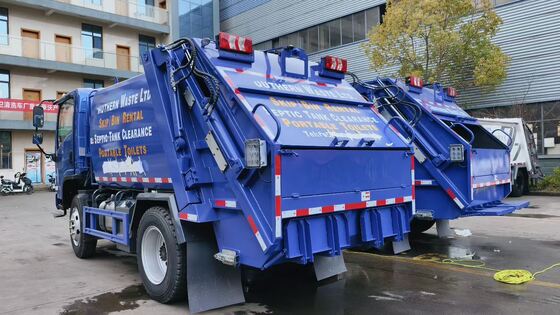

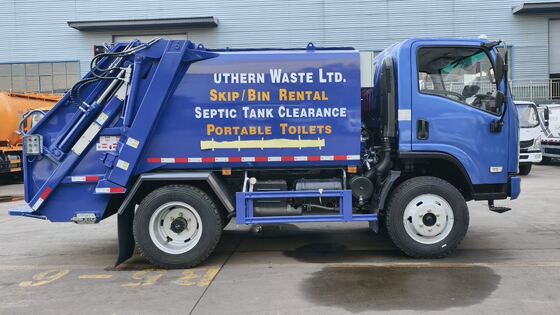

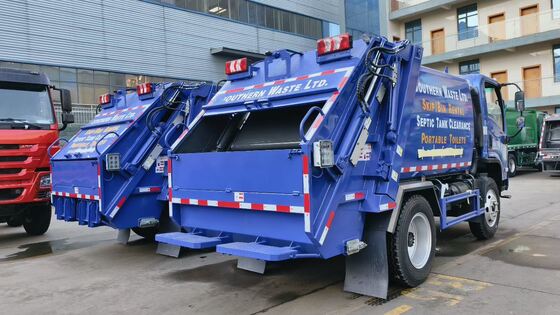

Shacman X9 Trash Compressed Garbage Truck Camion Poubelle Waste Collector Compactor

Efficient Waste Collection and Compaction

• High-Volume Collection: It gathers household, commercial, and sometimes industrial solid waste.
• Compression System: The hydraulic compression mechanism (often a rear-loader with a packer blade) compresses the waste, significantly reducing its volume (high compression ratio, often >2:1). This allows the truck to carry two to two-and-a-half times the amount of uncompressed waste, maximizing payload and reducing the number of trips to the disposal site.
• Automatic Loading and Operation: Many models feature automated or semi-automated loading systems (like mechanisms for lifting and emptying standard garbage bins/carts) which improve efficiency and reduce the physical labor and risk of injury for sanitation workers.

2. Hygienic and Environmentally Sound Transport

• Sealed Containment: The garbage compartment is fully sealed (hermetic), which is critical for preventing secondary pollution.
• Sewage Collection: Wastewater generated during the compression process is channeled into a dedicated sewage tank, preventing liquids from leaking onto the streets during collection and transit.
• Odor and Pest Control: The sealed body helps contain odors and prevents the spread of pests.

3. Common Usage Environments

The truck is an essential component of urban sanitation and waste management, used in:

• Residential Communities: Collecting daily household waste from homes and apartment complexes.
• Urban Districts and Streets: Clearing waste from city centers and along major roads.
• Commercial Establishments: Handling waste from shopping centers, hotels, restaurants, and office buildings.
• Industrial and Mining Areas: Used in large factories or mining sites for centralized waste transport.
• Construction Sites: Sometimes used for the collection and transport of construction debris that can be compacted.

Summary of Benefits

The Sinotruk Howo Compactor Garbage Truck is valued for:

• Efficiency: Collecting more waste per trip due to compaction.
• Hygiene & Environment: Preventing pollution with a sealed body and sewage tank.
• Maneuverability (depending on model size): Smaller versions can navigate narrow streets and alleys common in urban and residential areas.
• Safety: Equipped with various safety features like emergency stop buttons and often optional rearview systems.

• Compaction Ratio: Typically 1:2.5 to 1:4 (meaning the garbage volume is reduced significantly).
• Loading Method: Rear-Loading (Waste is dumped into a hopper at the rear).
• Loading Mechanism: Hydraulic system with a push-plate and scraper to pack the waste against the main body wall.
• Loading Cycle Time: Fast cycle times, typically ≤40 seconds or less.
• Discharging: Hydraulic Ejection Plate (self-discharging via a horizontal push motion).
• Control System: Dual control options for flexibility and safety:
• Electrical/Automatic Control (PLC): For one-button automatic cycle operation.
• Manual Hydraulic Control: For emergency operation and maintenance.
• Bin Lifter Device: The rear hopper is commonly fitted with a universal or customizable lifter to handle various standard waste bins (e.g., 120L, 240L, 660L, or 1100L plastic/metal bins).
• Sewage Collection: Includes a sewage water collection tank at the bottom of the body to prevent liquid waste from leaking and causing secondary pollution.

• Body Material: High-strength Manganese Steel (often Q345 grade) for corrosion resistance and durability against the pressure of compaction.
• Hydraulic System: High working pressure (e.g., 16-20 MPa) with reliable components (pumps, valves, cylinders) for strong compression force.
• Safety: Equipped with emergency stop buttons, safety railing, and warning lights.
• Driver Comfort: The HOWO cab often includes a standard cab with seating for 2-3 persons and essential features like Air Conditioning (A/C).

Parent Company: It is a core subsidiary of the Chengli Automobile Group (CLW Group), which is a diversified group involved in various automotive-related businesses.

Establishment: The company was established in 2004.

Scale: It is noted as one of the largest special automobile manufacturers in Central China, with a large-scale operation, considerable production capacity, and thousands of employees.

Product Range: Chengli specializes in the research, development, manufacturing, and sale of a vast range of special-purpose vehicles (over 800 types), including:

• Sanitation Vehicles: Garbage trucks (compactor, hook lift, skip loader), water sprinkler trucks, road sweeper trucks, vacuum sewage suction trucks.
• Tank Trucks: Fuel tank trucks, water tank trucks, chemical tank trucks, LPG carriers.
• Engineering & Construction Vehicles: Dump trucks, truck-mounted cranes (boom trucks), concrete mixer trucks, asphalt distributor trucks, aerial work platform (manlift) trucks.
• Rescue & Emergency Vehicles: Fire trucks, ambulances, wrecker tow trucks.
• Box & Van Vehicles: Refrigerated trucks, cargo trucks, LED advertising trucks.
• Other: Semi-trailers, AWD off-road trucks, and new-energy/electric vehicle variants.

Market: The company's products are sold across China and exported to numerous countries and regions in Asia, Africa, the Middle East, South America, and Europe.

Chassis Partners: They build their specialized vehicles on chassis from various major truck brands, including DONGFENG, ISUZU, FOTON, SINOTRUK (HOWO), SHACMAN, JAC, FAW, and others.
