| Brand Name: | Sinotruk HOWO |
| Model Number: | CLW5180TQZD6 |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

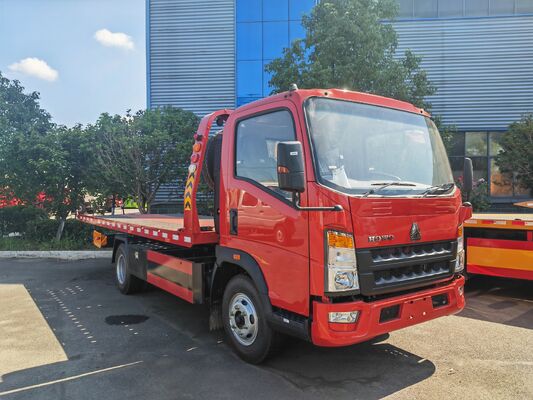

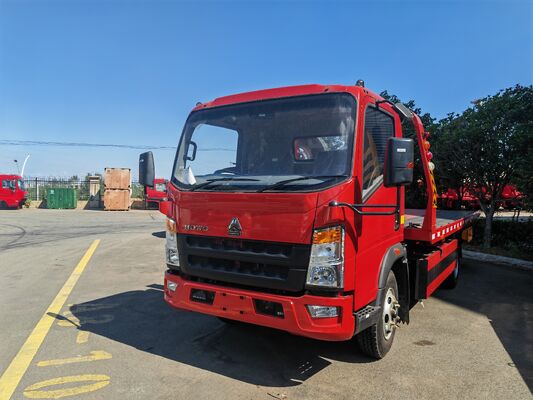

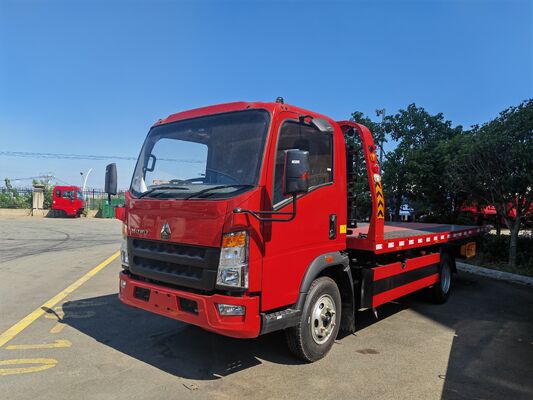

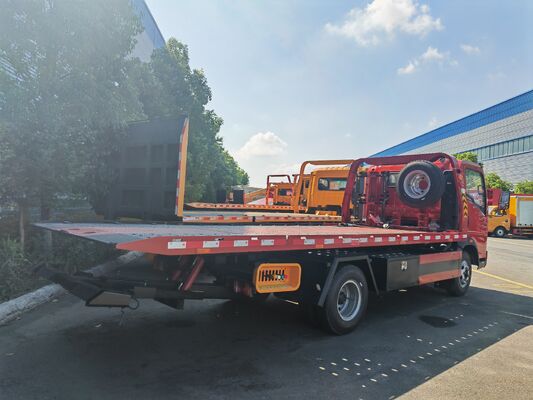

SINOTRUK HOWO 4x2 Flatbed Wrecker Truck (Tow Truck)
Heavy-Duty Roadside Rescue & Transport Vehicle
Vehicle Overview
The HOWO 4x2 Flatbed Wrecker Truck is a versatile and heavy-duty towing vehicle engineered for breakdown recovery, accident response, and vehicle transportation. Built on the rugged SINOTRUK HOWO chassis, it combines high payload capacity, excellent ground clearance, and reliable hydraulic systems to perform in demanding road and climate conditions.
Equipped with a hydraulic sliding flatbed and a rear under-lift system, this truck features a "1-to-2" towing capability, allowing operators to carry one vehicle on the flatbed while towing a second vehicle behind it, effectively doubling operational efficiency.
Key Technical Specifications & Features
Chassis & Powertrain: Powered by a high-torque, turbo-charged diesel engine (Yuchai / Weichai / Yunnei options) paired with a manual multi-speed transmission. The chassis frame is constructed from high-tensile steel, offering optimal bending and torsional resistance.
Fuel & Emission System: Configured with Euro II / Euro III emissions (mechanical/low-emission fuel injection) to ensure maximum tolerance toward varying diesel fuel qualities in emerging markets.

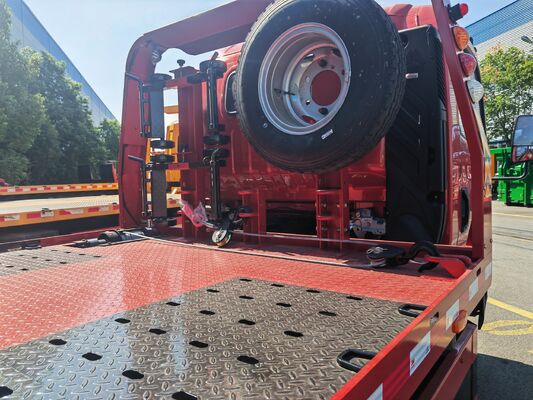

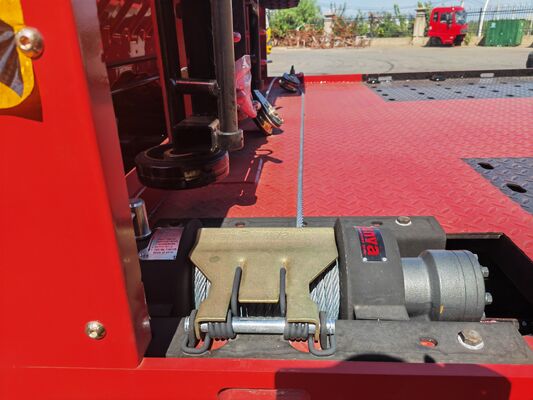

Hydraulic Flatbed & Winch: Features an extra-wide, high-strength checkered steel platform with an anti-slip surface and multiple tie-down slots. A 4-ton planetary hydraulic winch (21meter steel wire rope) allows smooth recovery of disabled or off-road vehicles.

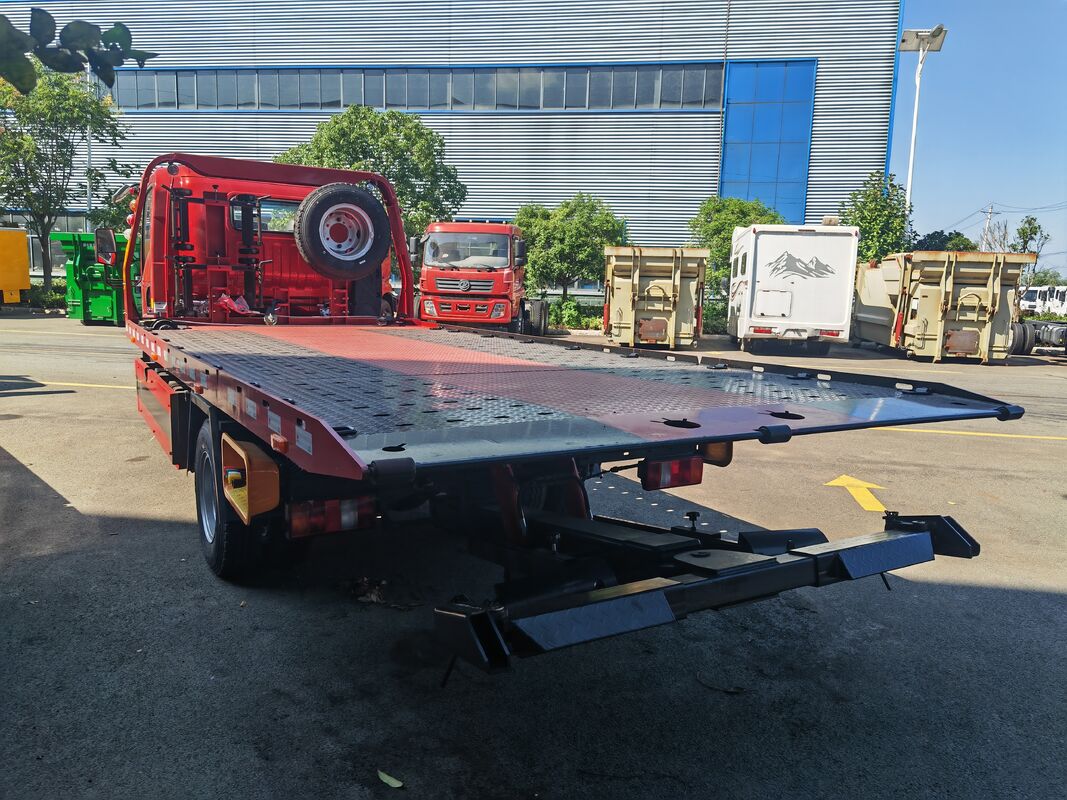

Rear Under-Lift System: The hydraulically extendable rear towing arm enables quick wheel-lift operations for disabled vehicles up to 2,500 kg.

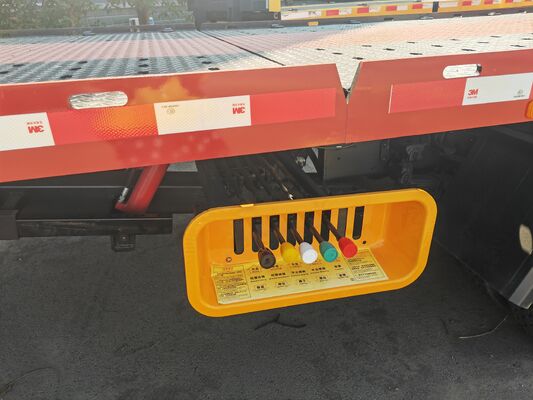

User-Friendly Operation: Equipped with dual-side manual hydraulic control levers with direction instruction plates, allowing safe operation from either side of the truck.
Standard Export Configuration Package
Safety & Warning: High-visibility yellow LED beacon light bar mounted on the gantry, rear working floodlights for night operations, and reflective safety striping.
Vehicle Fixation Kit: 4 x heavy-duty ratchet tire tie-down straps, wheel chocks, and safety chains.
Auxiliary Equipment: 2 x auxiliary trolley wheels (dollies) for transporting vehicles with locked or damaged wheels.
Storage & Protection: Side-mounted lockable steel toolbox, heavy-duty rear spare tire carrier, and anti-corrosion primer coating with durable polyurethane finish paint.
SINOTRUK HOWO 4x2 Flatbed Wrecker Truck (Tow Truck) Technical Data
| Item / Parameter | Technical Specification | Remarks & Features |
|---|---|---|
| 1. Overall Vehicle Parameters | ||
| Drive Type | 4x2 (Left Hand Drive / RHD Optional) | Suitable for regional road regulations |
| Overall Dimensions (L×W×H) | 7,550 * 2,350 * 2,550mm | Compact structure, easy maneuvering |
| Gross Vehicle Weight (GVW) | 7,360kg / 8,280kg | Heavy-duty chassis frame |
| Curb Weight | 4,450kg | Optimized payload ratio |
| Payload Capacity | 3,000kg - 4,000kg | Supports sedan, SUV, light commercial vehicles |
| Wheelbase | 3,360mm / 3,800mm | High stability during towing |
| Max. Driving Speed | 95km/h | Efficient highway transport |
| 2. Chassis & Powertrain Specs | ||
| Chassis Brand | SINOTRUK HOWO Light Truck Chassis | High strength steel frame |
| Engine Options | YUCHAI / WEICHAI / YUNNEI Diesel Engine | In-line 4 Cylinder, Turbocharged |
| Engine Power | 116HP - 140HP (85kW - 103kW) | Strong low-speed torque for heavy drag |
| Emission Standard | Euro II / Euro III | High fuel tolerance for local diesel quality |
| Transmission | Manual 5-Speed / 6-Speed Forward + 1 Reverse | Smooth gear shift, durable clutch |
| Brake System | Air Brake / Hydraulic Brake + Exhaust Brake | Reliable braking on slopes |
| Tire Specification | 7.00R16 / 7.50R16 Steel Wire Radial Tires | 6 + 1 Spare tire with carrier |
| 3. Wrecker Upper Body Specs | ||
| Flatbed Dimensions (L×W) | 5,600 * 2,300mm | Large platform for various vehicles |
| Flatbed Max. Load | 3,000kg - 4,000kg | High strength steel structure |
| Flatbed Surface | Checkered Steel Plate (Anti-slip) | Multiple binding holes for safety strap |
| Min. Tilting Angle | 8degree to 10degree | Easy loading for low ground clearance cars |
| Hydraulic Winch | 1 x 4,000kg (4Ton) Planetary Winch | Smooth pulling, automatic braking |
| Wire Rope Length / Dia. | 21meters / Ø 10mm | High tensile steel wire |
| Rear Under-lift Rating | Max. Lift Capacity: 2,000 - 2,500kg | Extendable & tiltable under-lift arm |
| Towing Capability | 1-to-2 Towing (Flatbed + Under-lift) | Doubles operational efficiency |
| Control System | Dual-side Manual Hydraulic Control Levers | Labeled valves, easy maintenance |
| 4. Standard Accessories | ||
| Hydraulic Components | Imported High-pressure Multi-way Valves | Double-acting hydraulic cylinders |
| Vehicle Fixation | 4 x Binding Straps, Wheel Chocks, Chains | Complete safety binding kit |
| Auxiliary Wheels | 2 x Auxiliary Trolley Wheels (Dollies) | For locked-wheel vehicle transport |
| Lighting & Warning | LED Yellow Beacon Light Bar + Work Lights | High visibility for night rescue |
| Toolbox & Storage | Lockable Steel Toolbox + Spare Tire Rack | Side-mounted weather-proof box |
